Hub and Power Supply Setup

The hub and power supply can mount on the grid in a Linear
structured wiring enclosure or to a universal mounting bracket
(Model H275). The bracket is included in the Model ENC-KIT-M
installation kit.

Structured Wiring Enclosure

If the hub and power supply will be mounted in a structured wiring
enclosure, follow these steps:
1. Determine a location for the structured wiring enclosure. Be sure power is
available near the location to wire an outlet box in the enclosure.
2. Install a J-box in the enclosure and have a
power to the J-box.
3. Install an outlet in the J-box and install an outlet cover plate.
➜ WARNING: Do not connect the power supply to the AC line
until after the installation is complete.

Mounting Bracket Installation

If the hub and power supply will be mounted on a Model H275
mounting bracket, follow these steps:
1. Determine a location for the mounting bracket. Be sure power is available
near the location to wire an outlet box next to the mounting bracket
location.
2. Use four screws to mount the H275 bracket on a suitable mounting
surface.
3. Have a licensed electrician install an outlet in a J-box near the mounting
bracket. Install an outlet cover plate.
➜ WARNING: Do not connect the power supply to the AC line
until after the installation is complete.

Hub and Power Supply Installation

The hub and power supply mount to the grid holes in the structured
wiring enclosure or on the universal mounting bracket.
1. Insert the hub into a set of grid mounting holes. Secure the hub with the
snap lock retainer.
2. Insert the power supply into a set of grid mounting holes. Secure the power
supply with the snap lock retainer.
3. Connect the power supply's DC output cable to the hub. The cable has a
push-on terminal block that connects to the hub's POWER connector.

Zone Pairing

Zone pairing is optional. It allows simultaneous control of two or
more speaker zones. A typical use would be in large rooms with
multiple keypads and speakers. Paired zones can be controlled
from any keypad in the pair, each keypad and speaker zone will
perform identically.
Zone pairing is controlled by the SETUP switch on each hub.
1. Switch positions 5-8 select which zones to pair.
2. To pair two or more speaker zones, set the
for any of the four speaker zones.
SWITCH #
5
6
7
8
4
licensed electrician route
SETUP switch position to ON
SPEAKER ZONE
ZONE 1
ZONE 2
ZONE 3
ZONE 4

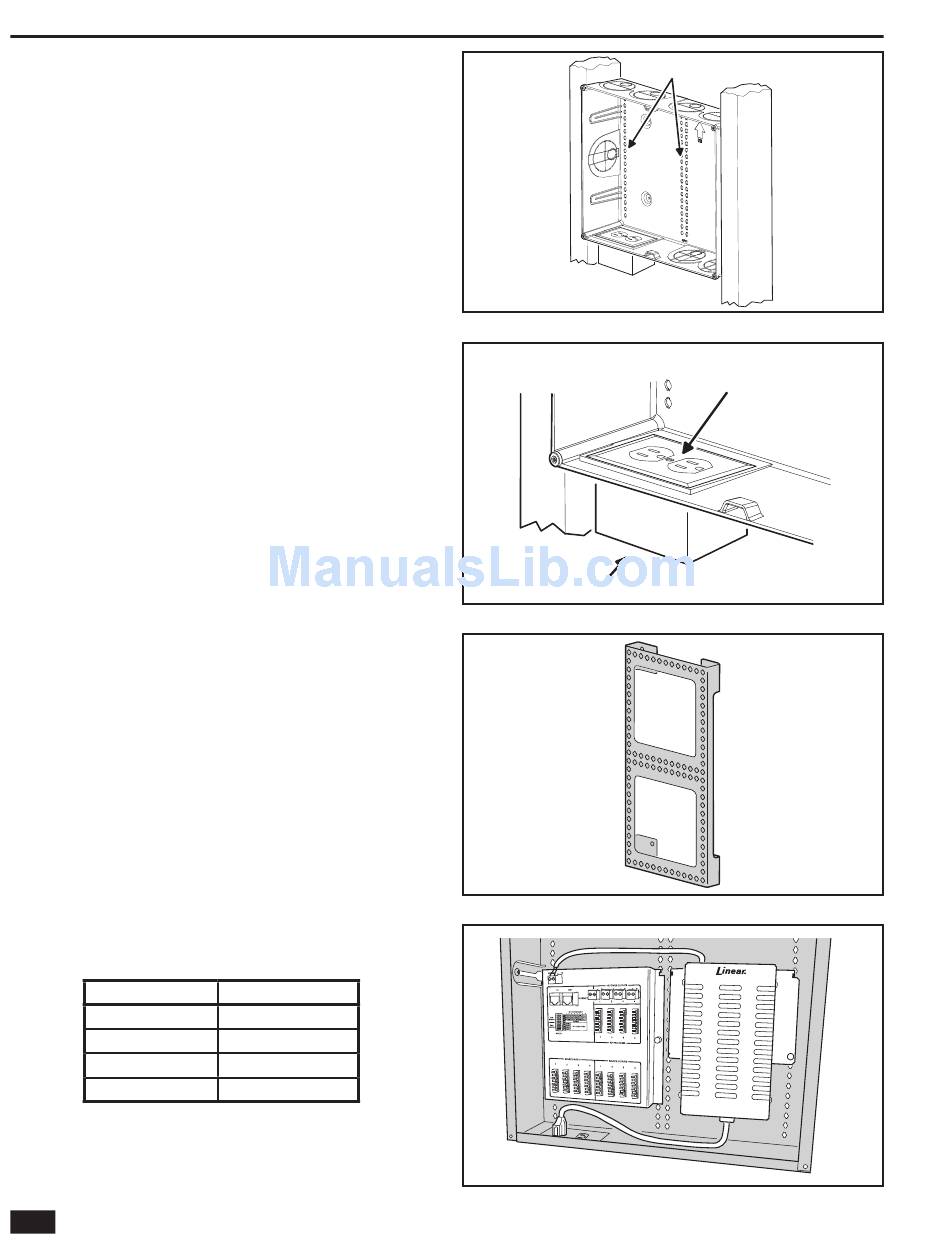

Figure 2. Structured Wiring Enclosure Mounting
J-BOX
Figure 3. J-box Installed in Enclosure for AC Power
Figure 4. H275 Universal Mounting Bracket
Figure 5. Hub and Power Supply Installation in Cabinet
MOUNTING
GRID
OUTLET
INSTALLED
IN J-BOX
