- Page 1 1:8 Distribution Amplifier Model # HDMI-DA-1X8 U S E R M A N U A L www.linearcorp.com...
- Page 3 6:30 AM - 4:30 PM PST Monday through Friday. Email: techsupport@linearcorp.com Website: www.linearcorp.com Notice Linear LLC reserves the right to make changes in the hardware, packaging and any accompanying documentation without prior written notice. © 2008 Linear LLC, All Rights Reserved...
-
Page 4: Table Of Contents
TABLE OF CONTENTS Introduction / Operation Notes Features Panel Descriptions Connecting and Operating the 1:8 Distribution Amplifier for HDMI For HDMI / Application Diagram Rack Ears Installation Diagram Wiring Diagram Specifications Warranty... -
Page 5: Introduction / Operation Notes

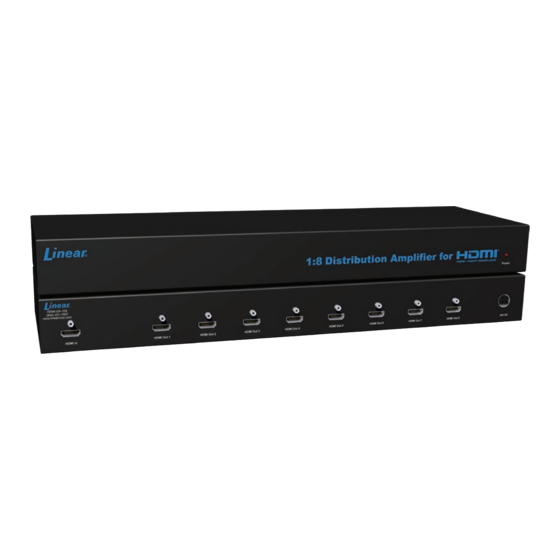

INTRODUCTION The Linear 1:8 Distribution Amplifier for HDMI is the perfect solution for anyone who needs to send one source of digital high definition video to multiple displays at the same time. It supports HDMI equipment, such as DVD players, satellite set top boxes and HDMI displays. -
Page 6: Features
FEATURES Features • Connects up to eight HDMI/DVI* displays at the same time to one video source • Allows simultaneous display • Supports resolutions up to 1080p, 2K, and 1920 x 1200 • Extends the range of HDMI compliant devices by equalizing and re-clocking the HDMI signal •... -
Page 7: Panel Descriptions
PANEL DESCRIPTIONS... -
Page 8: Application Diagram
APPLICATION DIAGRAM Multiple HDMI-DA-1X8 devices can be daisy chained together to distribute a single HDMI signal to a maximum of 73 units, for a total of 512 displays. HDMI-DA-1X8... -
Page 9: Rack Ears Installation Diagram
RACK EARS INSTALLATION DIAGRAM Rack mount ears are provided for installation of this unit into a 1U rack mount space. Locate the side screws on the unit. Remove the front 2 screws that are located closest to the front of the unit. Using the removed screws, screw the rack mounting bracket into the unit. -
Page 10: Wiring Diagram
WIRING DIAGRAM... -
Page 11: Specifications
SPECIFICATIONS Video Amplifier Bandwidth ................165 MHz Input Video Signal ................... 1.2 Volts p-p Input DDC Signal ................5 Volts p-p (TTL) Single Link Range ..............1080p / 1920 x 1200 Input Connector Type ..............HDMI Type A 19 Pin Output Connector Type ..............HDMI Type A 19 Pin Power Consumption ................ -
Page 12: Warranty
This Linear LLC Warranty is in lieu of all other warranties express or implied. Some states and countries do not allow limitations or how long an implied warranty lasts or the exclusion or limitation or incidental or consequential damages, so the above exclusions may not apply. - Page 16 H D MI- DA -1X 8 (7 6 0) 4 38 - 7 0 0 0 ( 80 0 ) 4 2 1-15 87 FA X ( 8 0 0 ) 4 6 8 - 13 4 0 www. li ne arc o r p . c o m R ev A...
