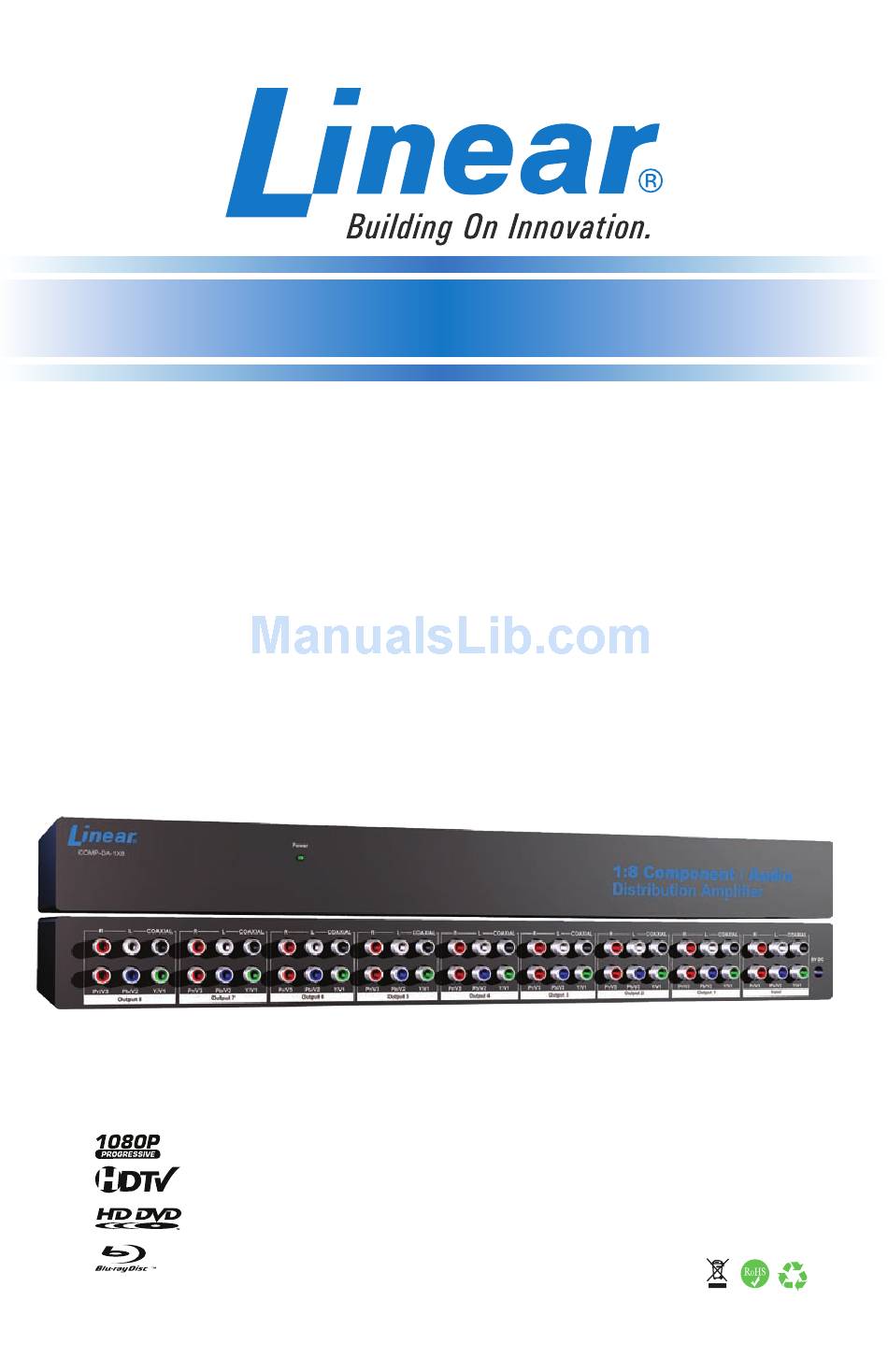

- Page 1 1x8 Component / Audio Distribution Amplifier Model# COMP-DA-1X8 U S E R M A N U A L www.linearcorp.com...
- Page 3 6:30 AM - 4:30 PM PST Monday through Friday. Email: techsupport@linearcorp.com Website: www.linearcorp.com Linear LLC reserves the right to make changes in the hardware, packaging and any accompanying documentation without prior written notice. © 2008 Linear LLC, All Rights Reserved ASKING FOR ASSISTANCE (800) 421-1587...
-
Page 4: Table Of Contents
Introduction Features Panel Descriptions Connecting and Operating the 1x8 Component / Audio Distribution Amplifier (DA) and Application Diagram Rack Ears Installation Diagram Wiring Diagram Specifications Warranty TABLE OF CONTENTS... -
Page 5: Introduction
INTRODUCTION The Linear 1:8 Component with Audio Distribution Amplifier is the perfect solution for anyone who needs to send one source of high definition component video and analog or digital audio to multiple displays at the same time. It supports component equipment, such as DVD players, satellite set top boxes and component displays. -
Page 6: Features
Features • Connects up to eight component displays at the same time to one video source • Supports HDTV (Component, YPbPr, RGsB) and SD (Composite, YCbCr) input signals • Supports HDTV resolutions up to 1080p • Both analog and digital audio outputs are active Includes: (1) 1x8 Component / Audio DA (1) 6 ft 5RCA Component/R+L Audio Cable... -
Page 7: Panel Descriptions
PANEL DESCRIPTIONS... - Page 8 Also, Composite video can also be fed into the Component video input to split and distribute Composite video. Multiple COMP-DA-1X8 devices can be daisy chained together to distribute a single Component signal to 73 units maximum, for a total of 512 displays.
-
Page 9: Rack Ears Installation Diagram
RACK EARS INSTALLATION DIAGRAM Rack mount ears are provided for installation of this unit into a 1U rack mount space. Locate the side screws on the unit. Remove the front 2 screws that are located closest to the front of the unit. Using the removed screws, screw the rack mounting bracket into the unit. -
Page 10: Wiring Diagram
WIRING DIAGRAM... -
Page 11: Specifications
SPECIFICATIONS Input ... YPbPr x1 or RGsB x1 (or RGBHV), or Composite x 1 (1 Vp-p@ 75 Ohm) Output ... YPbPr x 8, or RGsB(or RGBHV), or Composite x 8 Audio input ... Digital (SPDIF) x1 + R/L x 1 Audio output ... -
Page 12: Warranty
This Linear LLC Warranty is in lieu of all other warranties express or implied. Some states and countries do not allow limitations or how long an implied warranty lasts or the exclusion or limitation or incidental or consequential damages, so the above exclusions may not apply. - Page 16 COM P-D A- 1X 8 (7 6 0) 4 38 - 7 0 0 0 ( 80 0 ) 4 2 1-15 87 FA X ( 8 0 0 ) 4 6 8 - 13 4 0 www. li ne arc o r p . c o m Re v A...
