After the installation is complete, the audio source components will

need to be connected. After connecting the sources, the system

will be ready to power-up.

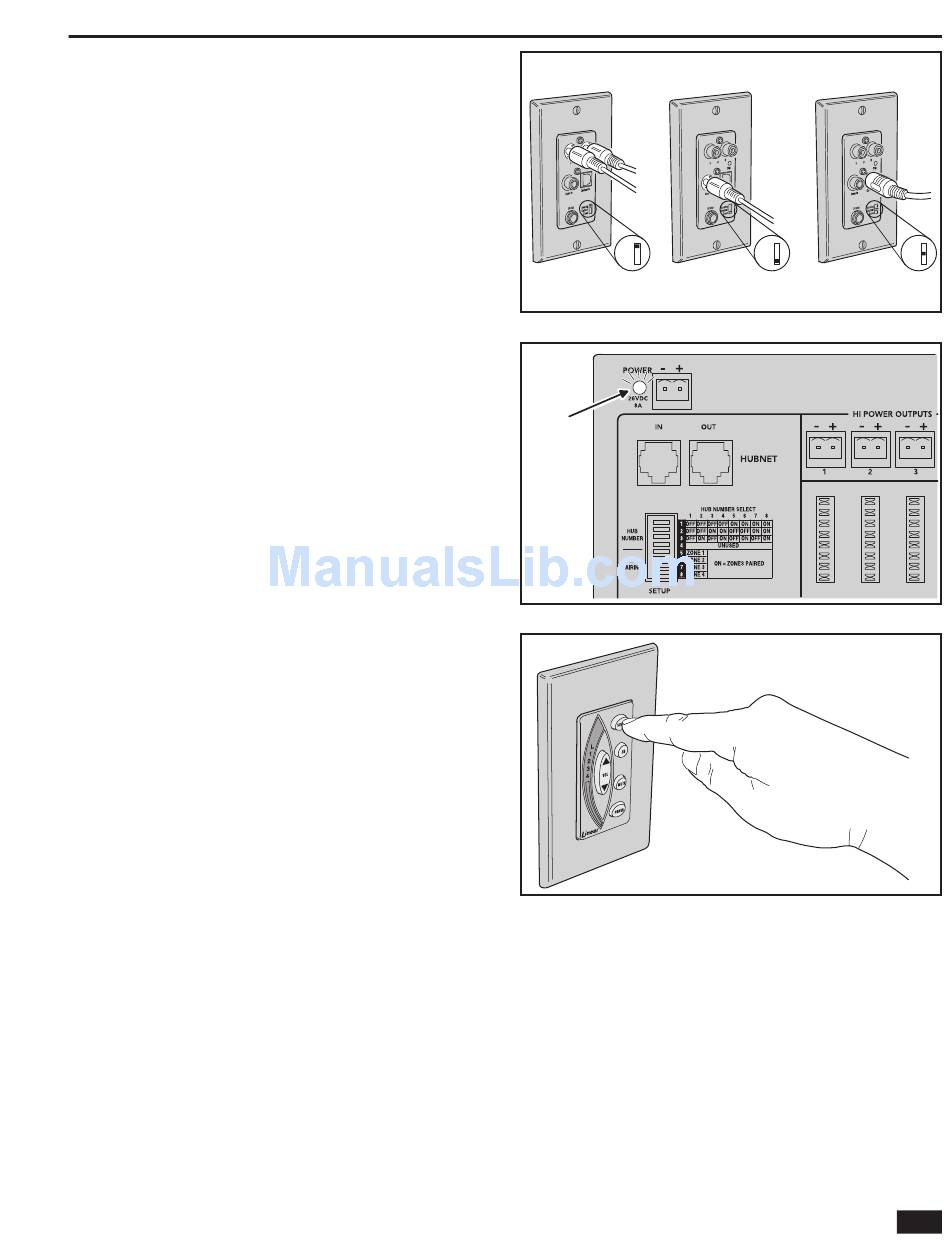

Audio Source Component Connections

Audio sources can be connected to the source input wall plates

with stereo coax cables, a digital coax cable, or an SPDIF optical

digital cable.

Connect the audio output (analog or digital) of each audio source

component to each of the source input wall plates.

Use the switch on the source input wall plates to select ANALOG,

OPTICAL, or COAX to match the source input used.

Connect an IR emitter to each source input wall plate and afﬁ x the emitter

to the audio source component's faceplate in the area of the components

IR sensor (the exact position for the IR emitter on the component will

require a little experimentation).

Turn on the audio source components and have them play audio to ready

the system for testing

Connect Power

To ready the system for testing, power must be applied to the

hub(s).

Plug all power supply line cords into the outlets that were installed.

Verify that the

POWER indicator is lit on each hub installed. There also is

a power indicator inside the power supply that can be seen through the

case vents.

Basic System Testing

After applying power to the system, perform a basic system test at

each keypad to verify that the system was wired correctly and that

all components are functioning.

Go to each keypad and perform these tests:

Press the

POWER button. The keypad keys should light.

Press the

SOURCE button to cycle through the sources. Verify that the

source indicators cycle through the source numbers.

Listen for audio from each of the sources. Use the

button to adjust the keypad's volume. Verify the sound quality.

Press the

POWER button to turn off the keypad.

Refer to the User's Guide for detailed system operation

instructions.
