Additional hubs and power supplies can be added to the system
to increase the number of speaker zones available. Up to seven
additional hubs can be connected for a maximum of 32 speaker
zones.
Expansion hubs share the same four source inputs as the fi rst hub
and each control their own four speaker zones.

Expansion Hub Installation

Expansion hubs can be mounted near the fi rst hub, or mounted in
a remote location near the speaker zones to be controlled.
1. Mount the expansion hubs and power supplies in structured wiring
enclosures or on the universal mounting brackets.
2. Connect the power supply output cable to each associated hub.
3. Use Cat-5 cables with RJ-45 connectors to interconnect each hub. Connect
to the HUBNET OUT connector on the fi rst hub, then to the HUBNET IN
connector on the next hub. Continue interconnecting the hubs using the
HUBNET IN and OUT connectors until all the hubs are connected.
4. Use Cat-5 cables to interconnect the hub sources. Each hub has four
SOURCE INPUT and four SOURCE OUTPUT Type 110 punch-down
connectors. Start at the fi rst hub and connect cables to each of the
SOURCE OUTPUT connectors. Route those cables to the next hub and
connect them to the same source number SOURCE INPUT connectors.
Continue interconnecting the hub source outputs and inputs until all the
hubs are connected.
5. Set the Hub Numbers using positions 1-3 of the
hub. Each hub must be set to a unique number.
SWITCH
#
1 2 3
1 OFF OFF OFF
2 OFF OFF ON
3 OFF ON OFF
ENC-SIWP
SOURCE
INPUT
WALL PLATES
SETUP switch on each
HUB NUMBER
4 5 6 7
OFF ON ON ON
ON OFF OFF ON
ON OFF ON OFF
ENC-PS
POWER
SUPPLY
ENC-HUB
SYSTEM
HUB #1
ENC-DRS KEYPADS

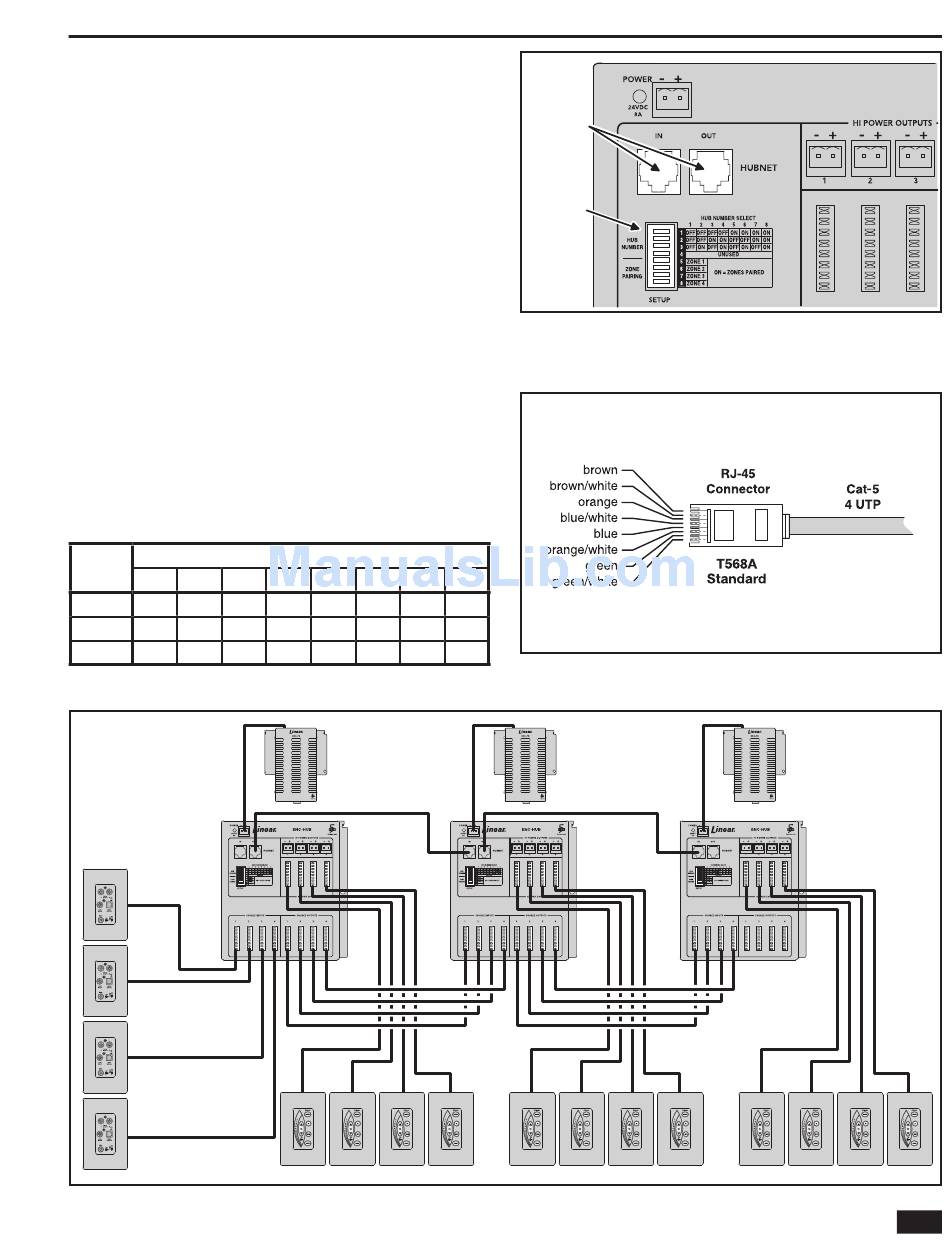

Figure 8. Example 3 Hub, 12 Zone System

Expansion Hub Setup

HUBNET
CONNECTORS
HUB
NUMBER
SWITCHES
Figure 6. HUBNET Connector and Setup Switch
8
ON
ON
ON
Figure 7. T-568A Wiring Standard for Cat-5 in RJ-45
ENC-PS
POWER
SUPPLY
ENC-HUB
SYSTEM
HUB #2
ENC-DRS KEYPADS
ENC-PS
POWER
SUPPLY
ENC-HUB
SYSTEM
HUB #3
ENC-DRS KEYPADS
