In order to properly function, it is important that all addresses are set correctly.

Signal IN

Power IN

Fig. 6

2. Connect the power and signal connections as drawn in Fig. 6

3. After having installed all tubes, set the address. The first device must be set to master and the rest

must be set to slave.

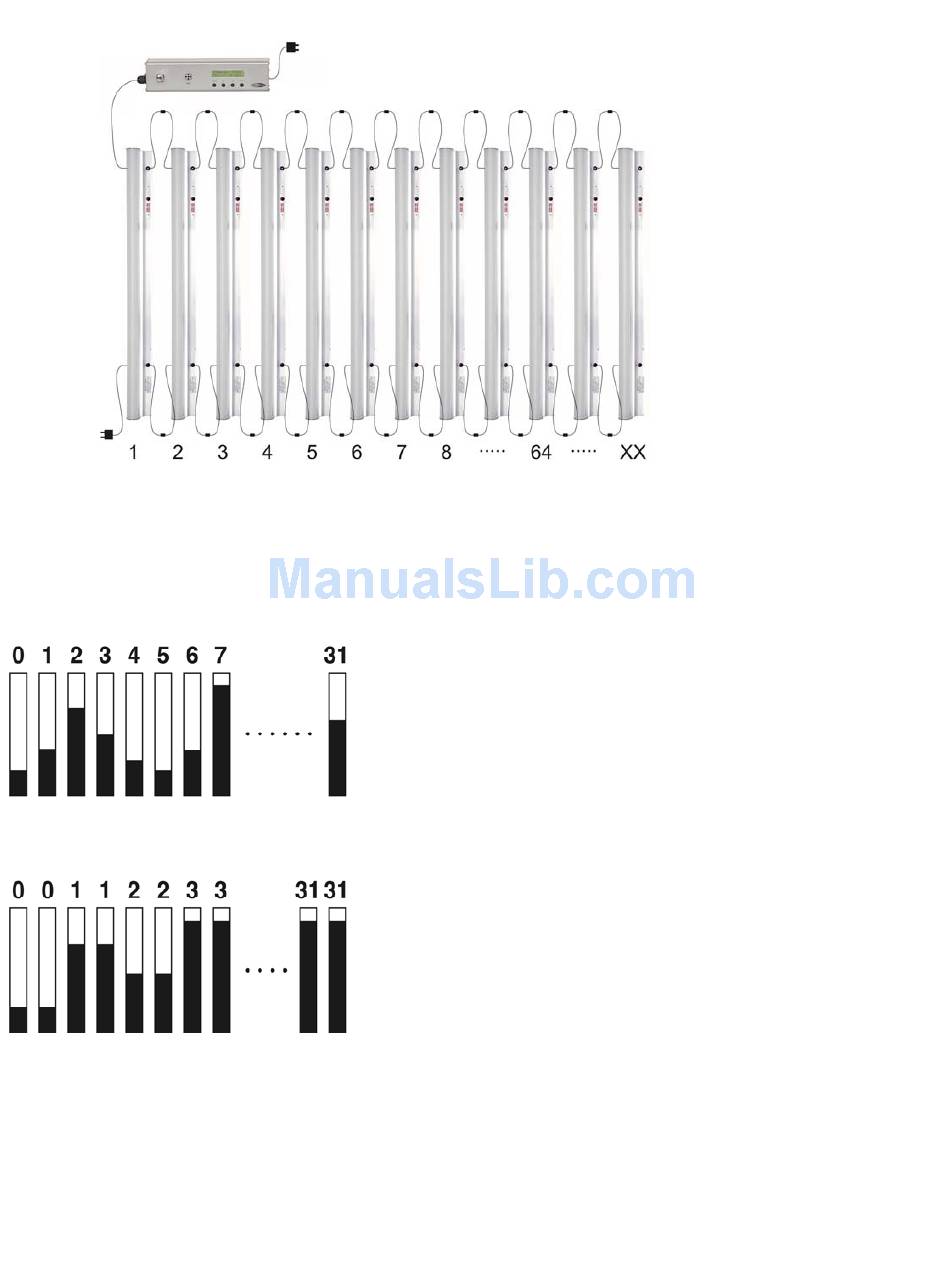

Connecting a series of LED Tubes

Method 1

Method 1 uses 32 LED Tubes to display a complete section of the sound wave.

Method 2

Method 2 uses 64 LED Tubes to display a complete section of the sound wave.

Method 2 uses two tubes placed in series with the same Tube Address, with both tubes displaying the same

amplitude of the sound wave.

1) Make sure that all tubes are set in SLAVE Mode.

2) Connect the output of the controller to the input of the first LED tube.

3) Turn on the power of the controller and the LED tubes.

4) All tubes should light up red with a green active bar representing the sound active wave.

5) The user can now enter the mode and select the desired display mode.
