LED Tube controlled with LED Music controller

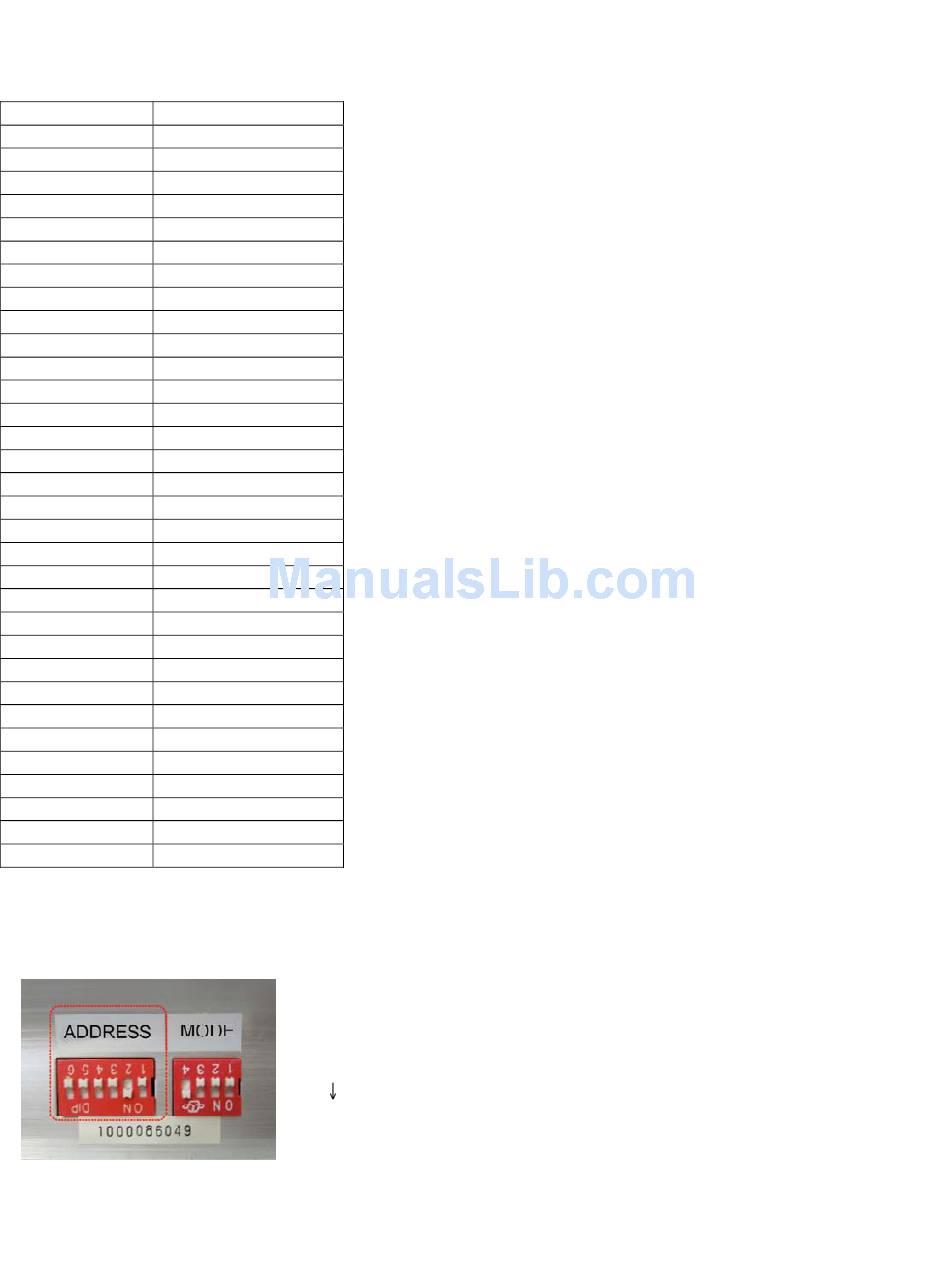

Address Dip Switch Setting
Address Dip Switch setting
0 00000
1 00001
2 00010
3 00011
4 00100
5 00101
6 00110
7 00111
8 01000
9 01001
10 01010
11 01011
12 01100
13 01101
14 01110
15 01111
16 10000
17 10001
18 10010
19 10011
20 10100
21 10101
22 10110
23 10111
24 11000
25 11001
26 11010
27 11011
28 11100
29 11101
30 11110
31 11111
Note : Dip Switch #1 is for Master/Slave mode:
Dip Switches #2, #3, #4, #5 and #6 are Address DIP switches
#1 ON Slave Mode
#1 OFF Master Mode
OFF
ON
Fig. 5
