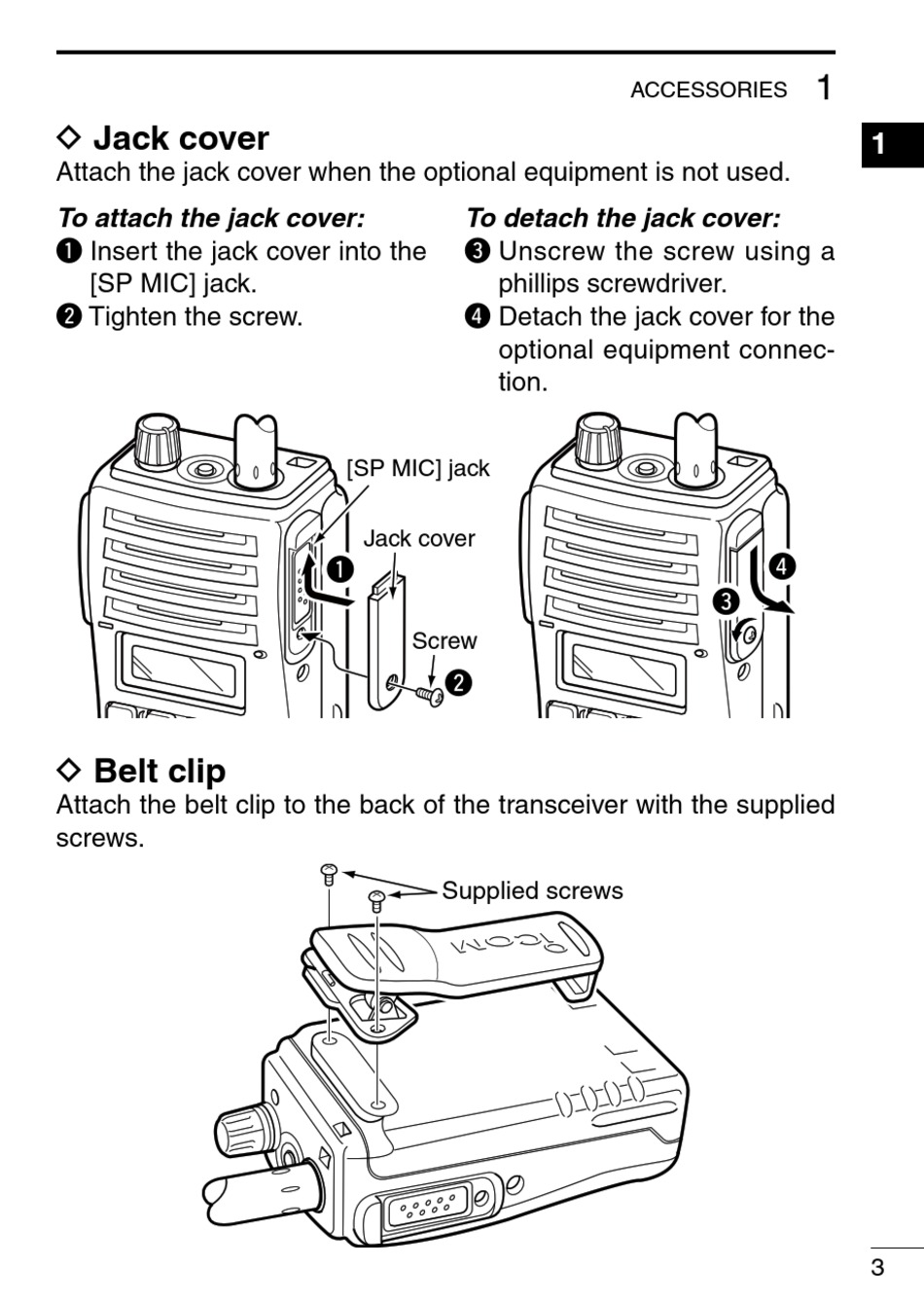

D Jack cover

Attach the jack cover when the optional equipment is not used.
To attach the jack cover:
q Insert the jack cover into the
[SP MIC] jack.
w Tighten the screw.
D Belt clip
Attach the belt clip to the back of the transceiver with the supplied
screws.
To detach the jack cover:
e Unscrew the screw using a
phillips screwdriver.
r Detach the jack cover for the
optional equipment connec-
tion.
[SP MIC] jack
Jack cover
q
Screw
w
Supplied screws
ACCESSORIES
r
e
