2

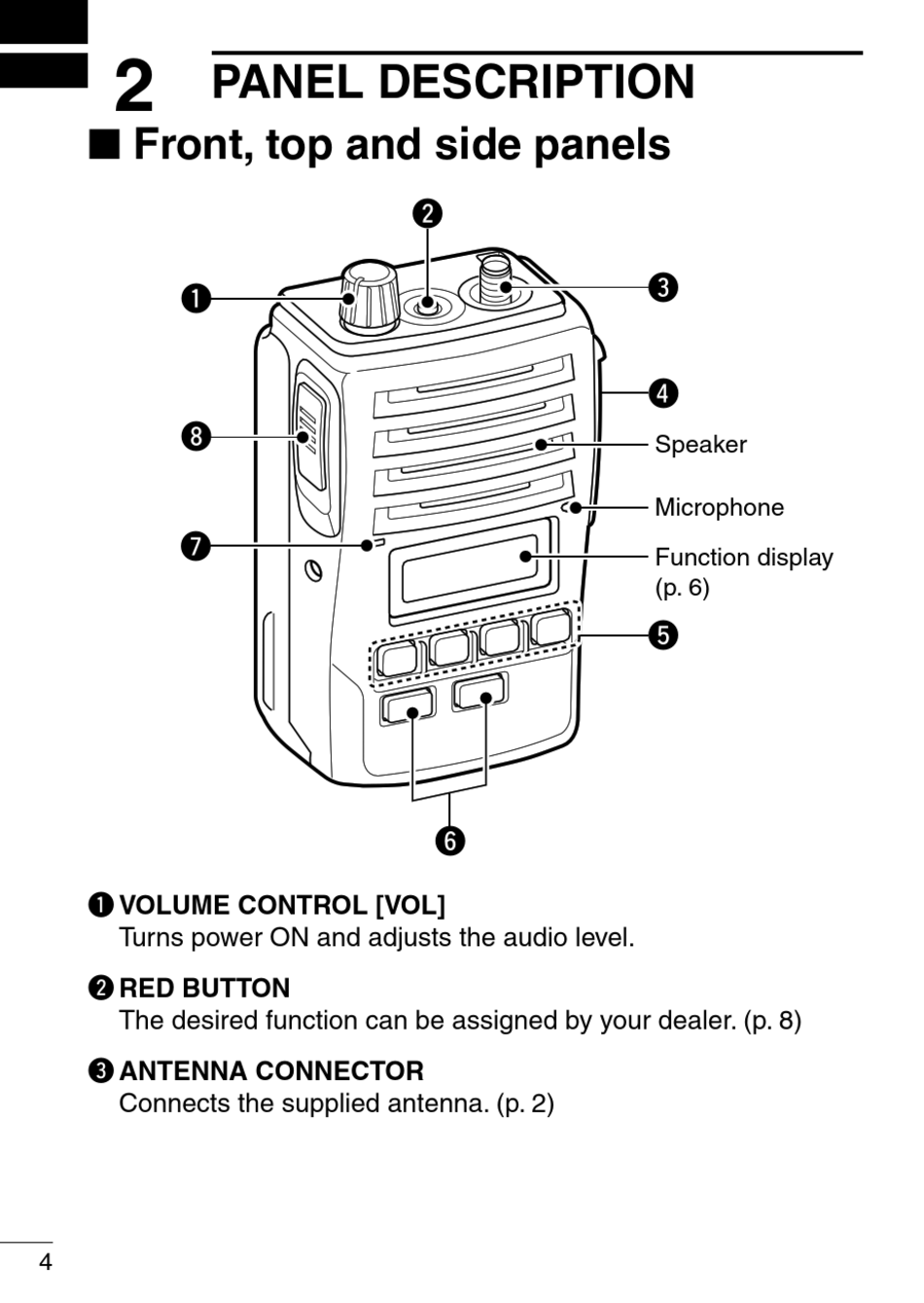

PANEL DESCRIPTION
■ Front, top and side panels
q
i
u
q VOLUME CONTROL [VOL]
Turns power ON and adjusts the audio level.
w RED BUTTON
The desired function can be assigned by your dealer. (p. 8)
e ANTENNA CONNECTOR
Connects the supplied antenna. (p. 2)
4
w
y
e
r
Speaker
Microphone
Function display
(p. 6)
t
