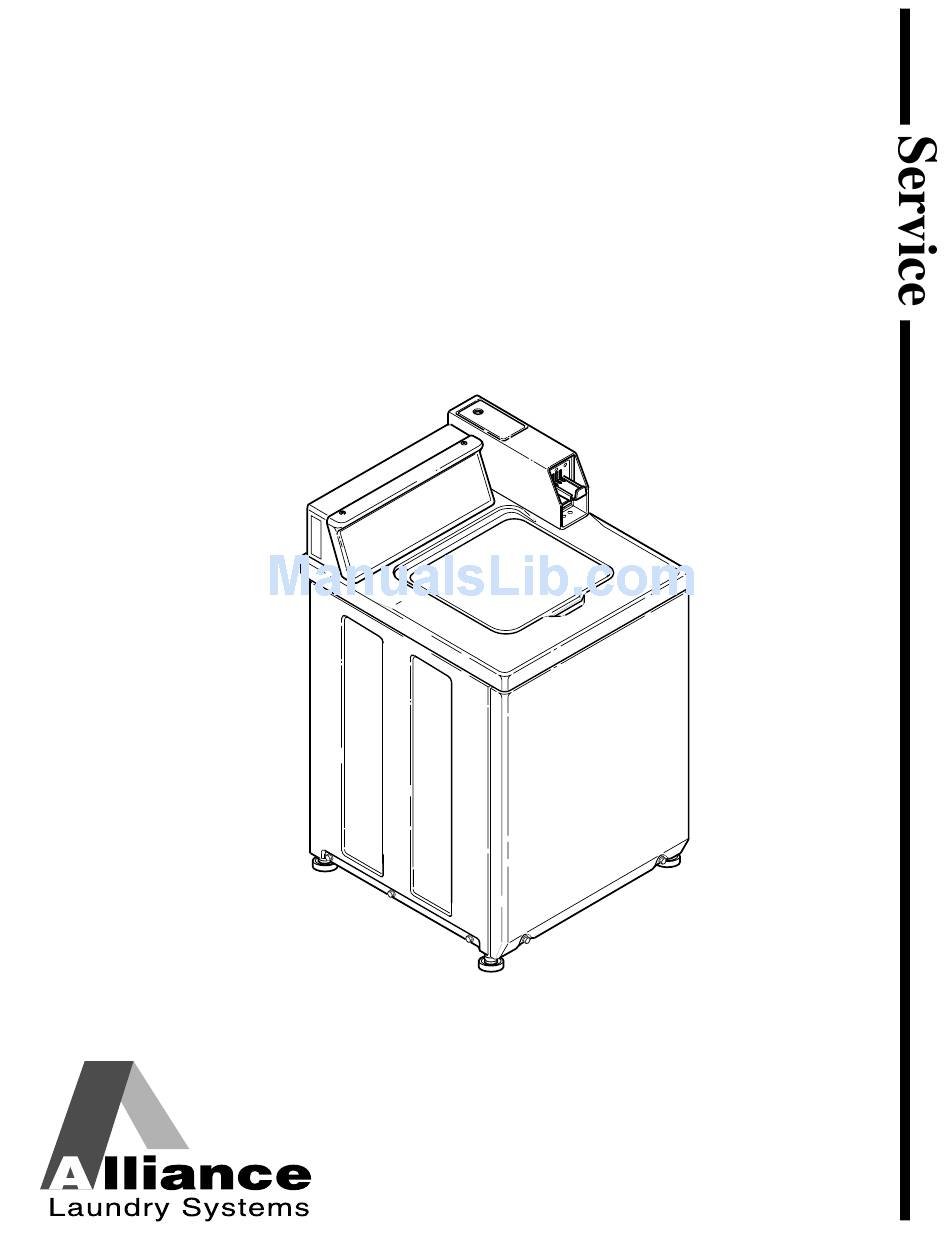

Automatic
Washers
Refer to Page 5 for Model Numbers
W138P
Part No. 36316R2
www.comlaundry.com
September 2007

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EA2011-3000 and is the answer not in the manual?

Questions and answers

Related Manuals for Alliance Laundry Systems EA2011-3000

Summary of Contents for Alliance Laundry Systems EA2011-3000

  • Page 1 Automatic Washers Refer to Page 5 for Model Numbers W138P Part No. 36316R2 www.comlaundry.com September 2007...

  • Page 3: Table Of Contents

    All rights reserved. No part of the contents of this book may be reproduced or transmitted in any form or by any means without the expressed written consent of the publisher. 36316 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT...
  • Page 4 Timer Nos. 34601p, 34603 and 34604 Cycle Sequence (Long Cycle) .........83 Section 9 – Internal Wiring of Washer Motor Switch Motor Assembly (1 Speed Motors) .......84 Motor Assembly (2 Speed Motors) .......85 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 36316...

  • Page 5: Section 1 - Safety Information

    • Whenever ground wires are removed during servicing, these ground wires must be reconnected to ensure that the product is properly grounded and to reduce the risk of fire, electric shock, serious injury or death. W006R2 36316 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT...

  • Page 6: Locating An Authorized Servicer

    Locating an Authorized Servicer Alliance Laundry Systems is not responsible for personal injury or property damage resulting from improper service. Review all service information before beginning repairs. Warranty service must be performed by an authorized technician, using authorized factory parts. If service is required after the warranty expires, Alliance Laundry Systems also recommends contacting an authorized technician and using authorized factory parts.

  • Page 7: Section 2 - Introduction

    EA2011-3050 EA2111-3000 EA2111-3050 EA2111-3059 EA2111-5400 EA2111-5406 EA2111-5412 EA2111-5417 EA2211-1200 EA2211-1300 EA2211-3000 EA2211-3066 EA2921-3000 EA2921-3050 EA2921-3059 GA2210-1102 ZA2011-3059 ZA2021-1102 ZA2111-1102 ZA2111-3059 ZA2121-1102 ZA2210-1102 ZA2221-1102 ZA2221-99E4 ZA2921-1102 ZA2921-3059 ZA2921-99E4 36316 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT...

  • Page 8: Customer Service

    Model and serial numbers are located on nameplate(s) as shown. Nameplate NOTE: Coin slide and coin drawer shown for illustration purposes only. W233SE3B © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 36316...

  • Page 9: Section 3 - Troubleshooting

    Inoperative pressure switch. Test switch and replace if inoperative. Clogged pressure hose. Remove and clean or replace hose. Broken, loose, or incorrect wiring. Refer to appropriate wiring diagram. 36316 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT...

  • Page 10: No Warm Water

    Drain hose fits tight in standpipe or drain. Water in pressure hose. Blow air through hose to remove water. Broken, loose, shorted, or incorrect wiring. Refer to appropriate wiring diagram. © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 36316...

  • Page 11: Timer Does Not Advance (Mechanical Timer Models Only)

    Timer is designed to pause when going from spin into rinse to allow the washtub to stop spinning before filling. Make sure that timer has advanced into fill portion of rinse cycle. 36316 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT...

  • Page 12: Motor Does Not Run

    Replace motor if shaft is locked up. Broken, loose, or incorrect wiring. Refer to appropriate wiring diagram. Power cord is miswired. Refer to appropriate wiring diagram for correct wiring. © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 36316...

  • Page 13: No Agitation

    TO CORRECT Inoperative timer. Test timer and replace if inoperative. Shorted or incorrect wiring. Refer to appropriate wiring diagram. Inoperative transmission assembly. Repair or replace transmission assembly. 36316 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT...

  • Page 14: Washer Smokes, Overheats, Cycles On Motor Thermal Overload Protector, Switch Actuator Kicks In And Out

    No clearance or stuck brake pads. Free sticky brake pads or replace pads. Broken, loose, or incorrect wiring. Refer to appropriate wiring diagram. Inoperative transmission assembly. Repair or replace transmission assembly. © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 36316...

  • Page 15: Constant Spin

    Repair or replace transmission. Brake pads binding. Free binding pads, or replace pads. Incorrect voltage. Contact local utility company, or have a qualified electrician check power supply. 36316 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT...

  • Page 16: Outer Tub Does Not Empty

    Outer tub cover gasket leaking. Replace gasket. Obstruction in drain causing water to come over top Remove obstruction. of outer drain tub cover. Tub-to-pump hose leaking at clamp. Tighten clamp. © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 36316...

  • Page 17: Troubleshooting Coin Drop

    IMPORTANT: Do not bend or damage mechanical parts within coin drop. Additional coins following path to sensor Coin in Coin Slot Coin Drop Sensor DRY2B Figure 1 36316 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT...
  • Page 18 Refer to Adjustments prevent coins from section for instructions following through on cleaning drop. required check stages of drop.) Replace coin drop TLW302S © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 36316...

  • Page 19: Troubleshooting Electronic Control

    Damaged terminals in the harness connector will appear burnt or show signs of heat discoloration on the connetor block. Replace the control to avoid repeated damage. 36316 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT...

  • Page 20: Cannot Perform Infrared Communication

    Check the following: – (IR) disabled by manual prog. – Is the (IR) on the control covered or blocked? – If needed, change electronic W367S control board. © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 36316...

  • Page 21: Coins Ignored When Entered

    Retest again, if not successful run test again. run test again. the following is the problem: – Replace coin drop. If the problem still exists: – Replace electronic control. W368S 36316 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT\...

  • Page 22: Electronic Control Has No Visible Display

    "FS2" the electrical outlet to the electronic control. white? NOTE: This voltage check confirms that main power is present to the control. Replace electronic control. W369S © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 36316...
  • Page 23 Section 3 Troubleshooting Electronic Control (Models EA2921-3000, EA2921-3050, EA2921-3059, ZA2921-1102, Notes 36316 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT\...

  • Page 24: No Fill Analysis

    On mixing valve check and replace: – Inlet screens. – Wiring and connections. – Replace coils or mixing valve. – Check thermal protect and wiring W370S from thermal protect to "H3-3" © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 36316...

  • Page 25: Electronic Control

    H3-6 START AGITATE AUDIT CONTROL H3-2 SPIN CIRCUIT H3-3 AVAILABLE OUTPUT TRANSISTOR IS "OFF" WHEN MACHINE IS RUNNING SCHEMATIC SERVICE DOOR COIN DROP COIN VAULT SENSOR W371S 36316 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT\...

  • Page 26: No Motor Run - Agitate Analysis

    BLU "H3-4" to "H3-2" refer to Section 7 RED "H3-6" to BRN or Paragraph 6. "H3-2" is there voltage? Replace electronic control board. W372S © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 36316...
  • Page 27 "OFF" WHEN MACHINE "OFF" WHEN MACHINE IS RUNNING IS RUNNING SCHEMATIC SCHEMATIC SERVICE SERVICE DOOR DOOR COIN DROP COIN DROP COIN VAULT COIN VAULT SENSOR SENSOR W373S 36316 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT\...

  • Page 28: No Motor Run - Spin Analysis

    BLU "H3-4" to "H3-6" refer to Section 7 BRN "H3-2" to "H3-6", or Paragraph 6. is there voltage? Replace electronic control board. W374S © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 36316...
  • Page 29 "OFF" WHEN MACHINE "OFF" WHEN MACHINE IS RUNNING IS RUNNING SCHEMATIC SCHEMATIC SERVICE SERVICE DOOR DOOR COIN DROP COIN DROP COIN VAULT COIN VAULT SENSOR SENSOR W375S 36316 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT\...

  • Page 30: Overflow Analysis

    If this happens, replace the mixing valve. Check for a locked open mixing valve. W376S © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 36316...
  • Page 31 H3-6 START AGITATE AUDIT CONTROL H3-2 SPIN CIRCUIT H3-3 AVAILABLE OUTPUT TRANSISTOR IS "OFF" WHEN MACHINE IS RUNNING SCHEMATIC SERVICE DOOR COIN DROP COIN VAULT SENSOR W377S 36316 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT\...

  • Page 32: Audit Switch Function Analysis

    – Machine/cycle var reports. Check for proper wiring and connections. After wiring has been confirmed correct, replace electronic control board. D216S © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 36316...

  • Page 33: Section 4 - Grounding

    W011GE3A Figure 2 28. POWER CORD TO CONTROL HOOD, CONTROL HOOD TO THE CONTROL PANEL FRAME Refer to Figure 3. Ground Wires Ground W285SE3A Wires Figure 3 36316 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT...

  • Page 34: Control Hood Wire Harness To Top Left Rear Corner Gusset Of Cabinet

    Corner Wire Gusset Ground Screw Ground Wires W013GE3A Figure 4 30. WIRE HARNESS TO MOTOR Refer to Figure 5. Ground Wire Harness Connection Block W329SE3C Figure 5 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 36316...

  • Page 35: Section 5 - Service Procedures

    NOTE: Refer to appropriate wiring diagram when reconnecting wire harnesses, ground and switch W284SE1A leads. Figure 6 Disconnect Blocks Pressure Ground Ground Disconnect Switch Wires Wires Blocks Indicator Light W285SE3B Figure 7 36316 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT...
  • Page 36 IMPORTANT: When installing pressure switch, blow air into hose before connecting hose to switch to remove any moisture that may have accumulated in hose. © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 36316...
  • Page 37 NOTE: Refer to appropriate wiring diagram when rewiring switches and indicator lights. (5) Remove control panel overlay by peeling it from control panel frame. NOTE: Control panel overlay has an adhesive backing. 36316 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT...

  • Page 38: Timer Assembly

    Refer to Figure 10. Screw Meter Case Timer Ground Wire Terminal Timer Timer Bracket Bracket Attaching Terminal Screws Block Plug W237SE1A Figure 10 W334SE1C Figure 9 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 36316...
  • Page 39 NOTE: Refer to appropriate wiring diagram when bottom of meter case so it will not interfere rewiring timer. with any moving parts in meter case. Setscrew Clutch W238SE1A Figure 11 36316 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT...

  • Page 40: Meter Or Timer Case Assembly

    Attaching Hardware W240SE1A (4) Remove front panel assembly. Refer to Paragraph 36. Figure 13 (5) Tape loading door closed and lift cabinet top to a vertical position. © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 36316...

  • Page 41: Drain Hose Elbow

    NOTE: Reverse procedures when installing loading door. Loading Door Hinge Attaching Screws Elbow Attaching Screws Hose Drain Clamp W242SE1A Hose Right Left Hinge Figure 14 Hinge W287SE1A Figure 15 36316 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT...
  • Page 42 Section 5 Service Procedures Procedure One Door Front W288SE3A Procedure Two Door Front W289SE3A Procedure Three Door Front W290SE3A Figure 16 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 36316...

  • Page 43: Front Panel Assembly

    Remove brace from front panel by swinging one end toward bottom of front panel and remove brace. Cabinet Top Hold Down Screws Hold-Down Clip Front Panel Screws W292SE3A Figure 17 36316 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT...

  • Page 44: Belts

    (special clutch-type belt) for proper washer operation. (60 Hertz models Part No. 28808; 50 Hertz models, Part No. 35517) Pump Bracket Pump Mounting Belt Screws W283SE1E BELT DRIVEN PUMP Figure 18 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 36316...
  • Page 45 Outer Tub Drain Hose Hose Clip Hose Clamp Tub-to-Pump Hose Hose Coupler Pump Assembly Hose Support Hose Screw Clamps Pump Mounting Bracket Pump Mounting Screw W192PE3D Figure 19 36316 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT...
  • Page 46 Helper Spring Motor The round spring Mounting hook must be Bracket hooked in rear hole for proper W248SE3B idler lever operation Figure 20 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 36316...

  • Page 47: Motor And Mounting Bracket

    NOTE: Refer to Figure 22 for motor and mounting bracket assembly sequence. Switch Locking Attaching Screw Connection Motor Motor Mount Block W267SE3A Switch Attaching Screws Figure 21 36316 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT...
  • Page 48 Shoulder Mounting Bolt Bracket Idler Pulley Motor Mount Locknut Idler Post Shaft Washer (Felt) Washer Belt (Nylatron) (Agitate and Retainer Spin) Belt Ring W122PE3D (Pump) Figure 22 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 36316...

  • Page 49: Motor Drive Pulley Or Pump Pulley

    Mounting e. Disconnect internal motor leads from motor Screw Bracket switch terminals. W250SE1A NOTE: Refer to Wiring Schematics, SECTION 10 Figure 23 for rewiring internal switch wires. 36316 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT...

  • Page 50: Agitator

    NOTE: Cabinet top is self supporting, however, a small chain may be used for additional support. Refer to Figure 25. Chain Agitator W247SE1A Figure 24 W252SE1A Figure 25 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 36316...

  • Page 51: Cabinet Top Assembly Removal

    Pull top forward far enough to permit disconnecting ground wires from top rear Corner Gusset Pressure Ground Hose Wire Mixing Valve Wire Harness Disconnect Blocks W253SE3A Figure 26 36316 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT...

  • Page 52: Agitator Drive Bell And Seal Kit, No. 36443P

    IMPORTANT: If large nut is turned clockwise approximately three quarters of the way. Refer when pulling drive bell, you will twist off the to Figure 27. quarter inch bolt. © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 36316...
  • Page 53 Apply remainder of supplied grease, Part No. there should be no gap! 36765P, to exposed surface of washer between transmission output shaft and seal. 36316 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT...
  • Page 54 Push down on tool with a quick motion until it bottoms out and the top of seal is fully seated. NOTE: Do not push agitator onto drive bell any Refer to Figure 33. further than necessary. © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 36316...

  • Page 55: Out-Of-Balance Switch Assembly

    TAPPING SCREW INSTALLATION through holes in switch holder. (6) Place switch assembly into switch holder. Figure 34 Refer to Figure 34. 36316 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT...
  • Page 56 Switch Clip Push Tabs Here W174SE1A Figure 36 272P4 Switch Tool Cabinet Switch Lever W171SE1A Figure 35 Switch Clips W175SE1A Switch Holder Switch Slots Holder Figure 37 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 36316...

  • Page 57: Mixing Valve Assembly

    Figure 39. d. Remove wires and quick disconnect blocks from mixing valve solenoid terminals. Refer to Figure 39. NOTE: Refer to appropriate wiring diagram when rewiring solenoid. 36316 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT...

  • Page 58: Outer Tub Cover And Clothes Guard

    Refer outer tub cover. Refer to Figure 40. to Figure 40. © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 36316...
  • Page 59 Part No. 273P4. Tub Cover Gasket 273P4 Tub Cover Tool Press Gasket Into Groove Using Your Fingers Hold-Down Hold-Down Tabs Tabs W208SE3B Figure 41 36316 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT...
  • Page 60 W255SE3A cover off tub flange. Figure 42 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 36316...
  • Page 61 Then carefully push clothes guard down into washtub until all pins snap into their respective holes. Slots Washtub Screws Clothes Washtub Guard Screws Pins W209SE3A Figure 43 36316 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT...

  • Page 62: Hub And Seal Kit, No. 495P3

    Lubricate inner splines of new hub assembly (supplied in kit) with No. 27604P Anti-Seize Compound. h. Carefully place new hub assembly on splined Flinger transmission tube. W179SE1E Figure 44 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 36316...
  • Page 63 Apply Bead Of No. 27615P Apply Bead Of Sealant Here No. 27615P (Step "f") Sealant Here (Step "f") Insert Sleeve From W180SE3A Bottom Side Of Seal Figure 45 36316 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT...

  • Page 64: Outer Tub Assembly

    Figure 46 c. While holding idler lever, reach in and around right side of motor and run belt off right side of pulley. © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 36316...
  • Page 65 Pivot Dome Attaching Brake Screws Assembly Pivot Dome Lower Bearing Housing Drive Pulley Transmission Assembly Plate Screw Balance Ring W257SE3A Figure 47 36316 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT...

  • Page 66: Drive Pulley And Helix

    This condition will persist until lubricant is removed. Drive Pulley Washer Cap Screw Helix W271SE3A Figure 48 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 36316...
  • Page 67 Apply Lubricant Here Drive Pulley Apply Lubricant Washer Here Helix Cap Screw Pivot Dome DO NOT LUBRICATE Washer Base Snubber Pad and Isolator Assembly W183SE3C Figure 49 36316 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT...

  • Page 68: Brake Assembly

    NOTE: Refer to Figure 49 for assembly sequence. IMPORTANT: When installing spring, make sure it is inserted into groove in large splines of lower transmission tube. Use tool, No. 242P4, for installing spring. © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 36316...

  • Page 69: Transmission Assembly

    27604 Anti-Seize Compound be applied to area of the transmission tubes where they will be contacting upper and lower bearings. Refer to Figure 50. 36316 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT...
  • Page 70 (seals, bearing, roller clutch, etc.). If oil is present between seals and bearing, or roller clutch is bad, it will require replacing complete transmission cover assembly. Individual components are not available separately. © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 36316...
  • Page 71 Refill transmission case with new No. 27243P Transmission Oil (one fill). 36316 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT...
  • Page 72 Reduction Shaft Pinion Gear (Input) Identification Groove Agitator Pinion Dowel Rack Slide Transmission Cover Assembly Screw Dowel W186SE3C SEALANT (Use between Transmission Case and Cover) Figure 51 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 36316...

  • Page 73: Balance Ring

    NOTE: When reinstalling upper bearing assembly threads of cap screws must be secured using Loctite. Ball Bearing Cap Screw Outer Upper Bearing Flinger Housing Upper Flinger Bearing Housing W196SE3D Figure 52 36316 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT...

  • Page 74: Snubber Pad And Isolator Assembly

    (not kinked or twisted). If it is not, loosen hose recess of washer base. clamp and straighten hose. Starting Edge Isolator Strip Elongated Hole Dome Area of Washer Base W220SE3C Figure 53 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 36316...
  • Page 75 NOTE: Washer must be run through a complete k. Reinstall washer front panel. cycle to make sure it is operating properly. Pressure Hose Tape Pressure W335SE3A Bulb Figure 54 36316 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT...

  • Page 76: Section 6 - Adjustments

    If these locknuts are not tight, washer will not remain stationary during operation. Washer Base Locknut Leveling Rubber Foot Front Panel Screws W286SE3A Figure 55 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 36316...

  • Page 77: Pressure Switch

    61. OUT-OF-BALANCE SWITCH Skirt a. Open cabinet top assembly. Refer to Paragraph Centering b. Check for bent actuator arm or lever. Refer to Spring Figure 57. W256SE1A Figure 58 36316 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT...

  • Page 78: Belt (Agitate And Spin)

    Refer to Figure 59. Pump Bracket Front Mounting Pump Screw Belt W283SE1C Figure 59 Pump Motor Pulley Pulley 1/2 in. (12.7 mm) W231SE1A Figure 60 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 36316...

  • Page 79: Cleaning Coin Drop

    Move metal clip closer to sensor so that it comes off frame. Refer to Figure 61. g. Remove coin return from coin drop frame. Refer to Figure 62. Cotton Swab DRY5B Figure 63 36316 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT...
  • Page 80 Place drop on level surface to verify that coins follow correct path in drop. It may be necessary to lift drop to allow coin to follow through sensor. o. Reinstall coin drop into machine. © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 36316...

  • Page 81: Section 7 - Test Procedures

    VIOLET WIRE. LOW SPEED TERMINALS MANUALLY DEPRESS ACTUATOR. CONTINUITY EXISTS INOPERATIVE LOW SPEED SWITCH. BETWEEN SWITCH TERMINAL P REPLACE SWITCH. AND VIOLET WIRE. MOTOR SWITCH CHECKS OK. 36316 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT...

  • Page 82: Emerson Motor Windings

    INDICATE WHETHER YES, MOTOR PASSED THIS TEST OR, NO IT FAILED THIS TEST Washer Motor Failure Motor Switch Motor Windings Start Terminals: Start Winding: High Speed Winding: High Speed Terminals: Low Speed Winding: Protector/Common Lead: Low Speed Terminals: © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 36316...

  • Page 83: Section 8 - Cycle Sequence Charts

    N = NORMAL CYCLE *ON SINGLE SPEED MODEL WASHERS, ALL SPEEDS ARE FAST. TIMER NO. 28716 CYCLE SEQUENCE (LONG CYCLE – KINGSTON) AND TIMER NO. 28719 CYCLE SEQUENCE 36316 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT...

  • Page 84: Timer Nos. 31111P, 31504 And 35368 Cycle Sequence (Short Cycle)

    X = INDICATOR LIGHT GLOWS N = NORMAL CYCLE *ON SINGLE SPEED MODEL WASHERS, ALL SPEEDS ARE FAST. TIMER NOS. 31111P, 31504 AND 35368 CYCLE SEQUENCE (SHORT CYCLE) © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 36316...

  • Page 85: Timer Nos. 34601P, 34603 And 34604 Cycle Sequence (Long Cycle)

    X = INDICATOR LIGHT GLOWS N = NORMAL CYCLE *ON SINGLE SPEED MODEL WASHERS, ALL SPEEDS ARE FAST. TIMER NOS. 34601P, 34603 AND 34604 CYCLE SEQUENCE (LONG CYCLE) 36316 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT...

  • Page 86: Section 9 - Internal Wiring Of Washer Motor Switch

    W003 White Brown Blue Yellow W310SE3A 4P M YELLOW OVERLOAD PROTECTOR AUX. W211SE3A MOTOR ASSEMBLY (1 Speed Motors) © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 36316...

  • Page 87: Motor Assembly (2 Speed Motors)

    W003 Wire Harness Connection Block White Blue Brown Violet Yellow W311SE3B 4P M YELLOW 6P M OVERLOAD PROTECTOR AUX. W224SE3A MOTOR ASSEMBLY (2 Speed Motors) 36316 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT...
