2.4 UsinG ManaGEr ModE on E5
Your MATRIX Elliptical Total Body Cross Trainer is designed to allow you to
cutomize settings for your preferences and diagnostics. The Manager Mode
can only be accessed while the Elliptical is powered up. Follow the instruc-
tions to adjust the Elliptical Total Body Cross Trainer computer for your desired
setting.
stEp 1 Power up the Elliptical Total Body Cross Trainer and hold the Up
:
and doWn arrow keys for 3 seconds. The word 'Manager' will
appear in the alphanumeric window and will enter into the
Manager Setting automatically after 3 seconds.
Continue to pedal until finished.
stEp 2 Select information you would like to view or change from the follow
:
ing list by using the Up or doWn arrows. Press sElEct.
Manger mode will allow you to view and set the following.
DISPLAY CODE: INFORMATION USER DEFINABLE
Manager P0: Maximum program time
P1: Default time
P2: Default level
P3: Default weight
P4: Speed
P5: Machine
P6: Cardio Entertainment
P7: Accumulated Distance
P8: Accumulated Time
P9: Software Version
stEp 3: Use Up or doWn arrows to increase or decrease values.
stEp 4: Press start to save and enter selected values and exit to stEp 2.
stEp 5: Exit by pressing start. Screen will reset to Start up.
cHaptEr 2: U
sing
Xc
DEFAULT VALUE MIN. MAX.
Y 95 min 5 95
Y 20 min 5 95
Y L1 L1 L20
Y 150 lbs 80lbs 400lbs
Y Miles Miles KM
Y BI BI RE,EL
On OFF
Y On
Y On On OFF
M p
anager reference
2.5 UsinG csafE on tHE E5
Xc
On the back of the console are two RJ45 receptacles. They are marked
csafE and EntErtainMEnt.
Use the csafE port to plug in a csafE device using an RJ45 connector.
The connection is as follows:
cpU

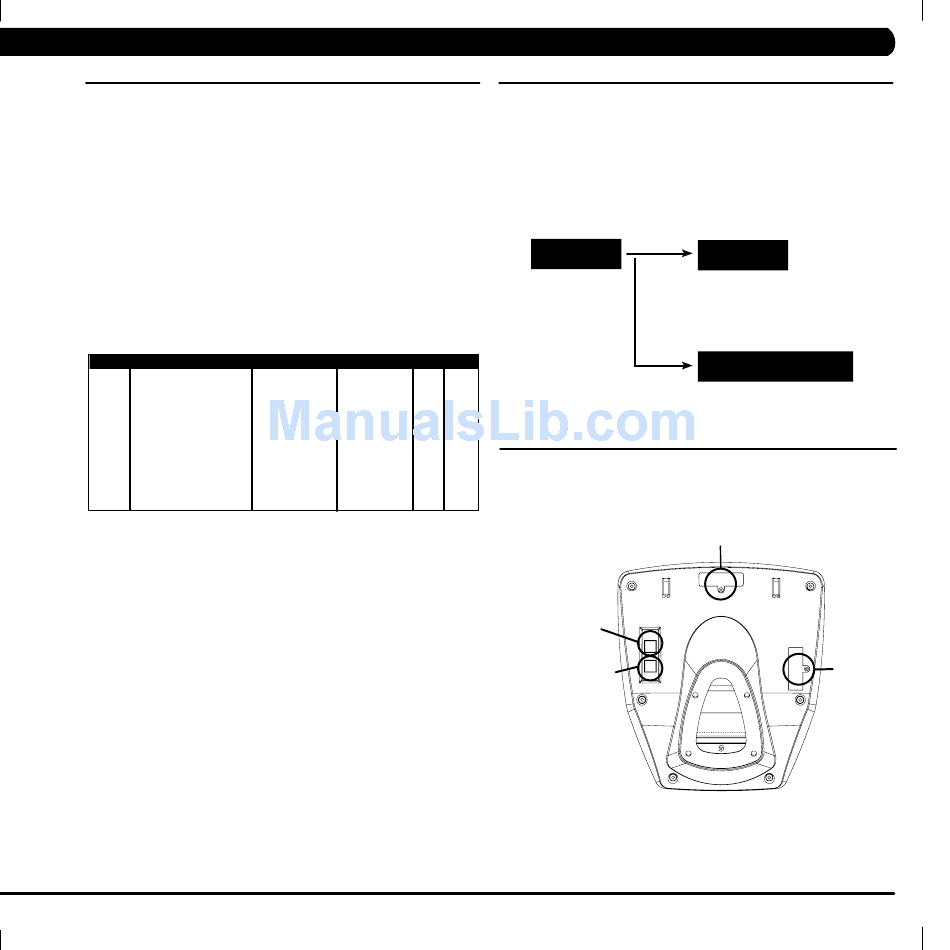

2.6 E5 consolE (BacK sidE) accEss layoUt:
Xc
Below is a layout to all of the access ports on the back of your Matrix Console.
REPROGRAMMING
CSAFE
PORT
CSAFE
ENTERTAINMENT
ENTERTAINMENT
PORT
consolE
Unit 1
csafE
Unit 2
EntErtainMEnt
CONNECTOR
BATTERY
LOCATION
