cHaptEr 6: e5

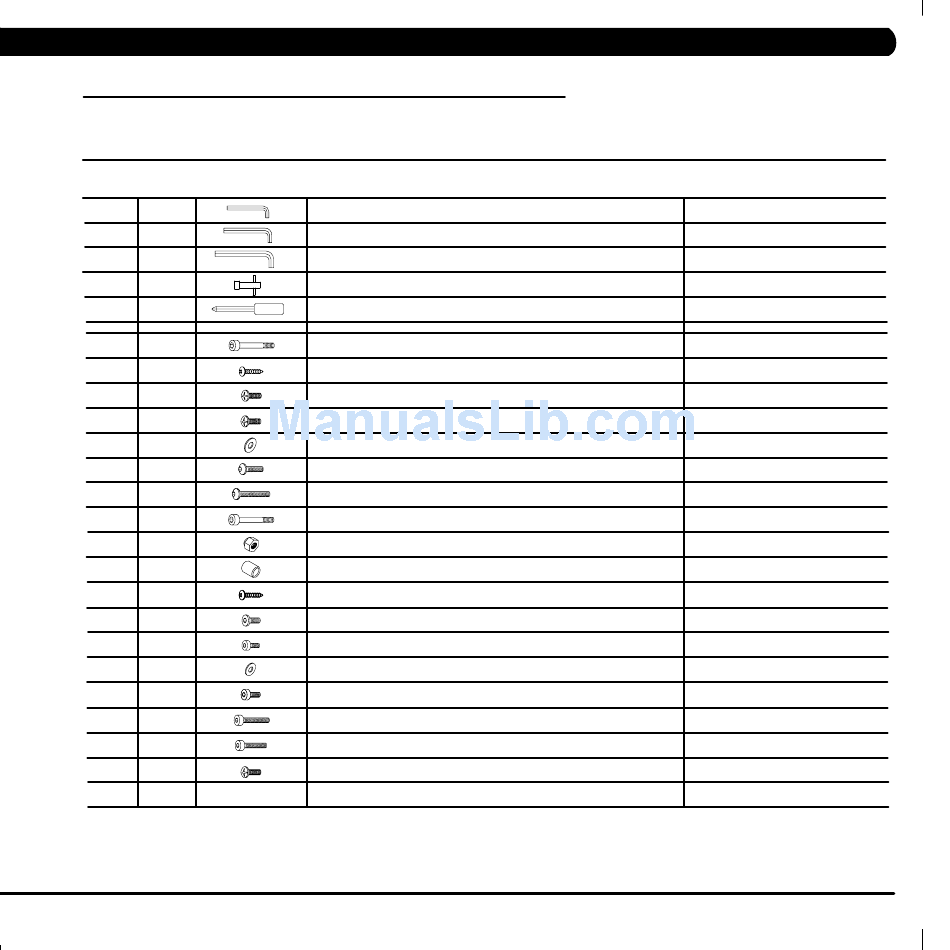

6.2 MX-E5 Elliptical cross trainEr fastEnErs & assEMBly tools
X
QTY PART # SKETCH
01
01
01
01
01
02 Z01
04 Z02
12 Z03
02 Z04
02 Z05
04 Z06
02 Z07
02 Z08
02 Z09
02 Z10
04 Z11
12 Z12
08 Z13
08 Z21
06 Z22
04 C23
04 C26
04 N51
e c t
x lliptical ross rainer
DESCRIPTION
4mm ALLEN WRENCH
5mm ALLEN WRENCH
6mm ALLEN WRENCH
SOCKET WRENCH
#2 PHILLIPS SCREW DRIVER [ 4.5 x 50 ]
SOCKET HEAD CAP SCREW(M10 x 75)
PAN HEAD PHILLPS DRIVE SCREW(M5 x 15L)
PAN HEAD MACHINE SCREW(M5 x 12L)
PAN HEAD MACHINE SCREW(M5 x 8L)
WAVE WASHER(20.5x29.1.1.5t)
BUTTON HEAD SOCKET CAP SCREW(M8x10L)
BUTTON HEAD SOCKET CAP SCREW(M8x20L)
SOCKET HEAD CAP SCREW(M10x40L)
NYLOK NUT(M10x40L)
BEARING ROD PIN
PAN HEAD PHILLIPS DRIVE SCREW(M4x15L)
SOCKET HEAD CAP SCREW(M8x12L)
SOCKET HEAD CAP SCREW(M6x15L)
FLAT WASHER(6.4x11x1.6t)
SOCKET HEAD CAP SCREW(8x15L)
SOCKET HEAD CAP SCREW(8x65L)
SOCKET HEAD CAP SCREW(8x35L)
BUTTON HEAD MACHINE SCREW(M5 x 12L)
s , p ,
pecifications arts
a s
and ssembly teps
