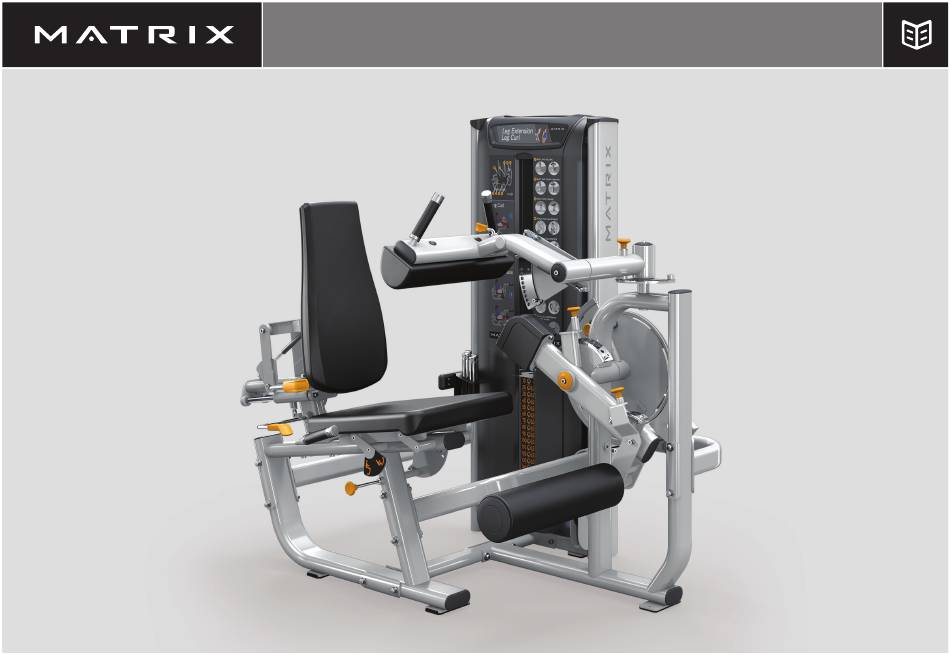

- Page 1 MD-S711 MEDICAL LEG EXTENSION / LEG CURL...
-
Page 3: Important Safety Information
This equipment is for indoor use only. This training equipment with reduced physical, sensory or mental that MATRIX equipment be used properly to avoid injury. is a Class S product (designed for use in a commercial capabilities, or lack of experience and knowledge, environment such as a fitness facility). -
Page 4: Intended Use
PROPER USAGE 1. Do not exceed weight limits of the exercise device. The intended use of the Matrix MD-S711 Medical Leg Extension / Leg Curl is 2. If applicable, set safety stops to appropriate height. to create a predetermined, defined physical activity level for the patient. The physical activity level is generated by the user pushing against a movable leg 3. -
Page 5: Adjustment Points
ADJUSTMENT POINTS Back Pad Recline Seat Pivot Change Pull handle inward, increase or decrease the angle of the Pull pin, adjust the seat height to correct back pad to comfortable start position, release handle. exercise start position, release pin. Allows the user to adjust the starting angle of the Allows the user to adjust the seat pad height permitting back pad. - Page 6 ADJUSTMENT POINTS Starting Leg Position Thigh Pad Release Pull pin, adjust pad to desired start position, release pin. Depress lever with thumb, raise or lower pad, release lever. Allows the user to adjust the work arm to a comfortable start position. Allows the user to raise or lower the thigh pad into a comfortable start position.
-
Page 7: Maintenance Checklist
As Needed * Ensure a minimum clearance width of 0.6 meters (24”) for access to and pas- sage around MATRIX strength equipment. Please note, 0.91 meters (36”) is the Upholstery & Grips should be cleaned with a mild soap ADA recommended clearance width for individuals in wheelchairs. - Page 8 4MM L-Shaped Allen Wrench Phillips Screwdriver 5MM L-Shaped Allen Wrench 8MM Open-End Wrench 6MM L-Shaped Allen Wrench 17MM Open-End Wrench 8MM L-Shaped Allen Wrench Guide Rod Lubrication If any items are missing please contact your country’s local MATRIX dealer for assistance.
- Page 9 Do not fully tighten frame connectors until Step 1 Hardware Step 2 Hardware assembly is complete. Vibra-Tite 135 Red Gel Description Description or equivalent must be used on all fasteners Bolt (M10x20L) that are not assembled with Nylock Nuts. Bolt (M10x20L) Washer (Φ10.2) Washer (Φ10.5xΦ42) Bolt (M10x125L)
- Page 10 Step 3 Hardware Step 4 Hardware Description Description Set Screw (ST4x20L) Bolt (M10x20L) Washer (Φ10.2) Arc Washer (Φ10.5) Bolt (M10x150L) Nylock Nut (M10)
- Page 11 Step 5 Hardware Step 2 Hardware Description Description Bolt (M10x20L) Bolt (M10x20L) Washer (Φ10.5xΦ42) Washer (Φ10.2) Bolt (M8x15L) Washer (Φ8.5xΦ60) Axle (Φ25.0x88) POM Washer (41.8xΦ20.5)
- Page 12 Step 7 Hardware Step 8 Hardware Description Description Washer (Φ10.2) Bolt (M10x20L) Bolt (M10x25L) Plug Plug Bolt (M8x25L) Washer (Φ8.4)
- Page 13 Step 9 Hardware Step 10 Hardware ASSEMBLY COMPLETE! Description Description Bolt (M10x20L) Bolt (M8x25L) Washer (Φ10.5xΦ42) Washer (Φ8.4) Washer (Φ8.4) Wavy Washer (Φ30.5) Nylock Nut (M8)
- Page 14 OPTIONAL ASSEMBLY (SOLD SEPARATELY) INCREMENTAL WEIGHTS STEP STOOL Hardware Description Plug (pre-installed) Bolt (M10x20L) Spring Washer (Φ10.2) Arc Washer (Φ10.2)
- Page 16 MD-S711 Part # XXXXXXXXXX © 2019 Johnson Health Tech Rev 1.1 A...
