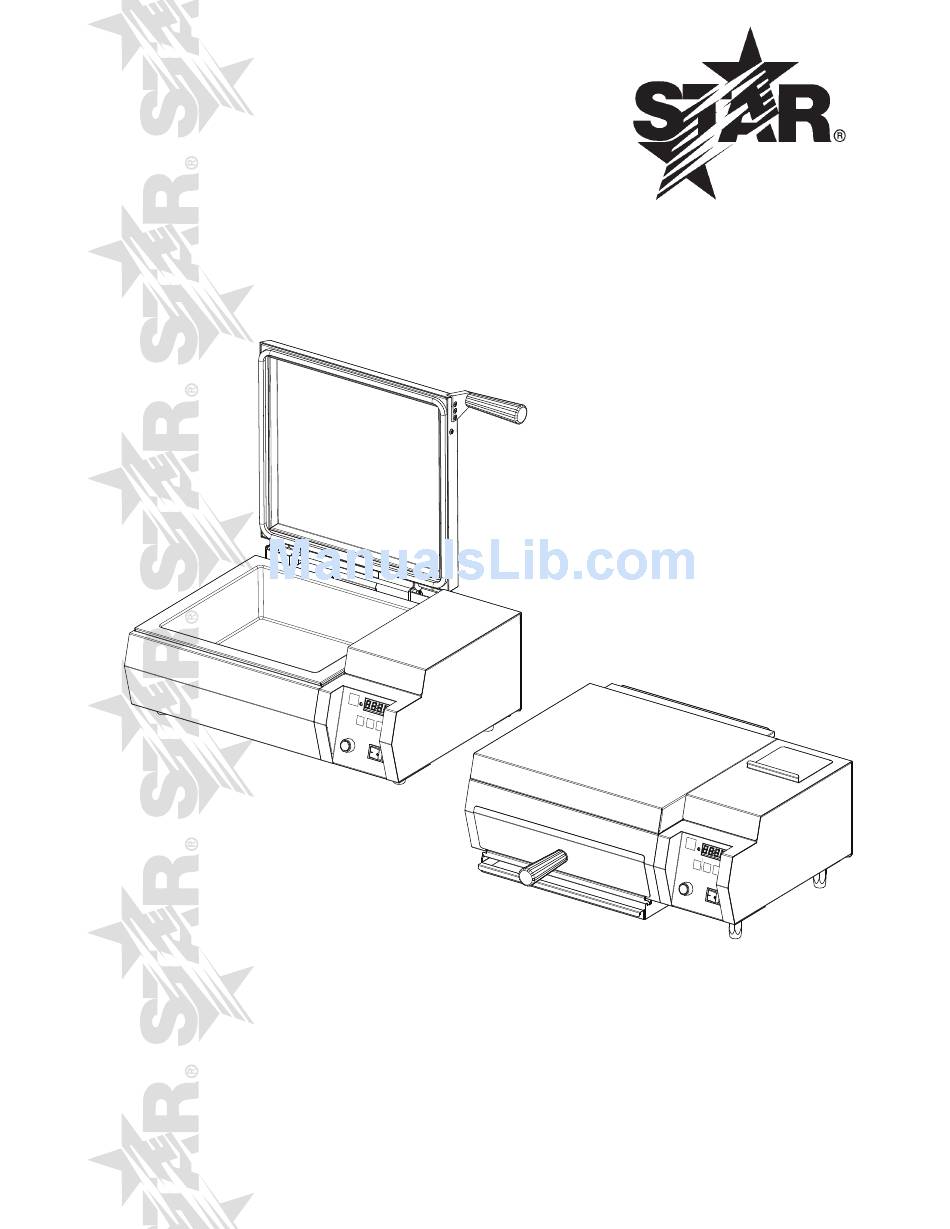

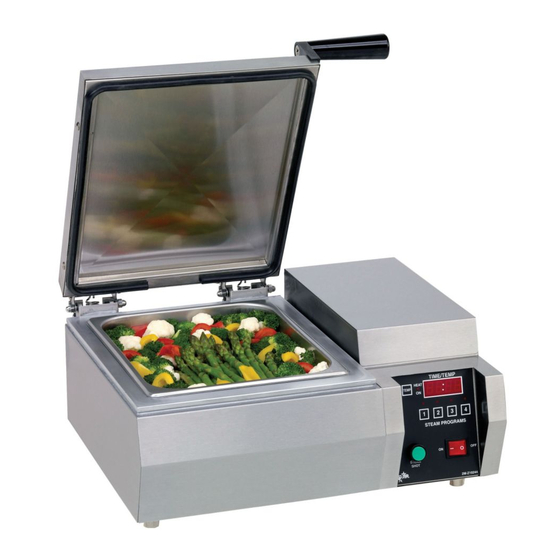

- Page 1 FAST STEAMER MODEL FS1R, FS1D, FS1RT, FS1DT FS2R, FS2D, FS2RT, FS2DT FSFR, FSFD, FSFRT, FSFDT Installation and Operation Instructions 2M-Z10887 Rev. E 7/27/2009 FS2DT FSFRT...
-
Page 2: Safety Symbol
RETAIN THIS MANUAL FOR FUTURE REFERENCE NOTICE Using any part other than genuine Star factory supplied parts relieves the manufacturer of all liability. Star reserves the right to change specifi cations and product design without notice. Such revisions do not entitle the buyer to corresponding changes, improvements, additions or replacements for previously purchased equipment. -
Page 3: Electrical Specifications
SPECIFICATIONS IL1361 FRONT LOADING TOP LOADING FAST STEAMERS SPECIFICATIONS FRONT LOADING Model "A" Width "B" Height "C" Depth Approx. Capacity (inches) Direct (D) Inches/CM Inches/CM Inches/CM Shp Weight W_x_D_x_H Reservoir (R) FSFR 2in. / 58.4cm 9.5in / 24.c, 2.5in / 54.4cm 48lbs / 2.8kg .75" x .75" x " FSFD 2in. / 58.4cm 9.5in / 24.c, 2.5in / 54.4cm 48lbs / 2.8kg .75" x .75" x "... -
Page 4: General Information
GENERAL INFORMATION CAUTION This equipment is designed and sold for commercial use only by personnel trained and experienced in its operation and is not sold for consumer use in and around the home nor for use directly by the general public in food service locations. Before using your new equipment read and understand all the instructions & labels associated with the unit prior to putting it into operation. Make sure all people associated with its use understand the units operation & safety before they use the unit. All shipping containers should be checked for freight damage both visible and concealed. This unit has been tested and carefully packaged to insure delivery of your unit in perfect condition. If equipment is received in damaged condition, either apparent or concealed, a claim must be made with the delivering carrier. Concealed damage or loss - if damage or loss is not apparent until after equipment is unpacked, a request for inspection of concealed damage must be made with carrier within 5 days. Be certain to retain all contents plus external and internal packaging materials for inspection. The carrier will make an inspection and will supply necessary claim forms. These models are equipped for the voltage and wattage indicated on the nameplate. These units are designed to operate on alternating current (A.C.), two wire single phase service only and are equipped with an approved lead in cord set with a three prong grounding type plug. DO NOT CONNECT TO DIRECT CURRENT (D.C.). UNPACKING Carefully remove the steamer from the shipping and packing & protective material. Remove all removable parts and clean with hot water and mild detergent. Wipe the unit using damp cloth. Never hose down the unit with water, this steamer has Unit should also contain: • Operations manual & Authorized Service Agent Listing Packet • Inlet Hose Assembly (non-reservoir units only) • Spatula tray (front loading units only) Purchasers Responsibility • To see that the electric & water services for the unit are installed on site in accordance with the manufacturer's specifications and municipal codes. -
Page 5: Installation
INSTALLATION ELECTRICAL CONNECTION For your protection, we recommend that a qualified electrician install this appliance. The electrician should be familiar with electrical installations and your local electrical requirements. Proper connections and power supply are essential for efficient performance. The supply circuit should be properly fused as required by local electrical code. -
Page 6: Water Connection
These units come equipped with either a direct connect, rear mounted quick disconnect fluid control valve, or a 2 cup water tank with tank drain and supply pump. It is vital that all water supply lines be thoroughly flushed with clean water before being connected to the steamer. The Star Fast-Steamer has a water injection system, to ensure your new equipment works at its premium, we recommend that a water softener is used in areas where hard water is present. Contact your local water equipment system provider to assist you in determining your specific water quality, or contact Star Technical support for assistance, -800-807-9054. Direct Connect Water Supply Installation . Make certain the water valve that Water... -
Page 7: Operating Procedure
OPERATING PROCEDURE Connect your unit to a wall outlet which will supply the unit with the proper voltage specified on the data plate. If you have a reservoir unit, verify the water level, add if water is low. CAUTION KEEP HANDS AND FACE AWAY FROM THE UNIT WHEN OPENING OR REMOVING THE SPATULA FROM THE UNIT. STEAM ESCAPING IS VERY HOT. MANUAL CONTROL • Turn unit on Wait 20 - 0 minutes for the unit to reach its operating temperature before using. - Page 8 10 seconds. Repeat process to program for additional programming Hi-Limit Reset A hi-limit reset monitors the temperature of the steam generator and will turn the power off to the unit to prevent it from overheating. If this occurs, the unit will automatically reset when it has had enough time to cool prior to returning to operation. If this occurs on a regular basis it may be a sign of a larger problem, call your service agent or Star Manufacturing at -800-807-9054. TOP LOADING COVER STOP SETTINGS Top Loading Fast Steamer models (FS & FS2) are designed with adjustable cover stops located on the back of the units. As shown...
- Page 9 4. Reinstall the unit, beginning with the Steam Vent. Monthly The Star Fast Steamer generates instant steam by means of its open generator, however the mineral deposits in the water are left behind. A certain amount of deposits are needed for proper operation, but a build-up of calcium & mineral deposits may cause poor performance. It is important to properly maintain you steamer to ensure quality operation. Depending on your specific water conditions and possibly any water filtration systems, you may need to clean your steamer more or less frequently.
-
Page 10: Generator Cover
Cleaning Steam Generator Steam Generator Steam Ports . Turn the unit OFF & unplug the unit from its power source. Water Inlet 2. Remove and clean the removable items listed on the maintenance components illustration for your specific model. Clean using warm water and mild detergent. DRY parts completely. . With the steam generator cool, use a wire brush or scrapper to loosen the mineral/ calcium deposits on the generator surface and steam ports. Remove the loose built-... - Page 11 CLEANING FRONT LOADING STEAMER COMPONENTS ILLUSTRATION Top Cover Wing Nut Steam Vent Generator Cover Diffuser Steam Ports Steam Generator Food Compartment Liner IL1352 Rack Typical Front Loading Steamer Shown Spatula Drip Pan...
-
Page 12: Operation Troubleshooting
OPERATION TROUBLESHOOTING DIAGNOSTICS FOR ELECTRONIC CONTROL STEAMERS Less than 50 Ohms of resistance, if Press the “TEMP” switch, Shorted Temperature Probe a temperature probe is detected, the the LED will display output power will be shut-off to all relays. “PrOB” Press the “TEMP” switch, if a temperature probe is detected, the Open-Circuit Temperature Probe the LED will display output power will be shut-off to all relays. “PrOB” No Heat/No Steam If relay malfunction is detected when the temperature is below 50°F (66°C) for The display will blink Relay Malfunction 0 minutes or reaches 500°F (260°C). “rELY” The output power will be shut-off to both relays unit the error no longer occurs. Probe Temperature is 200°F (9°C) less Program & Heat Indicator Heat / No Steam Temperature To Cool than the programmed set point. Light will Flash. If unit still does not operate contact the factory or one of its representatives or a local service company for service or required maintenance. - Page 13 LIMITED EQUIPMENT WARRANTY All workmanship and material in Star products have a one (1) year limited warranty on parts & labor in the United States and Canada. Such warranty is limited to the original purchaser only and shall be effective from the date the equipment is placed in service. Star's obligation under this warranty is limited to the repair of defects without charge, by the factory authorized service agency or one of its sub-agencies.
- Page 22 MODEL: FSF Front Loading Steamer Main Body Assembly STAR MANUFACTURING INTERNATIONAL, INC. SK2276 Rev. A 10/31/07...
-
Page 23: Parts List
FRONT LOADING 230/240V 2C-0 SCREW-MACH 8-2X/4 NPST FRONT LOADING IMPORTANT: WHEN ORDERING, SPECIFY VOLTAGE OR TYPE GAS DESIRED PAGE INCLUDE MODEL AND SERIAL NUMBER Some items are included for illustrative purposes only and in certain instances may not be available. Star Manufacturing International, Inc. -
Page 24: Main Body Assembly
MODEL FS1 & FS2 Main Body Assembly STAR MANUFACTURING INTERNATIONAL, INC. SK2281 Rev. - 7/31/07... - Page 25 ELEMENT FS 20V 800W FS-20V 2N-Z9984 ELEMENT FS2 20V 800W FS2-20V IMPORTANT: WHEN ORDERING, SPECIFY VOLTAGE OR TYPE GAS DESIRED PAGE INCLUDE MODEL AND SERIAL NUMBER Some items are included for illustrative purposes only and in certain instances may not be available. Star Manufacturing International, Inc.
- Page 26 Front Loading Top Loading Electronic Controls Manual Controls MODEL Fast Steamer Control Box Assemblies Direct Connect Water Supply STAR MANUFACTURING INTERNATIONAL, INC. SK2277 Rev. A 7/9/08...
- Page 27 Front Loading Top Loading 10 19 Electronic Controls Manual Controls MODEL Fast Steamer Control Box Assemblies STAR MANUFACTURING INTERNATIONAL, INC. Reservoir Water Supply SK2385 Rev. - 7/16/08...
- Page 28 FSFRT-208/240V C9-Z048 PROBE/BULD HOLD DOWN BRKT FSFD-208/240V, FSFDT-208/240V, FSFR-208/240V, FSFRT-208/240V IMPORTANT: WHEN ORDERING, SPECIFY VOLTAGE OR TYPE GAS DESIRED PAGE INCLUDE MODEL AND SERIAL NUMBER Some items are included for illustrative purposes only and in certain instances may not be available. Star Manufacturing International, Inc.
- Page 29 Description and Model Designation Unit A5-RG206 CORD SET 20V W/TERMINALS, 20V C9-FS057 CORD SET 20VCSA 20VC C9-FS062 CORD SET 2/ 6-20 6' , 208/240V 208/240V 2K-Z2895 BUSHING HEYCO OCB-500 FS1D, FS1DT, FS1R, FS1RT, FS2D, FS2DT, FS2R, FS2RT 2K-Y6764 BUSHING - STRAIN RELIEF FSFD, FSFDT, FSFR, FSFRT C9-FS059 CORD SET 4/ 5-20P 6FT 20V-CUL C9-Z0457 CORDSET MTG PLATE .88X.77 FSD-20V, FSDT-20V, FSR-20V, FSRT-20V, FS2D-20V, FS2DT-20V, FS2R-20V, FS2RT-20V C9-Z0458 CORDSET MTG PLATE .88X.844...
- Page 30 MODEL FS1 & FS2 Hinge Bracket Assembly STAR MANUFACTURING INTERNATIONAL, INC. SK2315 Rev. - 8/28/07...
- Page 31 SCREW SHLDR 8-2X/6X ALL FS & FS2 C9-Z242 HINGE STOP BRACKET ALL FS & FS2 IMPORTANT: WHEN ORDERING, SPECIFY VOLTAGE OR TYPE GAS DESIRED PAGE INCLUDE MODEL AND SERIAL NUMBER Some items are included for illustrative purposes only and in certain instances may not be available. Star Manufacturing International, Inc.
- Page 32 STAR MANUFACTURING GROUP Star - Holman - Lang - Wells - Bloomfield 10 Sunnen Drive, St. Louis, MO 63143 U.S.A. (800) 807-9054 (314) 781-2777 Parts & Service (800) 807-9054 www.star-mfg.com...
