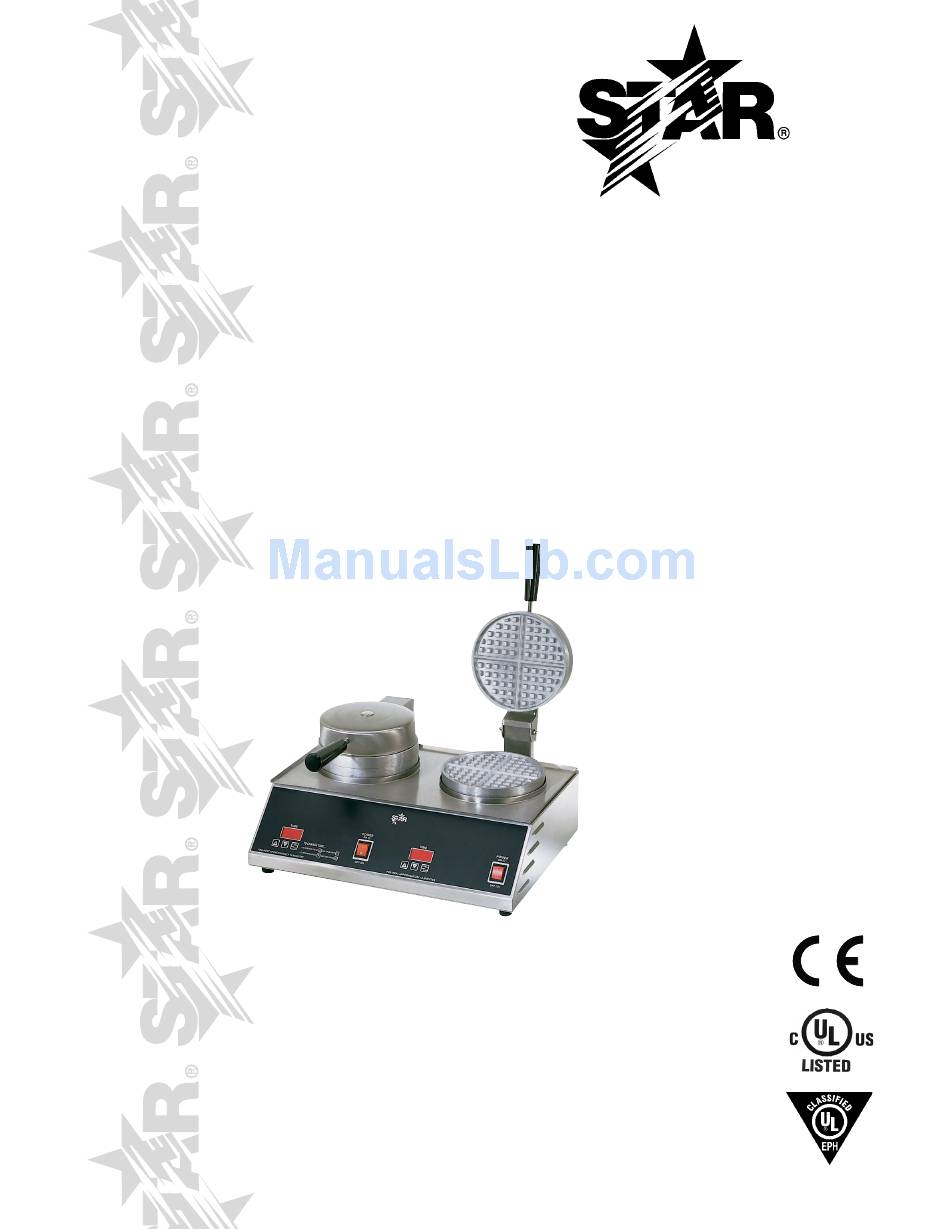

WAFFLE
BAKERS
MODEL
SWCBE
SWB7R1E
SWB7R2E
SWB7RBE
SWB8SQE
SWB8RBLE
Installation and
Operation
Instructions
2M-Z7728 Rev. H 11/26/2014

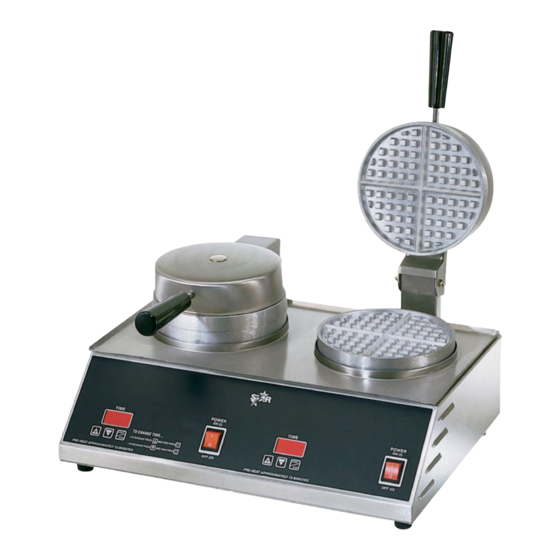

SWB7R2E
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SWCBE and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Star SWCBE

  • Page 1 WAFFLE BAKERS MODEL SWCBE SWB7R1E SWB7R2E SWB7RBE SWB8SQE SWB8RBLE Installation and Operation Instructions 2M-Z7728 Rev. H 11/26/2014 SWB7R2E...
  • Page 2 RETAIN THIS MANUAL FOR FUTURE REFERENCE NOTICE Using any part other than genuine Star factory supplied parts relieves the manufacturer of all liability. Star reserves the right to change specifications and product design without notice. Such revisions do not entitle the buyer to corresponding changes, improvements, additions or replacements for previously purchased equipment.
  • Page 3 Installed Shipping 120V 1,320 11.0 NEMA 5-15P 208V NEMA 6-15P 29lb 32lb 10” 18 1/4” 12 1/2” 25 1/2” Cone SWCBE (13kg) (14.5 kg) (25.5 cm) (46.3 cm) (31.7 cm) (64.7 cm) 230V 1,210 CEE7-7 240V 1,320 NEMA 6-15P 120V...
  • Page 4 GENERAL INFORMATION This equipment is designed and sold for commercial use only by personnel trained and experienced in its operation and is not sold for consumer use in and around the home nor for use directly by the general public in food service locations. CAUTION INSTALLATION For your protection, we recommend that a qualified electrician install this appliance.
  • Page 5: Setting The Time

    OPERATION MAKING WAFFLES Turn the unit on and allow to pre-heat for 15 minutes with the grids closed. Once the baker has reached proper temperature you can proceed as follows: 1. Brush on releasing agent, if needed 2. Lift the lid, pour in mix and close. (Belgian units wait 10 seconds) 3.
  • Page 6 CLEANING For non-coated grids: Clean outside of baker every day that it is in use. Do not clean grids unless a buildup of carbon forms. In order to remove carbon from grids, unplug the unit, use a carbon releasing agent that is safe for aluminum, and is approved by your corporate office.

This manual is also suitable for:

Swb7r1eSwb7rbeSwb7r2eSwb8sqeSwb8rble
