Star FS1R Operation Instructions Manual
Fast steamer
Hide thumbs
Also See for FS1R:
- Specification sheet (2 pages) ,
- Installation and operation instructions manual (33 pages)
Related Manuals for Star FS1R
Summary of Contents for Star FS1R

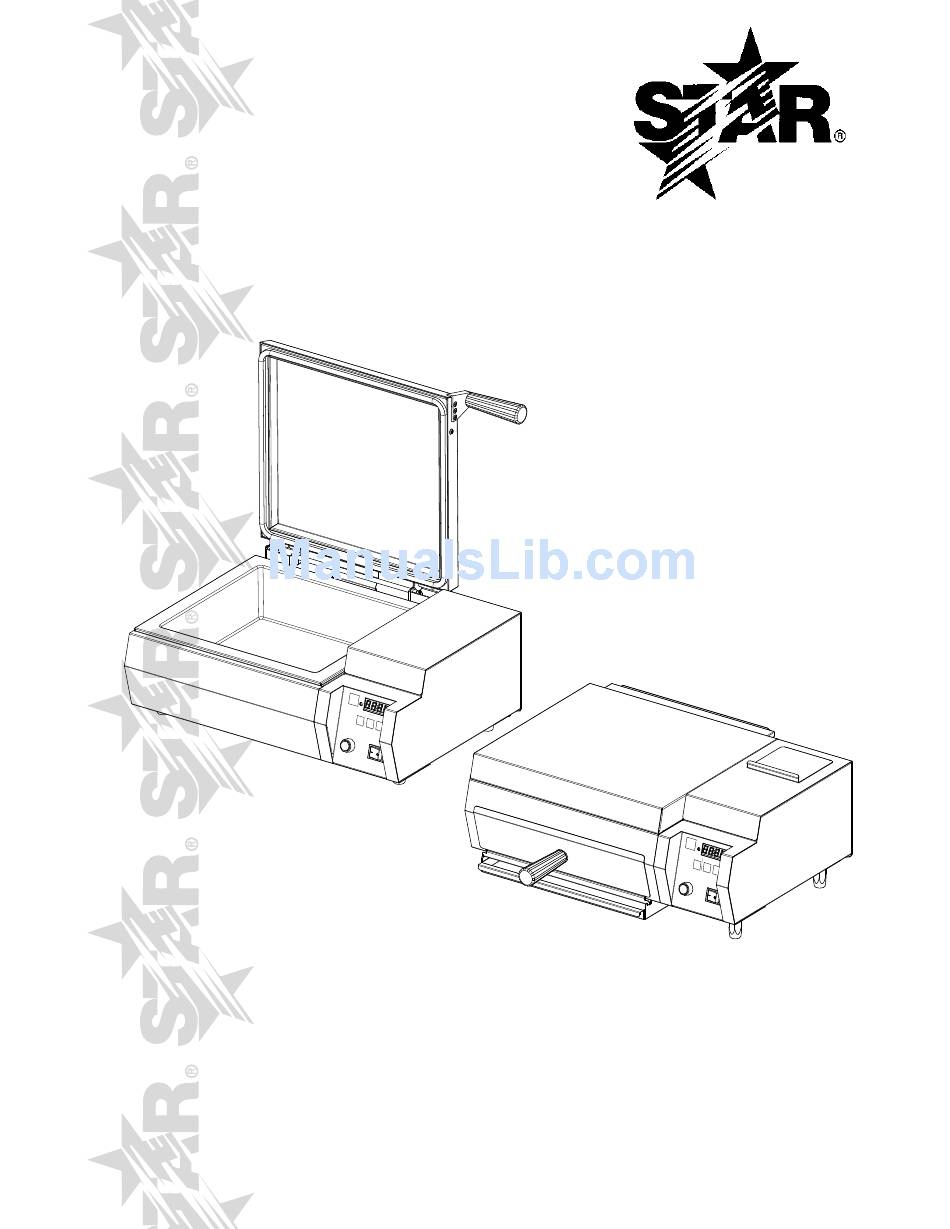

- Page 1 FAST STEAMER MODEL FS1R, FS1D, FS1RT, FS1DT FS2R, FS2D, FS2RT, FS2DT FSFR, FSFD, FSFRT, FSFDT Installation and Operation Instructions 2M-Z10887 Rev. E 10/24/2011 FS2DT FSFRT...
-
Page 2: Safety Symbol
RETAIN THIS MANUAL FOR FUTURE REFERENCE NOTICE Using any part other than genuine Star factory supplied parts relieves the manufacturer of all liability. Star reserves the right to change specifications and product design without notice. Such revisions do not entitle the buyer to corresponding changes, improvements, additions or replacements for previously purchased equipment. -
Page 3: Specifications
TOP LOADING “A” Width “B” Height “C” Depth Approx. Shp Direct Connect(D) Model No. Pan Size Inches/CM Inches/CM Inches/CM Weight Water Reservoir (R) FS1R FS1D 18.8in / 48lbs / 47.8cm 21.8kg FS1RT FS1DT 10.5in / 17.2in / 26.7cm 43.7cm FS2R FS2D 22.4in /... -
Page 4: General Information
GENERAL INFORMATION This equipment is designed and sold for commercial use only by personnel trained and experienced in its operation and is not sold for consumer use in and around the home nor for use directly by the CAUTION general public in food service locations. Before using your new equipment read and understand all the instructions &... -
Page 5: Installation
INSTALLATION ELECTRICAL CONNECTION For your protection, we recommend that a qualified electrician install this appliance. The electrician should be familiar with electrical installations and your local electrical requirements. Proper connections and power supply are essential for efficient performance. The supply circuit should be properly fused as required by local electrical code. -
Page 6: Water Connection
The Star Fast-Steamer has a water injection system, to ensure your new equipment works at its premium, we recommend that a water softener is used in areas where hard water is present. Contact your local water equipment system provider to assist you in determining your specific water quality, or contact Star Technical support for assistance, 314-678-6303. -
Page 7: Operating Procedure
OPERATING PROCEDURE Connect your unit to a wall outlet which will supply the unit with the proper voltage specified on the data plate. If you have a reservoir unit, verify the water level, add if water is low. KEEP HANDS AND FACE AWAY FROM THE UNIT WHEN OPENING OR REMOVING THE SPATULA FROM THE UNIT. - Page 8 If this occurs, the unit will automatically reset when it has had enough time to cool prior to returning to operation. If this occurs on a regular basis it may be a sign of a larger problem, call your service agent or Star Manufacturing at 314-678-6303.
- Page 9 Reinstall the unit, beginning with the Steam Vent. Monthly The Star Fast Steamer generates instant steam by means of its open generator, however the mineral deposits in the water are left behind. A certain amount of deposits are needed for proper operation, but a build-up of calcium &...
- Page 10 Cleaning Steam Generator Steam Generator Turn the unit OFF & unplug the unit from its Steam Ports power source. Water Inlet Remove and clean the removable items listed on the maintenance components illustration for your specific model. Clean using warm water and mild detergent. DRY parts completely.
- Page 11 CLEANING FRONT LOADING STEAMER COMPONENTS ILLUSTRATION Top Cover Wing Nut Steam Vent Generator Cover Diffuser Steam Ports Steam Generator Food Compartment Liner IL1352 Rack Typical Front Loading Steamer Shown Spatula Drip Pan...
-
Page 12: Operation Troubleshooting
OPERATION TROUBLESHOOTING DIAGNOSTICS FOR ELECTRONIC CONTROL STEAMERS Less than 50 Ohms of resistance, if Press the “TEMP” switch, Shorted Temperature Probe a temperature probe is detected, the the LED will display output power will be shut-off to all relays. “PrOB” Press the “TEMP”... - Page 13 LIMITED EQUIPMENT WARRANTY All workmanship and material in Star products have a one (1) year limited warranty on parts & labor in the United States and Canada. Such warranty is limited to the original purchaser only and shall be effective from the date the equipment is placed in service. Star's obligation under this warranty is limited to the repair of defects without charge, by the factory authorized service agency or one of its sub-agencies.
-
Page 14: Wiring Diagram
CONTROL PANEL MOUNTING PLATE ELECTRONIC CONTROL (BACK SIDE) POWER SWITCH PUSH BUTTON E7 E6 E5 BLACK WIRE (TYP) WHITE WIRE (TYP) TRANSFORMER CORDSET 120V/10V 120V: NEMA 5-15P (SHOWN) 120VC: NEMA 5-20P (NOT SHOWN) RTD PROBE SOLENOID RELAY HEATER RELAY 120V HEATING SOLENOID HIGH LIMIT... - Page 15 120VC: NEMA 5-20P (NOT SHOWN) STEAM GENERATOR THERMOSTAT STD MOUNTED ABOVE HIGH LIMIT STEAM GENERATOER HIGH LIMIT THERMOSTAT STD MOUNTING BELOW THERMOSTAT HEATING ELEMENT CONTROL BOX MOUNTING PLATE WIRING DIAGRAM FS1R & FS2R Sheet 4 of 8 SK2250 Rev. C 8/30/2007...
- Page 16 CONTROL PANEL MOUNTING PLATE ELECTRONIC CONTROL (BACK SIDE) POWER SWITCH PUSH BUTTON E7 E6 E5 BLACK WIRE (TYP) WHITE WIRE (TYP) CORDSET FOR 208/240V TRANSFORMER NEMA 6-20P 230V/10V SOLENOID RTD PROBE MOUNTING POSITION (SHOWN ON SIDE). SOLENOID RELAY HEATER RELAY HEATING ELEMENT 12 V...
- Page 17 CONTROL PANEL MOUNTING PLATE ELECTRONIC CONTROL (BACK SIDE) POWER SWITCH PUSH BUTTON E7 E6 E5 BLACK WIRE (TYP) WHITE WIRE (TYP) CORDSET FOR 208/240V INLINE FUSEHOLDER W/4AMP FUSE NEMA 6-20P TRANSFORMER 40 VA 230V/12V HIGH LIMIT THERMOSTAT DETAIL RTD PROBE HEATING ELEMENT PUMP...
- Page 18 MODEL: FSF Front Loading Steamer Main Body Assembly STAR MANUFACTURING INTERNATIONAL, INC. SK2276 Rev. B 1/18/13...
-
Page 19: Parts List
SCREW-MACH 8-32X3/4 NPST FRONT LOADING IMPORTANT: WHEN ORDERING, SPECIFY VOLTAGE OR TYPE GAS DESIRED PAGE INCLUDE MODEL AND SERIAL NUMBER Some items are included for illustrative purposes only and in certain instances may not be available. Star Manufacturing International, Inc. - Page 20 MODEL FS1 & FS2 Main Body Assembly STAR MANUFACTURING INTERNATIONAL, INC. SK2281 Rev. A 10/25/11...
- Page 21 PARTS LIST October 25, 2011, Rev. E Model: FS1R, FS1D, FS1RT, FS1DT, FS2R, FS2D, FS2RT, FS2DT, Top Loading Fast Steamer Main Body Fig No Part Number Description Application 2C-4063 SCREW 10-24X1/2 SS THP FS1 & FS2 C9-FS0364 COVER SKIN ASSY...
- Page 22 Front Loading Top Loading Electronic Controls Manual Controls MODEL Fast Steamer Control Box Assemblies Direct Connect Water Supply STAR MANUFACTURING INTERNATIONAL, INC. SK2277 Rev. B 6/21/12...
- Page 23 Front Loading Top Loading 10 19 Electronic Controls Manual Controls MODEL Fast Steamer Control Box Assemblies STAR MANUFACTURING INTERNATIONAL, INC. Reservoir Water Supply SK2385 Rev. A 6/21/12...
- Page 24 2C-Z4063 SERIES FS1DT-120V,FS2DT-120V, FSFDT-208/240V, FS1D-120V, FS2D-120V, FSFD- C9-FS0300 CB COVER ASSEMBLY DC DIRECT CONNECT 208/240V CONTROL BOX COVER ASSY STEAMER FS1RT-120V, FS2RT-120V, FSFRT-208/240V, FS1R-120V, FS2R-120V, FSFR- C9-FS0305 W/RESERVIOR 208/240V FS1DT-120V, FS2DT-120V, FSFDT-208/240V, FS1RT-120V, FS2RT-120V, FSFRT- 2E-Z10158 RELAY, DPST-NO SEALED 208/240V...
- Page 25 CORD SET 120VCSA 120VC C9-FS0362 CORD SET 12/3 6-20 6’ , 208/240V 208/240V 2K-Z2895 BUSHING HEYCO OCB-500 FS1D, FS1DT, FS1R, FS1RT, FS2D, FS2DT, FS2R, FS2RT 2K-Y6764 BUSHING - STRAIN RELIEF FSFD, FSFDT, FSFR, FSFRT C9-FS0359 CORD SET 14/3 5-20P 6FT 120V-CUL...
- Page 26 MODEL FS1 & FS2 Hinge Bracket Assembly STAR MANUFACTURING INTERNATIONAL, INC. SK2315 Rev. - 8/28/07...
- Page 27 ALL FS1 & FS2 2A-Z10093 SCREW SHOULDER 8-32X3/16 ALL FS1 & FS2 C9-Z10452 COVER STOP FS1 FS2 ALL FS1 & FS2 Some items are included for illustrative purposes only and in certain instances may not be available. Star Manufacturing International, Inc.
- Page 28 STAR INTERNATIONAL HOLDINGS INC. COMPANY Star - Holman - Lang - Wells - Bloomfield - Toastmaster 10 Sunnen Drive, St. Louis, MO 63143 U.S.A. (314) 678-6303 www.star-mfg.com...
