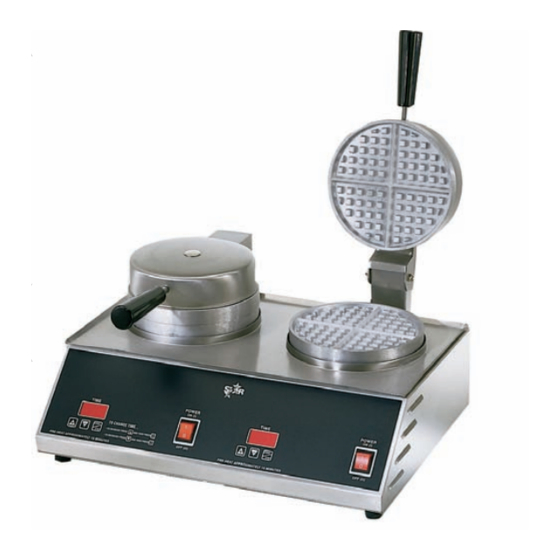

  • Page 1 WAFFLE BAKERS NON-ELECTRONIC MODELS SWCB, SWB7R1 SWB7R2, SWB7RB SWB7RBS, SWB8SQ SWB8RBD, SWB8RBL Installation and Operation Instructions 2M-Z1736 Rev. K 6/11/08 SWB7R2...
  • Page 2: Safety Symbol

    RETAIN THIS MANUAL FOR FUTURE REFERENCE NOTICE Using any part other than genuine Star factory supplied parts relieves the manufacturer of all liability. Star reserves the right to change specifi cations and product design without notice. Such revisions do not entitle the buyer to corresponding changes, improvements, additions or replacements for previously purchased equipment.
  • Page 3: General Information

    GENERAL INFORMATION CAUTION T his equipment is designed and sold for commercial use only by personnel trained and experienced in its operation and is not sold for consumer use in and around the home nor for use directly by the general public in food service locations. B efore using your new equipment, read and understand all the instructions & labels associated with the unit prior to putting it into operation. Make sure all people associated with its use understand the units operation & safety before they use the unit. A ll shipping containers should be checked for freight damage both visible and concealed. This unit has been tested and carefully packaged to insure delivery of your unit in perfect condition. If equipment is received in damaged condition, either apparent or concealed, a claim must be made with the delivering carrier. C oncealed damage or loss - if damage or loss is not apparent until after equipment is unpacked, a request for inspection of concealed damage must be made with carrier within 5 days. Be certain to retain all contents plus external and internal packaging materials for inspection. The carrier will make an inspection and will supply necessary claim forms. GENERAL INSTALLATION DATA For your protection, we recommend that a qualified electrician install this appliance. The electrician should be familiar with electrical installations and your local electrical requirements. Proper connections and power supply are essential for efficient performance. The supply circuit should be properly fused as required by electrical code. Plug the unit into a proper A.C. voltage wall outlet only.
  • Page 4: Setting The Time

    RELEASE AGENT CAUTION If you find it necessary to use a release agent to keep waffles from sticking, you should brush it on. Spraying may oversaturate the grids and the excess has the possibility of building up inside the baker and causing damage. If you only have a spray type release agent, try spraying it into a container and using the contents with a pastry brush. SEASONING WAFFLE GRIDS (Not applicable to Teflon coated grids) ® With a pastry brush, apply vegetable oil, butter, or grid release agent on both grids. Turn power on and allow to preheat for twenty minutes. Lift the lid and re-apply vegetable oil, butter, or grid release agent. Allow the unit to heat for five more minutes. The baker is now ready for use.
  • Page 5: Helpful Hints

    HELPFUL HINTS . During long slack periods of the day, turn off the baker. During short slack periods, leave unit on with the grids closed. This will help minimize carbon buildup. . Do not store batter in the refrigerator and expect the same speed in baking. Cold batter will take longer to bake. 3. For proper release of waffles it is important that the batter contain the proper amount of shortening. CLEANING For non-coated grids: Clean outside of baker every day that it is in use. Clean grids with hot water and mild detergent and a nylon brush to prevent a buildup of carbon from forming. In order to remove carbon from grids, unplug the unit, place ammonia soaked cloth over bottom grid, close and leave overnight. A nylon brush may then be used to remove the carbon buildup. If you use a commercial carbon remover, make sure that it is safe for aluminum. CAUTION DO NOT CLEAN USING A WATER JET OR SIMILAR DEVICE FOR CLEANING. DO NOT IMMERSE IN WATER AT ANY TIME.
  • Page 6 LIMITED EQUIPMENT WARRANTY All workmanship and material in Star products have a one (1) year limited warranty on parts & labor in the United States and Canada. Such warranty is limited to the original purchaser only and shall be effective from the date the equipment is placed in service. Star's obligation under this warranty is limited to the repair of defects without charge, by the factory authorized service agency or one of its sub-agencies.
  • Page 13 38 39 40 MODEL: SWB7RB, SWB7RBS, SWB8RBL, STAR MANUFACTURING INTERNATIONAL, INC. SWB7RBE, SWB8RBLE SK1595 REV. C 08/14/01...
  • Page 14: Parts List

    TRANSFORMER 5/0V VA 0V E-05-0-050 TRANSFORMER 0V/0V VA 0V E-Z TRANSFORMER 0V/0V CE 0V CE IMPORTANT: WHEN ORDERING, SPECIFY VOLTAGE OR TYPE GAS DESIRED PAGE INCLUDE MODEL AND SERIAL NUMBER Some items are included for illustrative purposes only and in certain instances may not be available. Star Manufacturing International, Inc.
  • Page 15 IO-E500 SLEEVING # .08ID GLASS B-Z5 .5 FT SLEEVING FOR TOP WIRES IMPORTANT: WHEN ORDERING, SPECIFY VOLTAGE OR TYPE GAS DESIRED PAGE INCLUDE MODEL AND SERIAL NUMBER Some items are included for illustrative purposes only and in certain instances may not be available. Star Manufacturing International, Inc.
  • Page 16 For Illustrative purposes, only one grid assembly is shown. 36 37 38 MODEL: SWB7R, SWB7R1, SWB7R1E, SWB7R2E STAR MANUFACTURING INTERNATIONAL, INC. SK1605 REV. A 08/28/98...
  • Page 17 SIGN SWVR M-Z SIGN SWBR IMPORTANT: WHEN ORDERING, SPECIFY VOLTAGE OR TYPE GAS DESIRED PAGE INCLUDE MODEL AND SERIAL NUMBER Some items are included for illustrative purposes only and in certain instances may not be available. Star Manufacturing International, Inc.
  • Page 18 35 36 37 MODEL SWB8SQ, SWB8SQE STAR MANUFACTURING INTERNATIONAL, INC. SK1606 REV. A 5/21/1999...
  • Page 19 M-Z08 SIGN SWB8SQ B-0-WB-00 KIT;ARM TERMINAL ASSEMBL IMPORTANT: WHEN ORDERING, SPECIFY VOLTAGE OR TYPE GAS DESIRED PAGE INCLUDE MODEL AND SERIAL NUMBER Some items are included for illustrative purposes only and in certain instances may not be available. Star Manufacturing International, Inc.
  • Page 20: Locking Mechanism

    LOCKING MECHANISM 38 39 40 MODEL: SWCB STAR MANUFACTURING INTERNATIONAL, INC. SK1604 REV. A 5-20-99...
  • Page 21 PARTS LIST November , 008, Rev K SWCB Waffle Bakers MODEL Number Key Part Unit Number Number Description I-Z005 FOOT RUBBER B-00 LEAD IN CORD 0V 5A B-08 LEAD IN CORD 0V B-0 LEAD IN CORD 0V CE B-Z COVER-BOTTOM E-Z858 SWITCH 0A/0V MOLVENO J-Z8 TIMER CONTROL B-00 BODY ASSEMBLY B-Z80 FRONT SUPPORT P-Z5 PLUG CAP / C-Z COUPLING /-0 A-0-WB-00 LOCK BULLET B-Z0...
  • Page 23 FUSE CARRIER 0V CE E-Z FUSE 8A 50V 0V CE M-Z08 SIGN IMPORTANT: WHEN ORDERING, SPECIFY VOLTAGE OR TYPE GAS DESIRED PAGE INCLUDE MODEL AND SERIAL NUMBER Some items are included for illustrative purposes only and in certain instances may not be available. Star Manufacturing International, Inc.
