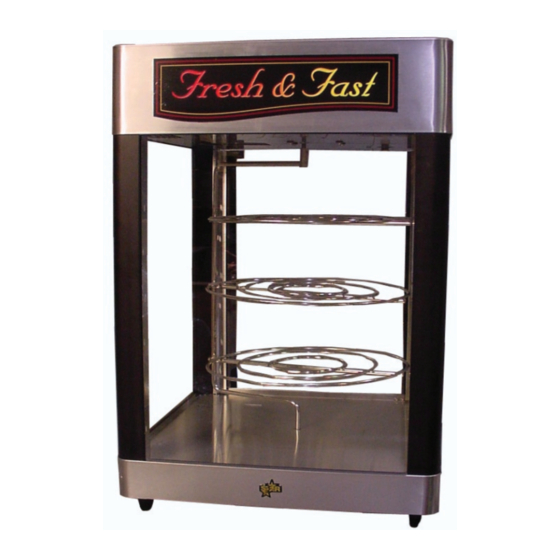

Hot food humidity cabinet

Advertisement

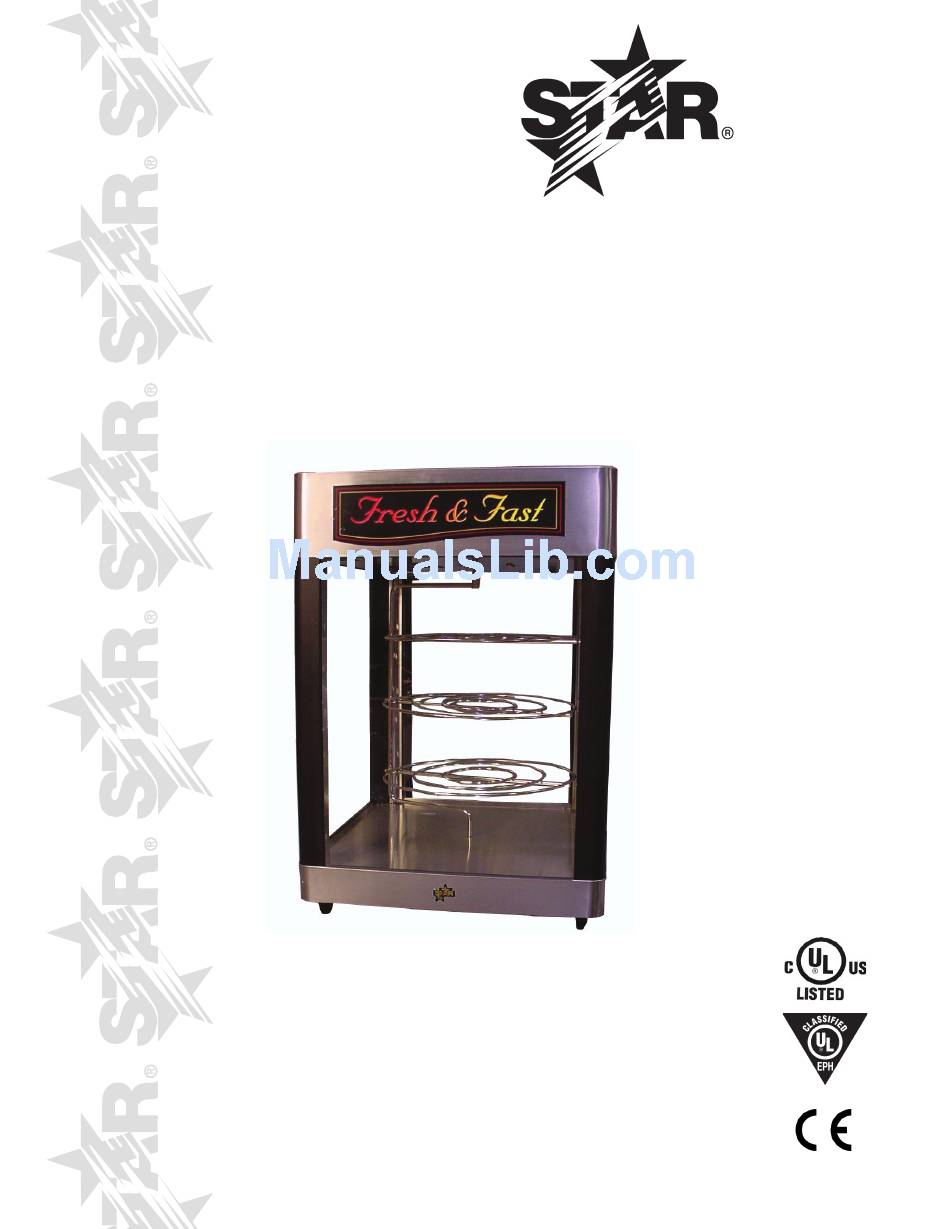

HOT FOOD
HUMIDITY CABINET
MODEL
HFD2A-120V/230V
HFD3A-120V/230V
Installation and
Operation
Instructions
2M-Z3437 Rev. P 7/19/2013
HFD2A
230V ONLY

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HFD2A and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Star HFD2A

  • Page 1 HOT FOOD HUMIDITY CABINET MODEL HFD2A-120V/230V HFD3A-120V/230V Installation and Operation Instructions 2M-Z3437 Rev. P 7/19/2013 HFD2A 230V ONLY...
  • Page 2: Safety Symbol

    RETAIN THIS MANUAL FOR FUTURE REFERENCE NOTICE Using any part other than genuine Star factory supplied parts relieves the manufacturer of all liability. Star reserves the right to change specifications and product design without notice. Such revisions do not entitle the buyer to corresponding changes, improvements, additions or replacements for previously purchased equipment.
  • Page 3: Specifications

    SPECIFICATIONS HFD-2A SERIES Capacity: 72 large pretzels/bagels (P models), 3 6" pizzas (CR models) 3 Multipurpose Shelves, additional pizza shelves can be added Electrical: 20 volt, 60 hertz, single phase, 550 watts, 2.9 amps 230 volt, 60 hertz, single phase, 550 watts, 6.7 amps Cord Length - 6 ft.
  • Page 4: General Installation Instructions

    3 wire grounded, polarized receptacle. 230V models must be connected to a 230V, 60Hz, AC single phase service. STAR Manufacturing recommends using TAP water for the best performance of your equipment. DO NOT CONNECT TO ANY OTHER TYPE OF CURRENT SOURCE OR THE MACHINE WILL BE SERIOUSLY DAMAGED.
  • Page 5: Operating Procedures

    GENERAL OPERATING INSTRUCTIONS 1. Install inside food rack or pizza/pretzel shelves depending on the model unit purchased. The shelves are in the enclosed accessory carton (See Figure 1). 2. Plug the unit into a grounded 120 V.A.C. receptacle (230V receptacle for European models).
  • Page 6: Door Reversal

    DOOR REVERSAL Doors are supplied from the factory mounted on the left side of the cabinet but can be mounted on the right side by following the instructions listed below. DOOR REMOVAL (See Figure 3) . Remove the top left mounting bracket while Upper Door holding door.
  • Page 7: Troubleshooting Guide

    TROUBLE SHOOTING GUIDE This guide is recommended for use by a qualified service technician familiar with electrical commercial equipment. 1. Unit does not operate. -Be sure unit is plugged into correct supply voltage. -Be sure power switch is turned on. -Disconnect power cord and check power switch and wiring connections for bad connections.
  • Page 8 LIMITED EQUIPMENT WARRANTY All workmanship and material in Star products have a one (1) year limited warranty on parts & labor in the United States and Canada. Such warranty is limited to the original purchaser only and shall be effective from the date the equipment is placed in service. Star's obligation under this warranty is limited to the repair of defects without charge, by the factory authorized service agency or one of its sub-agencies.
  • Page 9 AIR ELEMENT LAMP RELAY MOTOR BLACK BLUE MODEL: HFD-2A THIS DRAWING CONTAINS INFORMATION CONFIDENTIAL TO STAR MFG. INT'L. INC. STAR MANUFACTURING INTERNATIONAL INC. NO REPRODUCTION OR DISCLOSURE OF ITS CONTENTS IS PERMITTED. SK1812 Rev C 10/06/2005 PROXIMITY DOOR SWITCH N.C.
  • Page 10 ILLUSTRATIVE PURPOSES ONLY AND IN CERTAIN INSTANCES MAY NOT BE AVAILABLE INSTALLATION OF 4 RACKS MODEL: HFD-2 STAR MANUFACTURING INTERNATIONAL INC. THIS DRAWING CONTAINS INFORMATION CONFIDENTIAL TO STAR MFG. INT'L. INC. SK1858 Rev - 04/26/2001 NO REPRODUCTION OR DISCLOSURE OF ITS CONTENTS IS PERMITTED.
  • Page 11 This drawing contains information confidential to Star Manufacturing International, Inc. No reproduction or disclosure of its contents is permitted. SOME ITEMS ARE INCLUDED FOR ILLUSTRATIVE PURPOSES ONLY AND IN CERTAIN INSTANCES MAY NOT BE AVAILABLE STAR MANUFACTURING INTERNATIONAL, INC. MODEL: HFD-2A,-3A SK1714 Rev.
  • Page 12 HOLDER SET SCREW 2C-Z5026 8-32 X 1/2 SS SHCS This drawing contains information confidential to Star Manufacturing International, Inc. No reproduction or disclosure of its contents is permitted. SOME ITEMS ARE INCLUDED FOR ILLUSTRATIVE PURPOSES ONLY AND IN CERTAIN INSTANCES MAY NOT BE AVAILABLE STAR MANUFACTURING INTERNATIONAL, INC.
  • Page 13: Parts List

    PARTS LIST August 4, 203, Rev. P MODEL HFD2A and HFD3A HUMIDIFIED CABINET Fig No Part No Description Application C3-G8021 HFD-2A 2E-05-07-0169 CORD ASSEMBLY HFD-3A A4-120165 230V 2K-Y2967 BUSHING - HEYCO 7K-2 BLK 2A-6904 FOOT D5-Y9623 HFD-2A GLASS CHANNEL 2I-Y7838...
  • Page 14 PARTS LIST August 4, 203, Rev. P MODEL HFD2A and HFD3A HUMIDIFIED CABINET Fig No Part No Description Application D5-Z3543 CONTROL MOUNTING BRACKET 2E-Z3287 CONTROL BOARD (120V/230V) 2S-Z3608 BULB - STANDARD 75 WATT (120V) 120V 2S-Z0630 BULB - STANDARD 100 WATT (230V)
  • Page 16 STAR INTERNATIONAL HOLDINGS INC. COMPANY Star - Holman - Lang - Wells - Bloomfield - Toastmaster 10 Sunnen Drive, St. Louis, MO 63143 U.S.A. (314) 678-6303 www.star-mfg.com...
