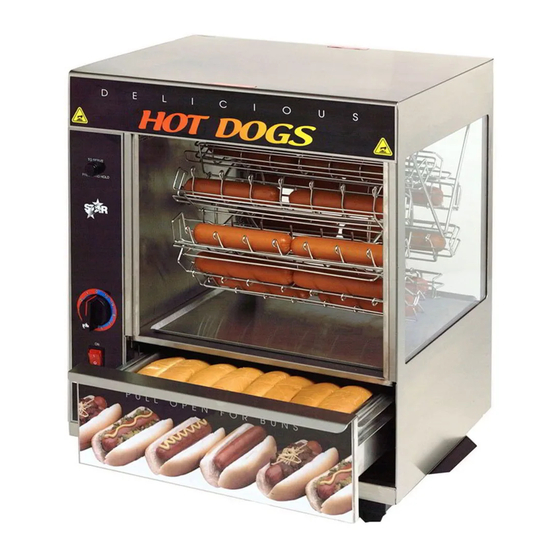

Star BROIL-O-DOG 174CBA Installation And Operation Instructions Manual

Star BROIL-O-DOG 174CBA Installation And Operation Instructions Manual

Hide thumbs Also See for BROIL-O-DOG 174CBA:

Advertisement

BROIL-O-DOG
MODEL
174CBA, 174SBA
175CBA, 175SBA
Installation and
Operation
Instructions
2M-Z3755 Rev. M 12-2018
175CBA
(120V Only)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BROIL-O-DOG 174CBA and is the answer not in the manual?

Questions and answers

Daryl
January 25, 2025

How do you put it together

1 comments:
Mr. Anderson
February 10, 2025

To assemble the Star BROIL-O-DOG 174CBA, follow these steps:

1. Clean the Unit: Wipe down the unit before use (refer to cleaning instructions).
2. Install the Glass Panels:
- Place the 1/4" thick glass in the side location, resting in the track.
- Place the 1/8" thick glass on the front of the unit.
3. Install the Wire Shaft Support:
- Align the support with the pre-punched mounting holes in the ceiling of the unit and secure it.
4. Install the Hot Dog Wheel:
- Hold the wire shaft support against the side glass.
- Insert the slotted end of the shaft into the motor coupling on the left side.
- Rotate the shaft until it engages with the coupling pin.
- Raise the grooved end of the shaft and fit it into the wire shaft support on the right side.
5. Position the Unit:
- Place the unit on a level counter in a visible location to attract customers.
6. Ensure Safety:
- Take precautions to prevent customers from touching hot surfaces.

The unit is now assembled and ready for use.

This answer is automatically generated

Summary of Contents for Star BROIL-O-DOG 174CBA

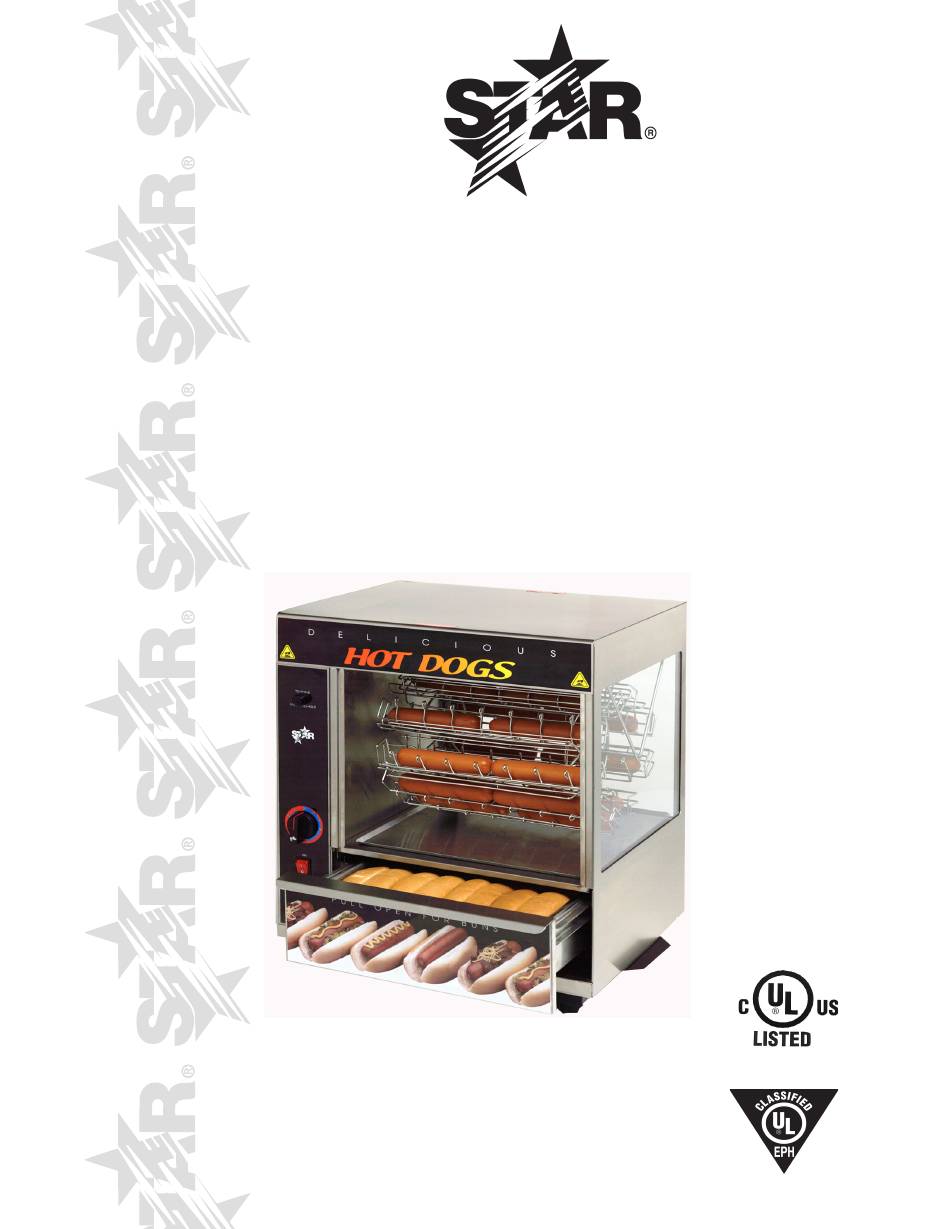

  • Page 1 BROIL-O-DOG MODEL 174CBA, 174SBA 175CBA, 175SBA Installation and Operation Instructions 2M-Z3755 Rev. M 12-2018 175CBA (120V Only)
  • Page 2: Safety Symbol

    RETAIN THIS MANUAL FOR FUTURE REFERENCE NOTICE Using any part other than genuine Star factory supplied parts relieves the manufacturer of all liability. notice. Such revisions do not entitle the buyer to corresponding changes, improvements, additions or replacements for previously purchased equipment.
  • Page 3: Specifications

    SPECIFICATIONS 174SBA Type: Spike Wheel Capacity: 24 Hot Dogs, 12 Buns Electrical: 120 volt, 60 hertz, single phase, 1150 watts, 9.58 amps 230 volt, 60 hertz, single phase, 1060 watts, 4.61 amps Cord Length - 4 ft. Plug: 120V NEMA Spec - NEMA 5-15P 230V CEE-7/VII rated 16A 250V Dimensions: 13 1/2"W x 14 1/2"D x 24"H...
  • Page 4: Installation

    This equipment is designed and sold for commercial use only by personnel trained and experienced in its operation and is not sold for consumer use in and around the home nor for use directly by the general public in food service locations. CAUTION Before using your new equipment, read and understand all the instructions &...
  • Page 5: General Operating Procedures

    To reinsert the drawer, first hook the drawer slide over the front roller then the back roller (See Figure1-Figure 3). TO AVOID COMBUSTION, REPLACEMENT GLASS MUST BE LOW E TEMPERED, TIN OXIDE COATED. CALL STAR SERVICE HELP DESK. CAUTION...
  • Page 6 Refer to the installation procedures located on page 4. To prevent surounding areas from getting to hot, use only a low E Tempered, oxide coated glass (reflective side facing inward) when replaceing glass. This glass can be purchased by contacting Star (contact information located on the inside front cover).
  • Page 7 Star’s discretion or water connection. Star is not liable for any unit which has have the parts replaced or repaired by Star or a Star-authorized service been mishandled, abused, misapplied, subjected to chlorides, harsh agency.
  • Page 9 SOME ITEMS ARE INCLUDED FOR ILLUSTRATIVE PURPOSES ONLY AND IN CERTAIN INSTANCES MAY NOT BE AVAILABLE This drawing contains information confidential to Star Manufacturing International, Inc. No reproduction or disclosure of its contents is permitted. STAR MANUFACTURING INTERNATIONAL, INC. MODEL 174CBA,174SBA,175CBA,175SBA SK1793 REV.
  • Page 10: Parts List

    PARTS LIST October 01, 2015, Rev. L Model 174CBA/SBA, 174CBA/SBA Hot Dog Broiler Fig No. Part Number Description Application A1-BD1009 174CBA/SBA ASSY-ELEMENT BARRIER A1-BD1022 175CBA/SBA A1-Z3693 174CBA/SBA ELEMENT PLATE A1-Z4442 175CBA/SBA A1-Z3795 174CBA/SBA SPACER BRACKET A1-Z4447 175CBA/SBA 2N-Y5313 ELEMENT-HEATING 120V 174CBA/SBA-120V 2N-Z2754 ELEMENT 1050W 240V...
  • Page 11 PARTS LIST October 01, 2015, Rev. L Model 174CBA/SBA, 174CBA/SBA Hot Dog Broiler Fig No. Part Number Description Application 2K-Y1139 BUSHING HEYCO SB500-6 2K-Y3240 BUSHING HEYCO SR 17-2 2E-Z5375 TERMINAL BLOCK-3 POLE 2I-H6579 GROMMET-LAVELLE #8051 BL 2U-Z3642 MOTOR 2.4RPM 240V 50/60HZ 230V D5-Z17319 MOTOR 120V 60HZ (NO FAN)
  • Page 12 STAR MANUFACTURING INTERNATIONAL INC. Star - Holman - Lang - Wells - Toastmaster 265 HOBSON ST. SMITHVILLE, TN 37166 (800) 264-7827 www.star-mfg.com...
