  • Page 2 International Headquarters B&B Electronics Mfg. Co. Inc. 707 Dayton Road Ottawa, IL 61350 USA Phone (815) 433-5100 -- General Fax (815) 433-5105 Website: www.bb-elec.com support@bb-elec.com European Headquarters B&B Electronics Westlink Commercial Park Oranmore, Co. Galway, Ireland Phone +353 91-792444 -- Fax +353 91-792445 Website: www.bb-europe.com techsupport@bb-elec.com...

  • Page 3: Table Of Contents

    Table of Contents FCC RADIO FREQUENCY INTERFERENCE STATEMENT ..4 WARRANTY ....................4 ABOUT THE MCLIM ................4 INSTALLING THE MCLIM ..........6 LED OPERATION ............. 7 SPECIFICATIONS ................... 9 FIBER OPTIC CLEANING GUIDELINES ........10 ELECTROSTATIC DISCHARGE PRECAUTIONS ......11 SAFETY CERTIFICATIONS ..............

  • Page 4: Fcc Radio Frequency Interference Statement

    FCC RADIO FREQUENCY INTERFERENCE STATEMENT This equipment has been tested and found to comply with the limits for a Class B computing device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment.
  • Page 5 Products of other manufacturers sold by B&B Electronics Manufacturing Company are not subject to any warranty or indemnity offered by B&B Electronics Manufacturing Company, but may be subject to the warranties of the other manufacturers. Notwithstanding the foregoing, under no circumstances shall B&B Electronics Manufacturing Company have any warranty obligations or any other liability for: (i) any defects resulting from wear and tear, accident, improper use by the buyer or use by any third party except in accordance with the written instructions or advice of the B&B...

  • Page 6: About The Mclim

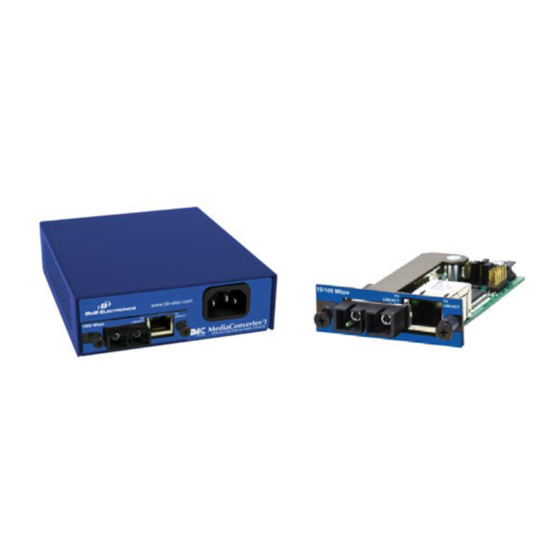

    McLIM TP-TX/FX is an Auto Negotiating, switching media converter which offers plug-and-play operation to convert 10 Mbps or 100 Mbps, Half- or Full-Duplex twisted pair to 100Base-FX, Full-Duplex fiber.

  • Page 7: Led Operation

    MediaConverter/1 and /4 are standalone chassis which include one • or four media conversion module slots, respectively, and a fixed, internal 100/240 VAC power supply. MediaConverter/8 is a 1U high, rack-mountable chassis that • includes eight media module slots and a fixed 100/240 VAC power supply.
  • Page 8 Each McLIM includes two LEDs, located on the RJ-45 connector. LED functions are as follows for the RX Unit: FX LNK/ACT Glows green when a link is established on the FX (fiber) port; blinks green when activity is detected on the fiber port.

  • Page 9: Specifications

    SPECIFICATIONS Ethernet Connections • 10/100 BaseT • Auto Negotiation • AutoCross • Flow Control • 1916 MTU • Full Line-Rate Forwarding Operating Temperature 32° to 122°F (0° to +50°C); 5% to 90% (non-condensing), 0 to 10,000 ft. altitude Storage Temperature -13°...

  • Page 10: Fiber Optic Cleaning Guidelines

    Dimensions MediaConverter/1 H=1.6” x W=4.8” x D=4.5” (4 x 12.1 x 11.5 cm) MediaConverter/4 H=1.7” x W=9.1” x D=5” (4.4 x 23.1 x 12.6 cm) MediaConverter/8 H=1.7” x W=17.4”x D=5” (4.4 x 44.2 x 12.8 cm) MediaConverter/12 H=1.7” x W=19” x D=9”...

  • Page 11: Electrostatic Discharge Precautions

    ELECTROSTATIC DISCHARGE PRECAUTIONS Electrostatic discharge (ESD) can cause damage to any product, add-in modules or standalone units, containing electronic components. Always observe following precautions when installing or handling these kinds of products 1. Do not remove unit from its protective packaging until ready to install.

  • Page 12: Safety Certifications

    SAFETY CERTIFICATIONS UL/CUL: Listed Safety Information Technology Equipment, including Electrical Business Equipment. The products described herein comply with the Council Directive on Electromagnetic Compatibility (2004/108/EC) and the Council Directive on Electrical Equipment Designed for use within Certain Voltage Limits (2006/95/EC). Certified to Safety of Information Technology Equipment, Including Electrical Business Equipment.
  • Page 13 © 2013 B&B Electronics. All rights reserved. The information in this document is subject to change without notice. B&B Electronics assumes no responsibility for any errors that may appear in this document. MiniMc is a trademark of B&B Electronics. Other brands or product names may be trademarks and are the property of their respective companies.
