19.
Remove the 15 screws that secure the display panel. The number of screws per side is as follows:
●
Top: 4 screws
●
Bottom: 5 screws
●
Left: 3 screws
●
Right: 3 screws
20.
Lift the display panel from the computer.

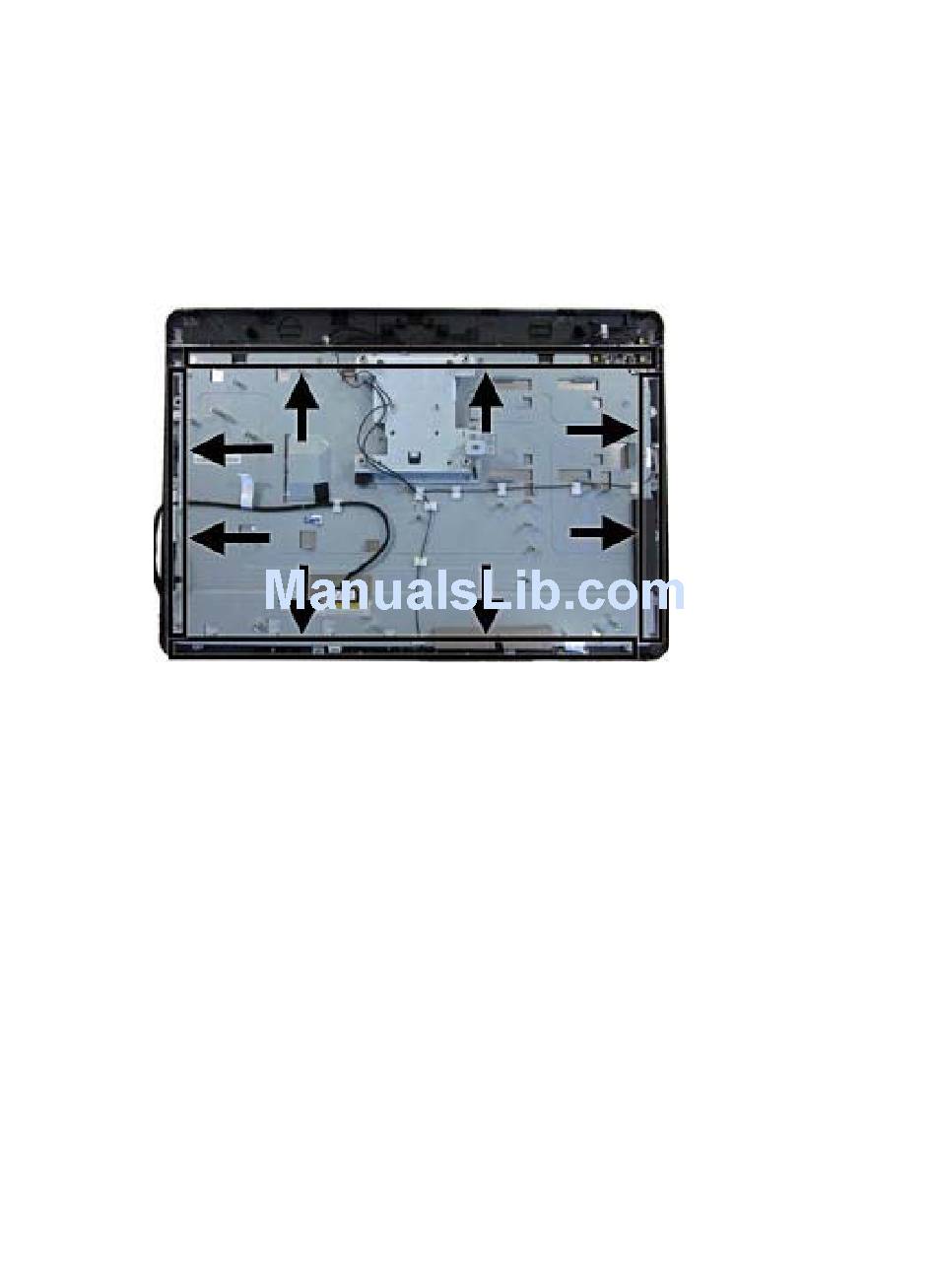

Figure 7-54
Removing the display panel
To install a display panel, reverse the removal procedures.
Display Panel
97
