Mounting the SuperVisor™

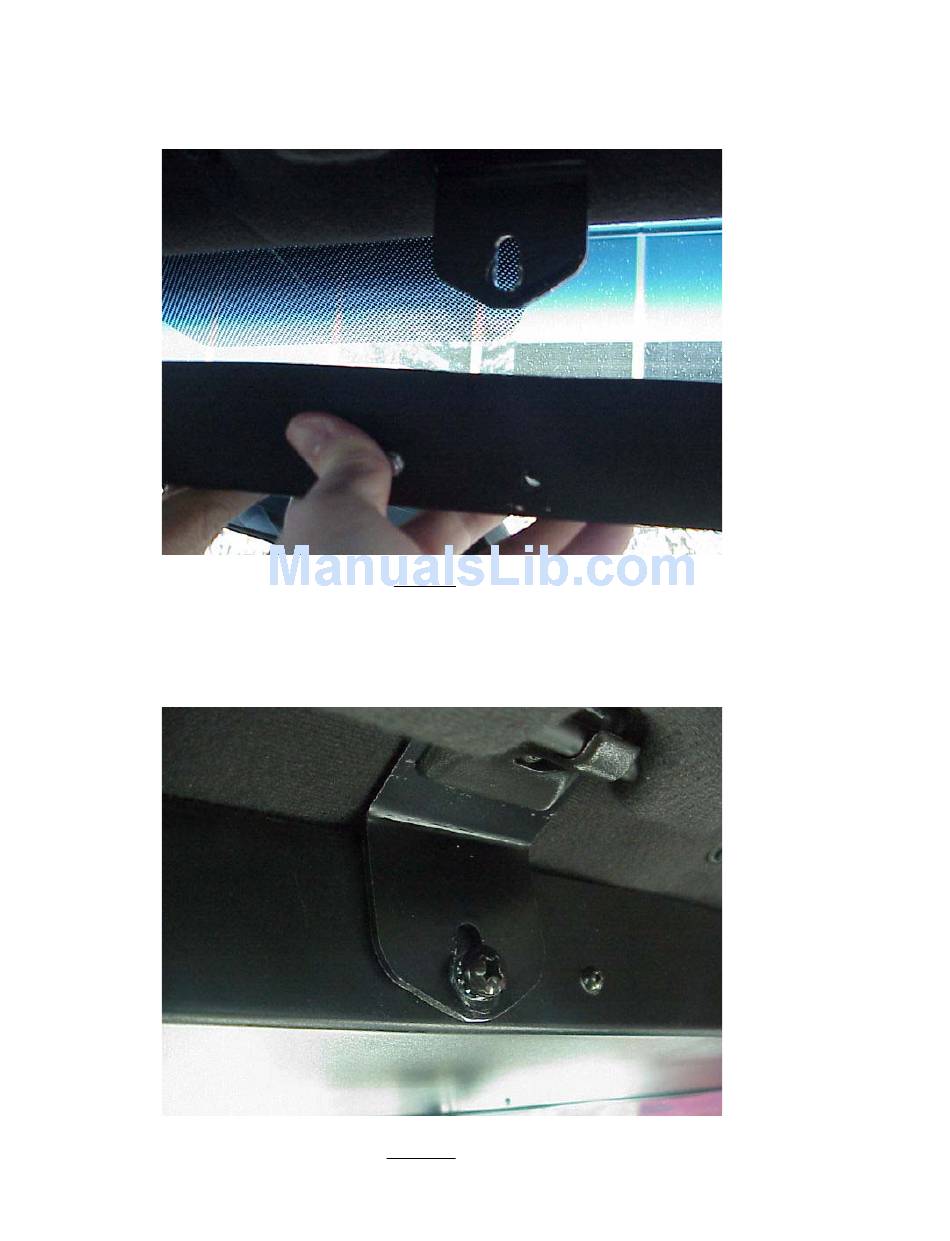

Once all four brackets and sun visors are attached, the SuperVisor is now ready to be installed. Position the SuperVisor in the
center of the windshield as shown in Figure 9.
FIGURE 9
The two center brackets should line up with the holes in the SuperVisor's lower chassis. Using the supplied 1/4"-20 bolts and internal
tooth lock washers, loosely install them as shown in Figure 10.
FIGURE 10
6
