Mounting the SuperVisor™(continued)
Next, if necessary, slightly loosen the three pivot arm bracket and sun visor retaining clip torx screws in order to align the pivot arm
bracket's hole with the mating chassis hole on the end of the SuperVisor. Finally, thread the supplied bolts and the internal tooth
lock washers through the pivot arm bracket's hole into the hole on the end of the chassis, shown in Figure 11. Tighten all pivot arm
and sun visor retaining clip torx screws.Using a tape measure and a level, center the SuperVisor from side to side and locate a
position on the headliner where the SuperVisor is level. Finally, tighten all four bolts securely. Do not overtighten.
Caution: The bracket fasteners make excellent hard mounting points for radar guns and
video cameras etc. Drilling into the housing of the light bar could damage wiring or
other internal components.

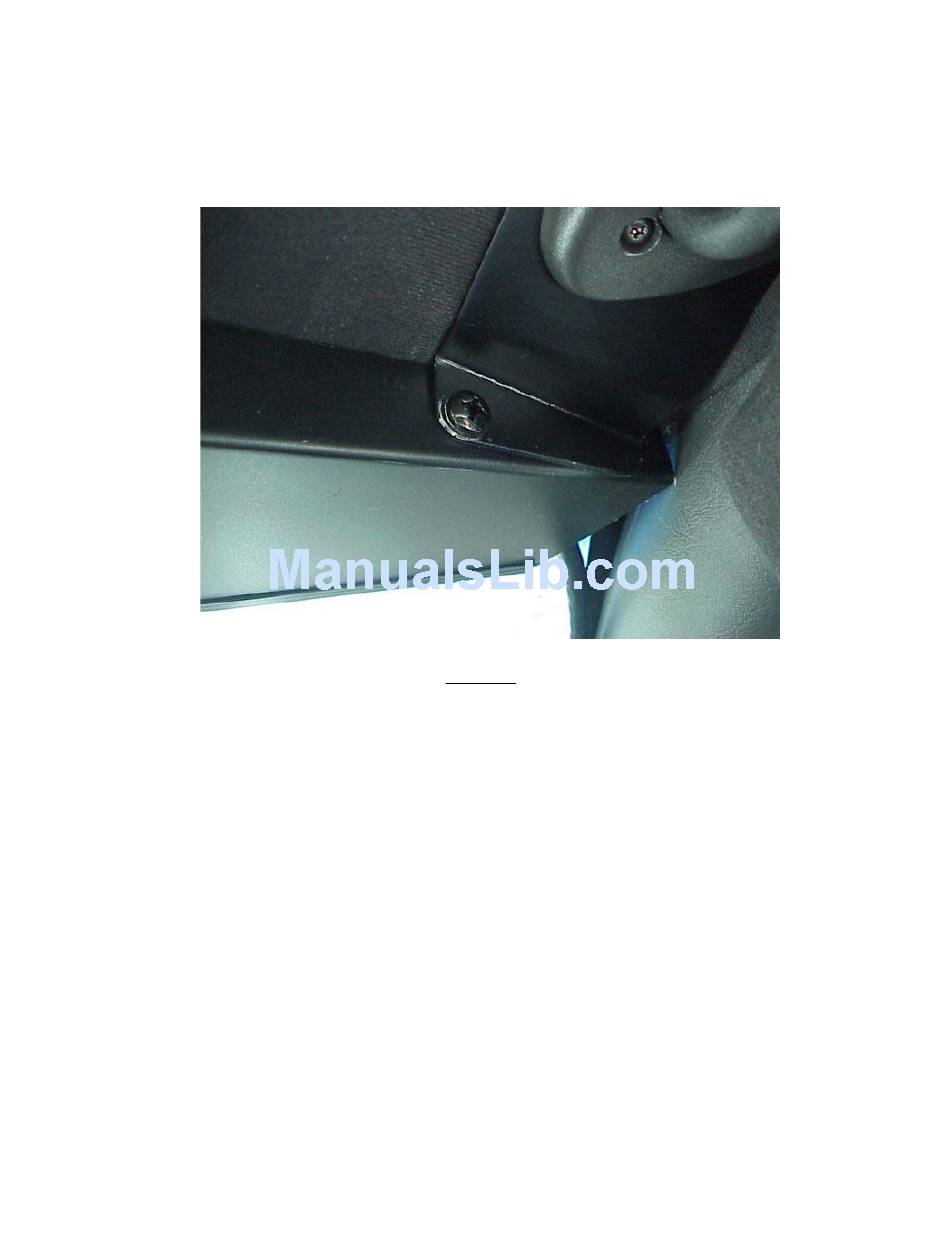

FIGURE 11
