Code 3 SuperVisor User Manual page 6

Attaching the pivot arm brackets

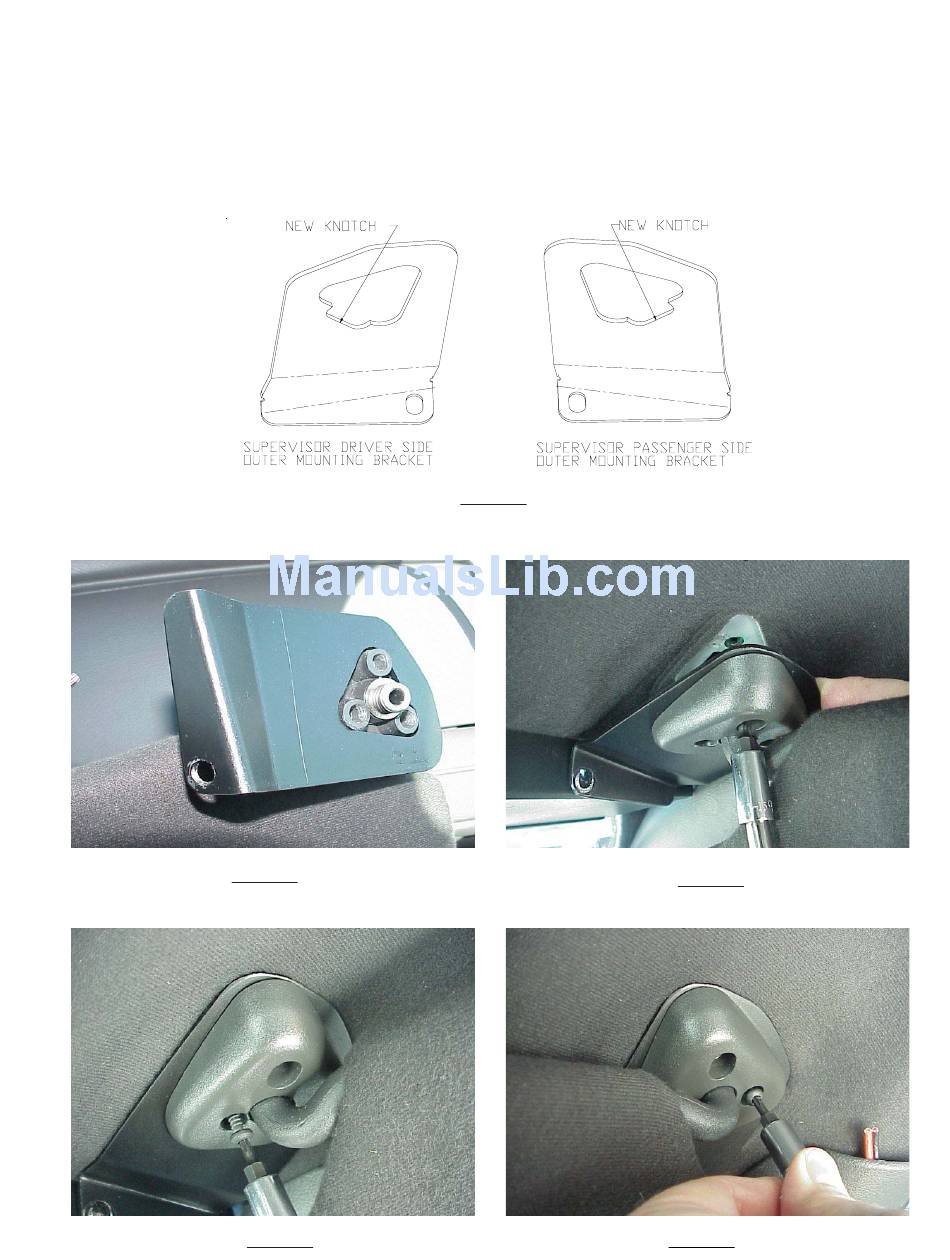

Attach the outer brackets that are supplied noting the difference between passenger and driver side brackets (see Figure 4).
Position the bracket on the passenger sun visor's pivot arm as shown in Figure 5. Rotate the pivot arm on the passenger sun visor
and verify the orientation of the bracket as shown in Figure 6. Note that the thicker portion of the pivot arm hinge aligns to the upper
inside hole. Attach the first two torx screws as shown in Figure 6 and Figure 7. Next, move the sun visor over in order to gain access
to install the final screw into the lower position as shown in Figure 8. Repeat this operation for the driver sun visor and outer bracket.
FIGURE 4
FIGURE 5
FIGURE 6
FIGURE 7 FIGURE 8
