StarTech.com TB4CDOCK Quick Start Manual

Thunderbolt 4 / USB4™ Docking Station - Dual 4K 60Hz Display - Single 5K/8K - Up to 96W Power Delivery
Product Diagram (TB4CDOCK / TB4CDOCKUE)

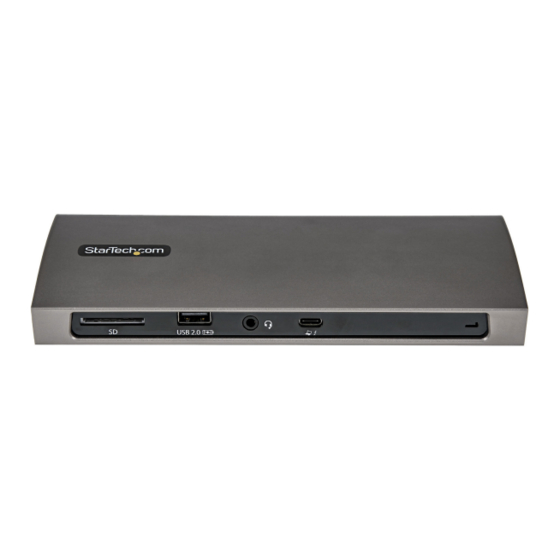

Front
1 2
Port
Secure Digital (SD) 4.0 UHS-II, SD 3.0, 2.0, 1.1, and 1.0
•
compatibility
Push an SD Card, label side up, into the SD Card Slot until it
•
clicks into place
1
SD Card Slot
Push then pull the SD Card to remove
•
USB 2.0 (480 Mbps)
•
BC 1.2 Maximum 7.5W (5V/1.5A) power output
•
2
USB-A Charge Port
Connect a USB-A Peripheral and/or Storage Devices (e.g.
•
flash drives), using USB Cables
Connect an Audio Device
•
3
3.5mm Audio Port
4 Position TRRS Audio Jack for Headset use
•
Thunderbolt 4
•
Connect/charge the Host Computer
Thunderbolt 4 Host
•
4
Port
Solid White LED indicates the Docking Station is receiving
•
power and is powered ON
5
Power LED Indicator
Solid Green LED indicates the Docking Station is
•
connected to a Host Computer
To view manuals, FAQs, videos, drivers, downloads, technical drawings, and more, visit www.startech.com/support.
3 4
Function
Note: The Host Computer's Operating System (OS) will
automatically detect the SD Card and install the required
driver software.
Note: A maximum of 96 watts of Power Delivery is
available for the Host Computer.
Side
Port
6
Lock Slot
7
Nano Lock Slot
5
Rear
8
Port
8
DC 20V Port
Thunderbolt 4
9
Device Ports (x3)
10
RJ45 Port
11
USB-A Ports (x3)
6 7
Function
Lock the Docking Station to a secure stationary object
•
10
9
Function
Connect the Universal Power Adapter to power the
•
Docking Station
Thunderbolt 4
•
Supports Thunderbolt 4, Thunderbolt 3, USB-C devices and
•
up to two 4K monitors or a single 5K/8K monitor
Supports DisplayPort and HDMI monitors (adapters sold
•
separately)
Connect to a 10/100/1000Mbps Network Device
•
SuperSpeed USB 10Gbps (USB 3.2 Gen 2)
•
Supports charging of up to 5V/0.9A per port
•
Connect up to 3 SuperSpeed USB 10Gbps Peripherals
•
and/or Storage Devices (e.g. flash drive), using a
SuperSpeed USB-A 10Gbps (USB 3.2 Gen 2) Cable
Quick-Start Guide
11
Manual Revision: September 3, 2021 3:41 PM
