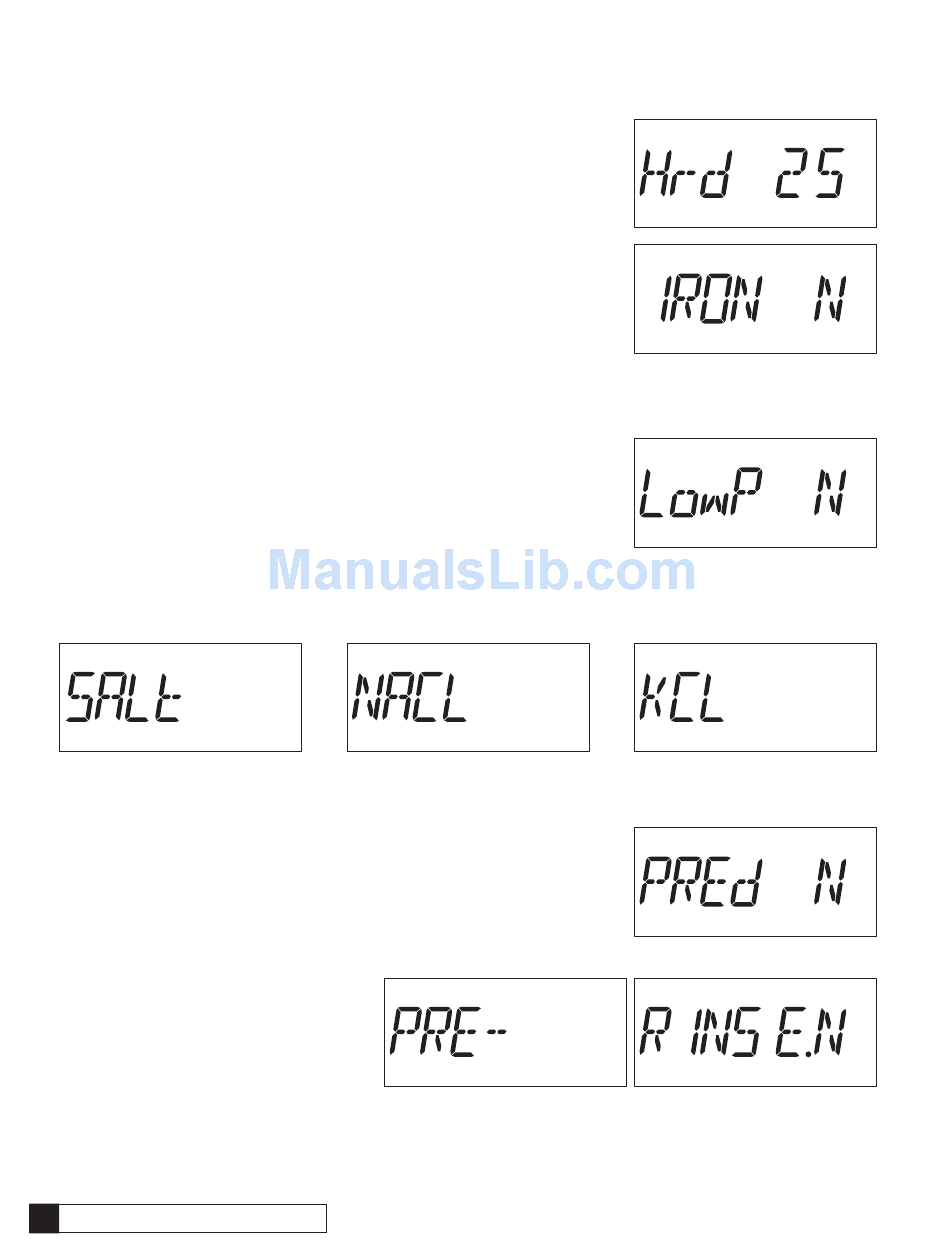

• Hardness Setting - This setting is used to set the hardness (grains) of the influent
water supply. For English Units the display will show the Hardness default of "Hrd 25"
(or the previously programmed value). Adjust the value with the "Up" or "Down" keys.
(These settings will not get saved to EEPROM until the 'Program' key is pressed while
at the "tank size" programming step)
• Iron Setting (flow meter only) - This setting is used to set the iron level of the influent
water supply. The display will show "Iron" in the left most digits and the iron default
setting (or the previously programmed value) in the far right digit. The display will only
appear if a flow meter is connected to the circuit board and the control is set to Gold.
If the iron level is set to "Y", the Efficiency Mode is inactive. Adjust the value with the
"Up" or "Down" keys.
Pressing the "Program" key will temporarily store the setting and move to the next
programming step. (This setting will not get saved to EEPROM until the 'Program' key is pressed while at the "tank size"
programming step)
• Pressure Setting - This setting is used to set the influent water pressure. The display
will show "LowP" in the left most digits and the pressure default setting in the far right
digit. If the pressure is less than 40 psi, chose "Y". By choosing "Y" the brine Rinse
time will be extended. Adjust the value with the "Up" or "Down" keys.
Pressing the "Program" key will temporarily store the setting and move to the next
programming step.
• Salt Type (flow meter only) - This setting is used to select the regeneration salt type (softener mode only). This display will
only appear if dip # 4 is off. The display will show "SALt" for 2 seconds. Then display the default 'NACL'. Pushing the "Up"
or "Down" keys will change to 'KCL'.
Pressing the "Program" key will temporarily store the setting and move to the next programming step. (This setting will not
get saved to EEPROM until the 'program' key is pressed while at the "tank size" programming step)
• Predict Mode (flow meter only) - This setting will only be displayed if dip # 9 is on,
dip # 6 is off, and a flow meter is connected. Only available in softener mode. The
display will show "PRED" in the left most characters and toggle between "Y" and "N" in
the right most character with the "Up" and "Down" keys.
Pressing the "Program" key will save the setting and move to the next programming
step.
• Pre-Rinse Mode - This setting will only be
active if dip # 9 is on. The display will show
"PRE-" for two seconds and then "RINSE" in
the left most characters of the display. When
"RINSE" is shown the right most character of
the display will flash "N" and toggle to "Y" with
the use of the "Up" or "Down" keys.
Pressing the "Program" key will save the setting and move to the next programming step.
