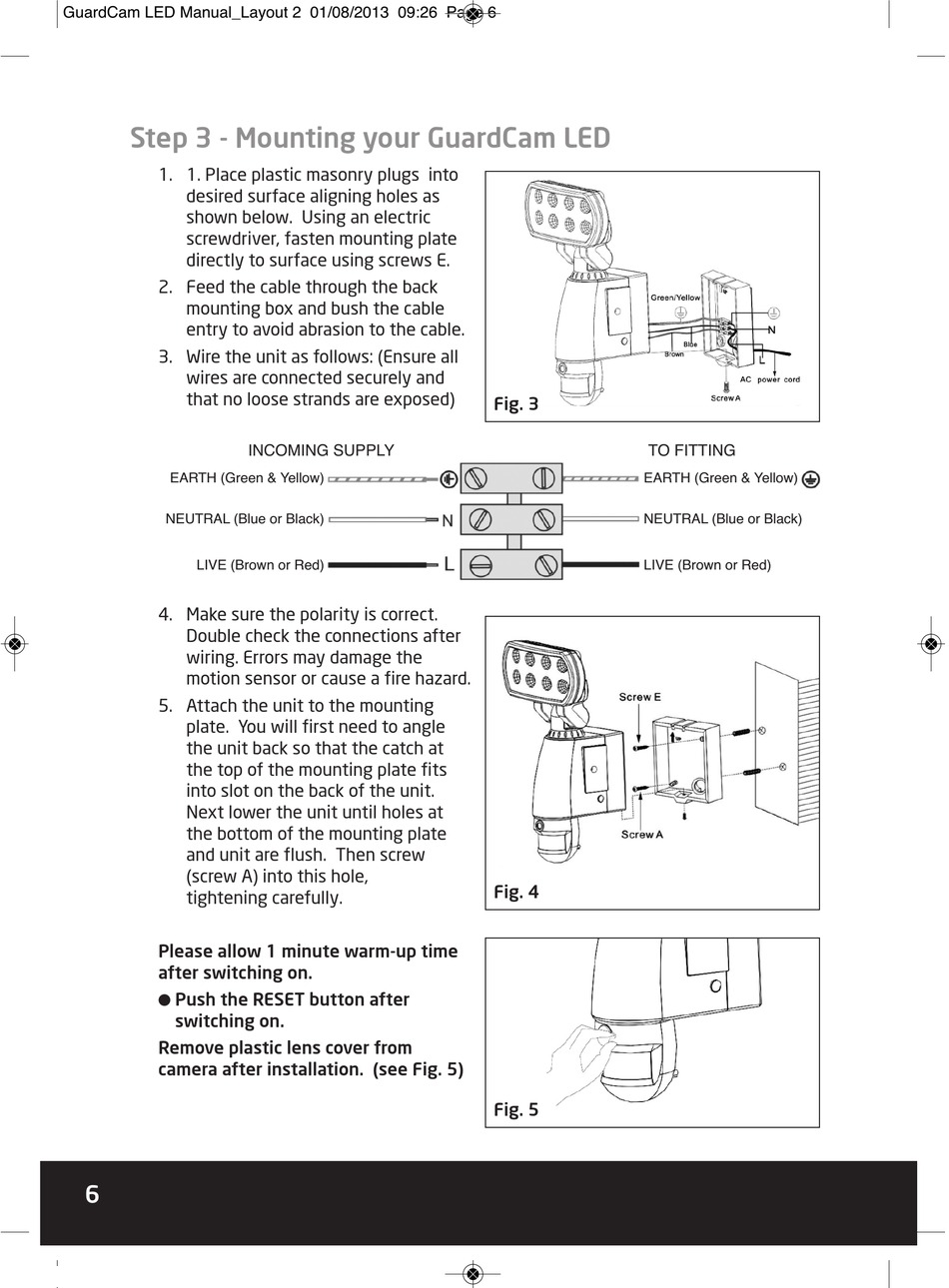

Step 3 - Mounting your GuardCam LED
1. 1. Place plastic masonry plugs into
desired surface aligning holes as
shown below. Using an electric
screwdriver, fasten mounting plate
directly to surface using screws E.
2. Feed the cable through the back
mounting box and bush the cable
entry to avoid abrasion to the cable.
3. Wire the unit as follows: (Ensure all
wires are connected securely and
that no loose strands are exposed)
EARTH (Green & Yellow)
NEUTRAL (Blue or Black)
LIVE (Brown or Red)
4. Make sure the polarity is correct.
Double check the connections after
wiring. Errors may damage the
motion sensor or cause a fire hazard.
5. Attach the unit to the mounting
plate. You will first need to angle
the unit back so that the catch at
the top of the mounting plate fits
into slot on the back of the unit.
Next lower the unit until holes at
the bottom of the mounting plate
and unit are flush. Then screw
(screw A) into this hole,
tightening carefully.
Please allow 1 minute warm-up time
after switching on.

Push the RESET button after
switching on.
Remove plastic lens cover from
camera after installation. (see Fig. 5)
6
INCOMING SUPPLY
Fig. 3
TO FITTING
EARTH (Green & Yellow)
NEUTRAL (Blue or Black)
LIVE (Brown or Red)
Fig. 4
Fig. 5
