Guardcam Led Motion Light With Video Camera; Step 1 - Insert/Remove Sd Card - ESP GuardCam LED Manual

GuardCam LED Manual_Layout 2 01/08/2013 09:26 Page 4

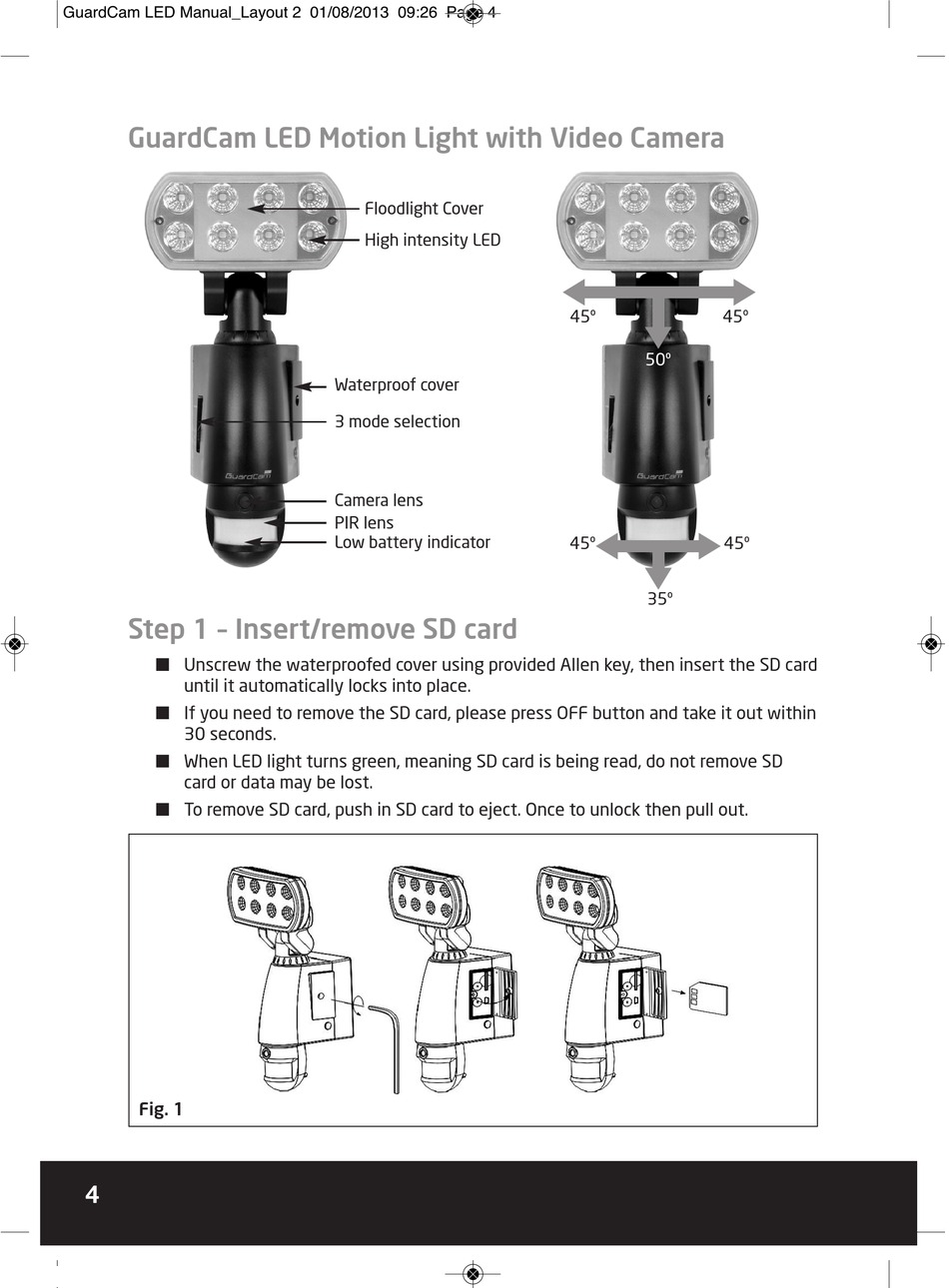

GuardCam LED Motion Light with Video Camera

Step 1 – Insert/remove SD card
 Unscrew the waterproofed cover using provided Allen key, then insert the SD card
until it automatically locks into place.
 If you need to remove the SD card, please press OFF button and take it out within
30 seconds.
 When LED light turns green, meaning SD card is being read, do not remove SD
card or data may be lost.
 To remove SD card, push in SD card to eject. Once to unlock then pull out.
Fig. 1
4
Floodlight Cover
High intensity LED
Waterproof cover
3 mode selection
Camera lens
PIR lens
Low battery indicator
45º 45º
50º
45º 45º
35º
