Vertex Standard VXR-7000 Service Manual page 89

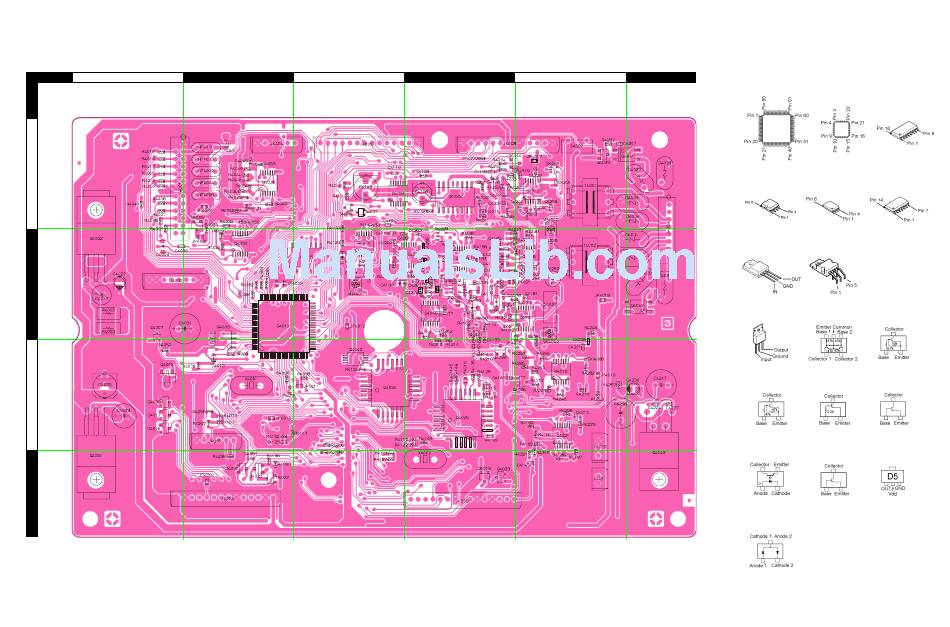

Parts Layout
A
1
2
3
4
B C D E F
FX803LG
(Q4025)
HD64F3337YF16 (Lot. 1~5)
FX805LG
DF3337YF16 (Lot. 6~16)
(Q4024)
HD64F3337YF16 (Lot. 17~)
(Q4012)
NM93C86AM8 NJM2904V
(Q4008) (Q4040)
UPC78M05AHF TDA2003H
(Q4002) (Q4043)
UPC2409AHF FMG2 (G2)
(Q4001) (Q4028, 4032)
DTC144EK (26) DTC323TK (H02)
(Q4023, 4035, 4044) (Q4036, 4038)
TLP181 2SA1586Y (SY)
(Q4041, 4042) (Q4007)
Side A
MA143 (MC)
(D4036, 4037)
DA204K (K)
(D4006, 4009, 4012, 4016,
4019, 4020, 4022, 4023)
CNTL Unit
M51132FP
(Q4029)
M62354FP
(Q4015)
NJM2902V
(Q4014, 4016, 4018,
4019, 4020, 4021,
4031, 4033, 4034,
4045, 4046)
NJU4066BV
(Q4030)
DTA143XK (33)
(Q4039)
2SC4116GR (LG)
(Q4027)
RH5VL45AA (D5)
(Q4005)
89
