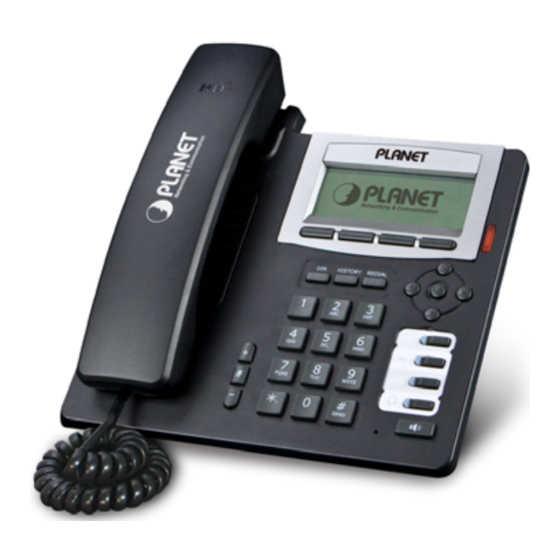

Enterprise HD PoE IP Phone (2-Line) VIP-2020PT...
Page 2
Copyright Copyright (C) 2013 PLANET Technology Corp. All rights reserved. The products and programs described in this User’s Manual are licensed products of PLANET Technology, This User’s Manual contains proprietary information protected by copyright, and this User’s Manual and all accompanying hardware, software, and documentation are copyrighted.
Page 3
Trademarks The PLANET logo is a trademark of PLANET Technology. This documentation may refer to numerous hardware and software products by their trade names. In most, if not all cases, their respective companies claim these designations as trademarks or registered trademarks.
To build high-performance VoIP communications at a low cost, PLANET now introduces the latest member of its IP Phone family, the VIP-2020PT enterprise-class 2-Line PoE IP Phone. It complies with IEEE 802.3af PoE interface for flexible deployment. The VIP-2020PT makes it simple for the enterprise featuring voice and data system or expanding voice system to new locations.
Page 8
Answer, Music on Hold, Caller ID and Call Waiting ID, 3-Way Conferencing, Call Hold, Call Forwarding, Black List, DTMF Relay, In-Band, Out-of-Band (RFC 2833) and SIP INFO, among others. Besides office use, the VIP-2020PT is also the ideal solution for VoIP service offered by Internet Telephony Service Provider (ITSP).
Page 9
VIP-2020PT Secure, High-Quality VoIP Communication The VIP-2020PT supports SIP v2 for easy integration with general voice over IP system. It can also effortlessly deliver secured toll voice quality by utilizing cutting-edge 802.1p QoS (Quality of Service), 802.1Q VLAN tagging, and IP TOS technology. Using voice and data VLAN can easily separate the data and voice and thus maintain the best quality.
Enterprise HD PoE IP Phone VIP-2020PT 1.1 Features Highlights Supports SIP 2.0 (RFC3261) Supports IAX2,IAX2 line call SIP supports 2 SIP lines. IEEE 802.3af Power over Ethernet compliant Supports multiple road call waiting in line Supports HD voice Supports SRTP and BLF...
Page 11
Enterprise HD PoE IP Phone VIP-2020PT Echo cancellation: Supports G.168, and Hands-free can support 96ms, Hands-free Speaker Phone Supports Voice Gain Setting, VAD, CNG Full duplex hands-free speaker phone Hands-free headset ringing choice Voice codec setting for each SIP line...
Page 12
Enterprise HD PoE IP Phone VIP-2020PT Network Features WAN/LAN: 10/100M Ethernet ports, supports Route and Bridge modes. Supports bridge working as hub Supports PPPoE for xDSL and PoE Supports 802.1 VLAN (Voice VLAN / data VLAN) Supports basic NAT and NAPT...
Enterprise HD PoE IP Phone VIP-2020PT 1.3 Product Specifications VIP-2020PT Product Enterprise HD PoE IP Phone (2-Line) Hardware Lines (Direct Numbers) 2-Line enterprise-class IP phone Display 75 x 28 mm 128X48 Graphic LCD with blue backlight 2 line keys include in 4 DSS keys...
Page 15
Enterprise HD PoE IP Phone VIP-2020PT Simple Network Time Protocol (SNTP) (RFC 2030) Backward compatible with RFC 2543 Session Timer (RFC 4028) SDP (RFC 2327) NAPTR for SIP URI Lookup (RFC 2915) SIP version 2 (RFC 3261, 3262, 3263, 3264)
Page 16
Enterprise HD PoE IP Phone VIP-2020PT Advantageous Applications Supports SIP 2.0 (RFC3261) Supports IAX2,IAX2 line call SIP supports 2 SIP lines. IEEE 802.3af Power over Ethernet (PoE) compliant Supports multiple road call waiting in line Supports HD voice Supports SRTP and BLF...
Page 17
Enterprise HD PoE IP Phone VIP-2020PT SIP Applications Call forward Transfer (blind/attended) Holding Waiting 3-way conference Paging and Intercom Call park Call pickup Join call Redial and click to dial Secondary dialing automatically Incoming calls /outgoing calls / missed calls. Each supports 100 records.
Page 18
Enterprise HD PoE IP Phone VIP-2020PT Network Features WAN/LAN: 10/100M Ethernet ports, supports Route and Bridge modes. Supports bridge working as hub Supports PPPoE for xDSL and PoE Supports 802.1 VLAN(voice VLAN/data VLAN) Supports basic NAT and NAPT NAT transverse: supports STUN client...
Enterprise HD PoE IP Phone VIP-2020PT 1.4 Physical specifications and packaging Physical Specifications Dimensions Dimensions 290(L) X 260 (W) X 60 (H) mm Net Weight 950g(without package) BASIC PACKAGING SIP IP Phone unit Power Adapter Quick Installation Guide CD-ROM containing the on-line manual.
Enterprise HD PoE IP Phone VIP-2020PT 1.5 Keypad Keypad, LED, and function key definitions Keypad Description Key name Function Description Assists you in selecting an item that you want to process Navigation under the menu by pressing the Up, Down, Right or Left button.
Page 21
Enterprise HD PoE IP Phone VIP-2020PT 1. In the hook off /hands-free mode, use the key to dial the last call number; Redial 2. In stand-by mode, it has a function to check the Outgoing Call. Hands-free Make the phone into hands-free mode.
Page 22
Enterprise HD PoE IP Phone VIP-2020PT Rear view and panel descriptions Keypad Description Port Port name Description Input: 5V AC, 1A Power switch 10/100M Connect it to Network 10/100M Connect it to PC External console Port type: RJ-11 direct connector...
Enterprise HD PoE IP Phone VIP-2020PT 1.6 Icon introduction Icon Description Call out Call in Call hold Auto answer Call mute Contact DND(Do not Disturb) In hand-free mode In handset mode In headset mode Missed call Call forward 1.7 LED introduction...
Page 24
Enterprise HD PoE IP Phone VIP-2020PT Table 2 Programmable key LED for Presence LED Status Description Steady green The object is online. The object is ringing. Slow blinking red The object is active. Steady red Fast blinking red The object failed.
Handset Step 2. Connecting Power System The VIP-2020PT can be powered either by external AC/DC adapter or by connecting to an IEEE802.3af/at PSE device such as 802.3af injector/hub or 802.3af/at POE switch. Once the VIP-2020PT is powered, the LCD screen will prompt for POST.
Page 26
Set your computer’s IP address to 192.168.0.x, where x is a number between 2 to 254 (except 1 where is being used for the phone by default). If you don’t know how to do this, please ask your network administrator. Connect your PC to VIP-2020PT PC port. Step 5. Login Prompt Use web browser (Internet Explorer 6.0 or above) to connect to 192.168.0.1 (type this address in...
Enterprise HD PoE IP Phone VIP-2020PT Basic Functions 3.1 Making a call Call Device 3.1.1 User can make a phone call via the following devices: icon will be shown on the idle screen. 1. Pick up the handset, 2. Press the Speaker button, icon will be shown on the idle screen.
Enterprise HD PoE IP Phone VIP-2020PT During the conversation, User can alternate between Headset, Handset and Speaker phone by pressing the corresponding buttons or picking up the handset. 3.3 DND Press DND softkey to activate DND Mode. Further incoming calls will be rejected and the display shows: icon.
Enterprise HD PoE IP Phone VIP-2020PT 3.6 Call Waiting 1. Press Menu Features Enter Call Waiting Enter. 2. Use the navigation keys to activate or deactivate call waiting. 3. Then press the Save to save the changes. 3.7 Mute Press Mute button during the conversation, icon will be shown on the LCD.
Enterprise HD PoE IP Phone VIP-2020PT 3.9 3-way conference call 1. Press the Conf softkey during an active call. 2. The first call is placed on hold. Then User will hear a dial tone. Dial the number to conference in, and then press Send key.
Enterprise HD PoE IP Phone VIP-2020PT 4 Advanced Functions 4.1 Call pickup Call pickup is implemented by simulating pickup function of PBX; that is, when A calls B, B rings but no answer, at this moment, C can hook off and input an appointed prefix plus B’s number, pick up A’s call and talk with A.
Enterprise HD PoE IP Phone VIP-2020PT calling mode at 60 second intervals. Once B is available, A will get reminder of rings to hook off, while a hooks off, A will call B automatically. If at this time A is occupied temporarily and unwilling to contact B, A also can cancel the redial function by dialing an appointed prefix plus B’s number before making the redial function.
Enterprise HD PoE IP Phone VIP-2020PT 2. Use the navigation keys to highlight the options. User can read the message in the Inbox/Outbox. 3. After viewing the new message, User can press Reply to reply the message, and use the 2aB softkey to change the Input Method. When entering the reply message, press OK, and then use the navigation keys to select the line from which User wants to send, then Send.
Enterprise HD PoE IP Phone VIP-2020PT 3. Press Save to save the change. 4. To view the new voicemail, press the Voicemail softkey directly. Press Dial, and then User may be prompted to enter the password. User can listen to new and old messages.
Page 35
Enterprise HD PoE IP Phone VIP-2020PT Presence Presence is called present, and compared to the BLF, it can also check whether object is online. User can subscribe to the BLF and presence station of the same number at the same time.
Enterprise HD PoE IP Phone VIP-2020PT Call Park User needs to set a server number when User has set what represents Call park. If User has a call but busy to receive the call, User can press the key and hear a number.
Page 37
Enterprise HD PoE IP Phone VIP-2020PT User needs to match an XML Phonebook address. By pressing the button, User can directly access the corresponding remote phonebook. Set the type as BLF List Key It needs the cooperation with the Broadsoft server. The traditional BLF is that every number will need to be subscribed, so if the numbers that are subscribed are so many, it will cause obstruction.
Enterprise HD PoE IP Phone VIP-2020PT 5 Other Functions 5.1 Auto Handdown Press Menu Features Enter Auto Handdown Enter. Set the Mode Enable through the navigation key, then set Time, unit is minute, then press Save. When the call ends, after the time that User has set, the phone will return to the idle mode.
Enterprise HD PoE IP Phone VIP-2020PT 5.5 Auto Redial 1. Press Menu Features Enter Auto Redial Enter. 2. Choose Mode Enabled or Disabled through the navigation key. If User chooses Enable, User also needs to set Interval and Times, and then press Save.
Enterprise HD PoE IP Phone VIP-2020PT 5.10 Ban Outgoing 1. Press Menu Features Ban Outgoing Enter. 2. Enable this function; User cannot call any number. 5.11 Pre Dial 1. Press Menu Features Pre Dial Enter. 2. Enable this function and User will realize Pre-Dial function.
Enterprise HD PoE IP Phone VIP-2020PT 6 Basic settings 6.1 Keyboard 1. Press Menu Settings Enter Basic Settings Enter Keyboard Enter. 2. There are four items: DSS Key settings, Programmable Keys, Desktop Long Pressed, SoftKey, and User can set up respectively on them. Press the key Enter to the interface, then use the navigation keys to choose the function for the key according to User’s...
2. User can enter the message and press Save. It will display on the phone screen when the phone starts up. 6.7 Language 1. Press Menu Settings Enter Basic Settings Enter Language Enter. 2. The VIP-2020PT supports three languages. User can use the navigation keys to choose. The default two languages are English and Chinese.
Enterprise HD PoE IP Phone VIP-2020PT 7 Advanced Settings 7.1 Accounts Press Menu Enter Advanced settings, and then input the password to enter. The default password is 123. User can set it through the web page. Then choose Account and then press Enter.
Enterprise HD PoE IP Phone VIP-2020PT 8 Web Configuration 8.1 Introduction of configuration Ways to configure 8.1.1 The VIP-2020PT has three different ways for different users. Use phone keypad. Use web browser (recommended way). Use telnet with CLI command. Password Configuration 8.1.2 There are two levels to access to phone: root level and general level.
Enterprise HD PoE IP Phone VIP-2020PT After User configures the IP phone, User needs to click Save button in config under Maintenance on the left side of the screen to save User configuration. Otherwise, the phone will lose User modification after power is off and on.
Page 46
Wizard Please select the proper network mode according to the network condition. The VIP-2020PT provides three different network settings: Static: If User ISP server provides User with the static IP address, please select this mode, and then finish Static Mode setting. If User doesn’t know about parameters of Static Mode setting, please refer to User ISP.
Page 47
Enterprise HD PoE IP Phone VIP-2020PT simply. Click【BACK】to return to the last page. IP Address Input the IP address distributed to User. Subnet Mask Input the subnet mask distributed to User. IP Gateway Input the Gateway address distributed to User.
Page 48
Enterprise HD PoE IP Phone VIP-2020PT SIP User Input the phone number assigned by User VOIP service provider. Enable Registration Start to register or not by selecting it or not. Display detailed information about User manual config. Choose DHCP mode and click Next to config SIP (default SIP1) simply. Click Back to return to the last page, like static IP mode.
Page 49
Enterprise HD PoE IP Phone VIP-2020PT Click【Finish】button after User setting is done. IP Phone will save the setting automatically and reboot. After reboot, User can dial with the SIP account. 8.3.1.3 CALL LOG User can check all the outgoing calls on this page shown below:...
Enterprise HD PoE IP Phone VIP-2020PT Language Set the language of phone. English is default. The greeting words will display on LCD when phone is idle. It can Greeting Words support 12 chars.; the default chars are VOIP PHONE. The maximum length of the greeting message is 12 English characters and 5 Chinese characters.
Page 51
Shows the time of getting MAC address Please select the proper network mode according to the network condition. The VIP-2020PT provides three different network settings: Static: If User ISP server provides User with the static IP address. Please select this mode, and then finish Static Mode setting.
Page 52
Enterprise HD PoE IP Phone VIP-2020PT Secondary DNS Input User standby DNS server address. If User uses PPPoE mode, User need to make the above setting. Service Name It will be provided by ISP. User Input User ADSL account. Password Input User ADSL password.
Page 53
Enterprise HD PoE IP Phone VIP-2020PT DHCP Service the LAN IP address, phone will amend and adjust the DHCP Lease Table and save the result amended automatically according to the IP address and Net mask. User needs to reboot the phone and the DHCP server setting will take effect.
Page 54
Enterprise HD PoE IP Phone VIP-2020PT In chart 1, there is a layer 2 that switches go without setting VLAN. Any broadcast frame will be transmitted to the other ports except the send port. For example, a broadcast information is sent out from port 1 then transmitted to ports 2, 3 and 4.
Page 55
Enterprise HD PoE IP Phone VIP-2020PT QoS Configuration Link Layer Discovery Protocol (LLDP) Settings Enable LLDP Enable LLDP by selecting it. After enabling LLDP Learn, telephone can automatically learn the data of DSCP, 802.1p, VLAN ID from the switch. If the data is...
Page 56
Enterprise HD PoE IP Phone VIP-2020PT different from WAN ID. Specify the value of the Port VLAN ID different from WAN ID, the LAN Port VLAN ID range of the value is 0-4095. 8.3.2.4 SERVICE PORT User can set the port of telnet/HTTP/RTP on this page.
Page 57
Enterprise HD PoE IP Phone VIP-2020PT 1) User needs to save the configuration and reboot the phone after setting this page. 2) Please reboot the system if User modifies the HTTP or telnet port number (the new number should be greater than 1024).
Page 58
Enterprise HD PoE IP Phone VIP-2020PT Subnet Mask Set the Network mask of the lease table. IP Gateway Set the Gateway of the lease table. Leased Time Set the Lease Time of the lease table. Set the default DNS server IP of the lease table; Click the Add DNS Server Address button to submit and add this lease table.
Page 59
Enterprise HD PoE IP Phone VIP-2020PT TIME&DATE Field name Explanation Simple Network Time Protocol (SNTP) Settings Enable SNTP Enable SNTP by selecting it. Enable DHCP Time Enable DHCP Time by selecting it, then the phone will automatically synchronize the standard time.
Enterprise HD PoE IP Phone VIP-2020PT Setup start and end day. Hour Setup start and end hours. Minute Setup start and end minutes. Manual Time Settings First of all, User needs to disable the SNTP service, and the date hour minute each of which is required to complete and submit to make manual.
Page 62
Enterprise HD PoE IP Phone VIP-2020PT SIP Config Field name Explanation SIP Line Choose line to set info about SIP, there are 4 lines to choose. User can switch by【Load】 button. Basic Settings Status Shows if the phone has been registered the SIP server or not;...
Page 63
Enterprise HD PoE IP Phone VIP-2020PT Advanced SIP Setting Select call forward mode, the default is Off. Off: Close down calling forward. Busy: If the phone is busy, incoming calls will be forwarded to the appointed phone. No answer: If there is no answer, incoming calls will be Forward Type forwarded to the appointed phone after a specific.
Page 64
Enterprise HD PoE IP Phone VIP-2020PT Overtime of resending subscribe packet. Suggest using the Subscribe Period(s) default configuration. Specify the Conference Type, if User select the local, User Conference Type needn’t input the conference number. Specify the network conference number, please contact User Conference Number system administrator for the network conference number.
Page 65
Enterprise HD PoE IP Phone VIP-2020PT the busy forward function on User phone, it will send message to the server, and the server will turn off the function immediately. Set the No Answer CFwd On Code, when User choose to...
Page 66
Enterprise HD PoE IP Phone VIP-2020PT Convert URI Convert # to %23 when send the URI. Dial Without Registered Set call out by proxy without registration. Ban Anonymous Call Set to ban Anonymous Call. Enable DNS SRV Support DNS looking up with _sip.udp mode.
Page 67
Enterprise HD PoE IP Phone VIP-2020PT SIP Global Settings Enable the Strict Branch, the value of the branch must be in the beginning of z9hG4k in via field of the invite sip message Strict Branch received, or the phone won’t response to the invite sip message.
Page 68
Enterprise HD PoE IP Phone VIP-2020PT Account Input User IAX2 register account name. Password Input User IAX2 register password. Input User assigned phone number (usually it is same User’re User Phone Number IAX2 account name). Local Port Set User local sport, the default is 4569.
Page 69
Enterprise HD PoE IP Phone VIP-2020PT STUN Field name Explanation Simple Traversal of UDP through NATs (STUN) Settings Shows STUN NAT Transverse estimation, true means STUN STUN NAT Traversal can penetrate NAT, while False means not. Server Address Set User SIP STUN Server IP address.
Page 70
Enterprise HD PoE IP Phone VIP-2020PT Choose line to set info about SIP, There are 2 lines to choose. User can switch by 【Load】 button. Use STUN Enable/Disable SIP STUN. SIP STUN is used to realize SIP penetration to NAT. If User phone configures STUN Server IP and Port (default is 3478), and enable SIP Stun, User can use the ordinary SIP Server to realize penetration into NAT.
Page 71
Enterprise HD PoE IP Phone VIP-2020PT If user makes the above configuration, after user dials 11 digit numbers started with from 135 to 139, the phone will send out 0 plus the dialed numbers automatically. Use this phone User can realize dialing out via different lines without switch in web interface.
Page 72
Enterprise HD PoE IP Phone VIP-2020PT 1) All: xxx, it means that xxx will replace some phone number. 2) Del: It means that phone will delete the number with length appointed. 3) Rep: It means that phone will replace the number with length and number appointed.
Page 73
Enterprise HD PoE IP Phone VIP-2020PT Examples of different alias applications Set by web Explanation Example User need set phone number, Destination, Alias and Delete Length. Phone number is XXXT; Destination is 255.255.255.255 (0.0.0.2) and Alias is del. If User dials “93333”, This means any phone No.
Enterprise HD PoE IP Phone VIP-2020PT If User dialed phone number When User dial starts with User set phone “147”, the SIP1 number. The phone will send server will receive out User dialed phone number “1470011”. adding suffix number. PHONE 8.3.4...
Page 75
Enterprise HD PoE IP Phone VIP-2020PT Length Specify the least reflection time of Hand down, the default is Onhook Time 200ms. Default Ring Type Select Ring Type. Handset Output Volume Specify Output (receiver) Volume grade. Speakerphone volume Specify Speakerphone Volume grade.
Page 76
Enterprise HD PoE IP Phone VIP-2020PT FEATURE Field name Explanation Select DND, the phone will reject any incoming call, the callers will be Do Not Disturb reminded by busy, but any outgoing call from the phone will work well. If User select Ban Outgoing to enable it, and User cannot dial out any Ban Outgoing number.
Page 77
Auto Redial Specify the Auto Redial interval. Times Open this function, if there is a headphones in VIP-2020PT, User can press Auto Headset “ answer” key or line key to answer a call with the headset Enable Call Enable Call Completion by selecting it.
Page 78
Enterprise HD PoE IP Phone VIP-2020PT After the password prefix will be hidden as *, N stand for the value which User enter in the Password Length field. For example: User set the password prefix is 3, enter the Password Length is 2, then User enter the number 34567, it will display 3**67 on the phone.
Page 79
Enterprise HD PoE IP Phone VIP-2020PT 8.3.4.3 DIAL PLAN This system supports 4 dial modes: 1) End with “#”: dial User desired number, and then press #. 2) Fixed Length: the phone will intersect the number according to User specified length.
Page 80
Enterprise HD PoE IP Phone VIP-2020PT ( ) Send after 3-30 Set the timeout of the last dial digit. The call will be sent after timeout. seconds Enable Blind Transfer On Hook, when executing Blind Transfer Press # to Do Blind...
Page 81
Enterprise HD PoE IP Phone VIP-2020PT Contact Field name Explanation Phonebook Table Name Shows the name corresponding to the phone number. Shows the detail of current phonebook. The maximum capacity of the phonebook is 500 items. User can select many or a contact to add to group and add to blacklist, and delete many or a contact, and delete all contacts.
Page 82
Enterprise HD PoE IP Phone VIP-2020PT Mobile Number Specify the mobile number. Other Number Specify the other number. Ring Type Specify the ring type for the phone number. Line Specify the sip line for the each number. Select the group from the unselected group to selected list for Group setting the contact;...
Page 83
Enterprise HD PoE IP Phone VIP-2020PT 8.3.4.5 REMOTE CONTACT User needs to match a XML Phonebook address and User can directly access to the corresponding remote phonebook on the phone. For example: Set the Phonebook Name as Planet, Server URL is tftp://192.168.1.3/admin/phonebook/index.xml.
Page 84
Enterprise HD PoE IP Phone VIP-2020PT User can make a call through the WEB DIAL, enter the Dial Number then press Dial, if User wants to finish the talk, press Hang-up. 8.3.4.7 MCAST Setting Use the multicast function to send notice to every member of the multicast is simple and easy.
Page 85
Enterprise HD PoE IP Phone VIP-2020PT Receive multicast setting You can set up the phone monitoring 10 different multicast addresses to receive these multicast RTP stream. You have two methods to receive RTP stream of multicast that can be set up through the web...
Enterprise HD PoE IP Phone VIP-2020PT FUNCTION KEY 8.3.5 8.3.5.1 FUNCTION KEY Function Key Field name Explanation Contrast Set contrast of screen. Enable Backlight Set enable/disable backlight. Line Key Settings Line: select Auto, SIP1, SIP2 or IAX2 in function key type. After User set it, User pick up handset or hands-free, press this function key, and then User can use the corresponding SIP line.
Page 87
Enterprise HD PoE IP Phone VIP-2020PT Please input the pickup number When SubType is BLF or Pickup Number presence. : NOTICE Memory keys can be configured through the following: Speed Dial function, through the configuration of the key corresponding to the number of ways as shown below.
Page 88
Enterprise HD PoE IP Phone VIP-2020PT EXT KEY has the same usage with the Function key. “In” port connects the phone, “Out” port connects the next one, if there is only, User don’t need for power supply, if there are more than one, User need supply 5V power for the first one, and use RJ-45 direct connector.
Enterprise HD PoE IP Phone VIP-2020PT Maintenance 8.3.6 8.3.6.1 Auto Provision Planet endpoint supports PnP and DHCP and Phone Flash to obtain the parameters. The PnP and DHCP and Phone Flash are all deployed, endpoint will go by the following process to try to...
Page 90
Enterprise HD PoE IP Phone VIP-2020PT Auto Provision Setting Show the current config file’s version. If the version of the configuration downloaded is higher than the version of the running configurations, the auto provision would upgrade, or stop Current Config Version here.
Page 91
Enterprise HD PoE IP Phone VIP-2020PT Phone Flash Set FTP/TFTP/HTTP server IP address for auto update. The Server Address address can be IP address or Domain name with subdirectory. Set configuration file’s name which need to update. System will Config File Name use MAC as config file name if config file name keep blank.
Page 92
Enterprise HD PoE IP Phone VIP-2020PT Syslog Configuration Field name Explanation Syslog Setting Server Address Set Syslog server IP address. Server Port Set Syslog server port. MGR Log Level Set the level of MGR log. SIP Log Level Set the level of SIP log.
Page 93
Enterprise HD PoE IP Phone VIP-2020PT 8.3.6.3 CONFIG Config Setting Field name Explanation User can save all changes of configurations. Click the Save Save Configuration button, all changes of configuration will be saved, and be effective immediately. Right clicks on “Right click here…” and select “Save Target As config File(.txt)”...
Page 94
Enterprise HD PoE IP Phone VIP-2020PT Update Field name Explanation Web Update Click the browse button, find out the config file saved before or provided by manufacturer, download it to the phone directly, Web Update press “Update” to save. User can also update downloaded update file, logo picture, ring, mmiset file by web.
Page 95
Enterprise HD PoE IP Phone VIP-2020PT FTP/TFTP server. The configuration will be effective after the phone is reset. 4. Phone book export (.vcf): Upload the phonebook file to FTP/TFTP server, name and save it. 5. PhoneBook import (.vcf): Download the phonebook file to phone from FTP/TFTP server.
Page 96
Enterprise HD PoE IP Phone VIP-2020PT This table shows the current user existed. User Set account user name. Set user level, Root user has the right to modify configuration, User Level General can only read. Password Set the password. Confirm Confirm the password.
Enterprise HD PoE IP Phone VIP-2020PT SECURITY 8.3.7 8.3.7.1 WEB FILTER WEB Filter User could make some device own IP, which is pre-specified, access to the MMI of the phone to config and manage the phone. Field name Explanation Web Filter Table Settings: Add or delete the IP address segments that access to the phone.
Page 98
Enterprise HD PoE IP Phone VIP-2020PT 8.3.7.2 FIREWALL Firewall Configuration In this web interface, User can set up firewall to prevent unauthorized Internet users from accessing private networks connected to the Internet (input rule), or prevent unauthorized private network devices from accessing the Internet (output rule).
Page 99
Enterprise HD PoE IP Phone VIP-2020PT Set the destination address. It can be IP address, network Des Address address, complete address 0.0.0.0, or network address similar to *.*.*.*. Set the source address’ mask. For example, 255.255.255.255 Src Mask means just point to one host; 255.255.255.0 means point to a network which network ID is C type.
Page 100
Enterprise HD PoE IP Phone VIP-2020PT different demands. We can provide the different security level protection in terms of the different resources by building a DMZ region which can provide the network level protection for the equipment environment, reduce the risk which is caused by providing service to distrust customer, and is the best position to put public information The following chart describes the network access control of DMZ.
Page 101
Enterprise HD PoE IP Phone VIP-2020PT FTP ALG IP into extranet IP when intranet IP is sending out packet. Select it to enable FTP ALG, the default is enabled. PPTP ALG Select it enable PPTP ALG, the default is enabled.
Page 102
Enterprise HD PoE IP Phone VIP-2020PT VPN Configuration Field name Explanation VPN IP Shows the current VPN IP address. Select L2TP. User can choose only one for current state. After User select it, User’s better save configuration and reboot User phone.
Enterprise HD PoE IP Phone VIP-2020PT VPN Password Set Password access to VPN L2TP Server. 8.3.7.5 SECURITY Security Field name Explanation Update Security File Select the security file User want to update, then click Update Select Security File button to update.
Page 104
9 Appendix 9.1 Digit-character map table Keypad Character Keypad Character 7 P Q R S p q r s 2 A B C a b c 8 T U V t u v 3 D E F d e f 9 W X Y Z w x y z 4 G H I g h i 5 J K L j k l...
Page 105
A7: Before dialing out, press the correspondence line number you want to use. For example, if User wants to use Line 2 to dial out, please press Line 2. Q8: How to set up the BLF function in the VIP-2020PT? A8: Before we start, please be reminded your IPPBX must also support BLF function.
Page 106
Q9: How to register VIP-2020PT to IPX-2100? [In IPX-2100] For extensions, please create a new account and remember their user name and password. [In VIP-2020PT] On VoIP / SIP page, please follow the messages below: SIP line: choose the line you want to register...
