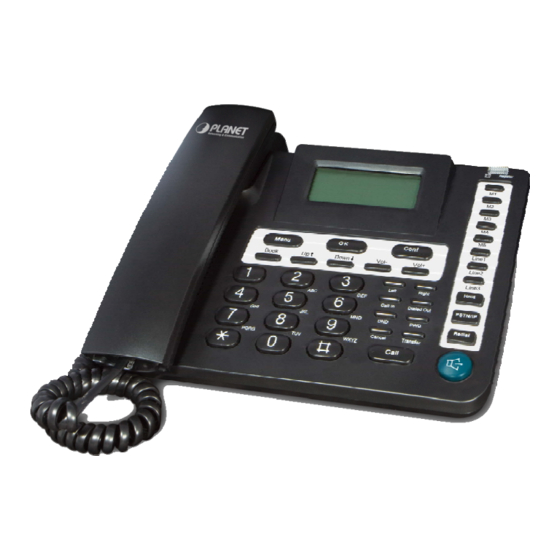

Planet VIP-254NT User Manual

Planet VIP-254NT User Manual

Sip ip phone with pstn spport
Table of Contents

Advertisement

SIP IP Phone with PSTN spport
VIP-254NT
User's manual
Version 1.0
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VIP-254NT and is the answer not in the manual?

Questions and answers

Summary of Contents for Planet VIP-254NT

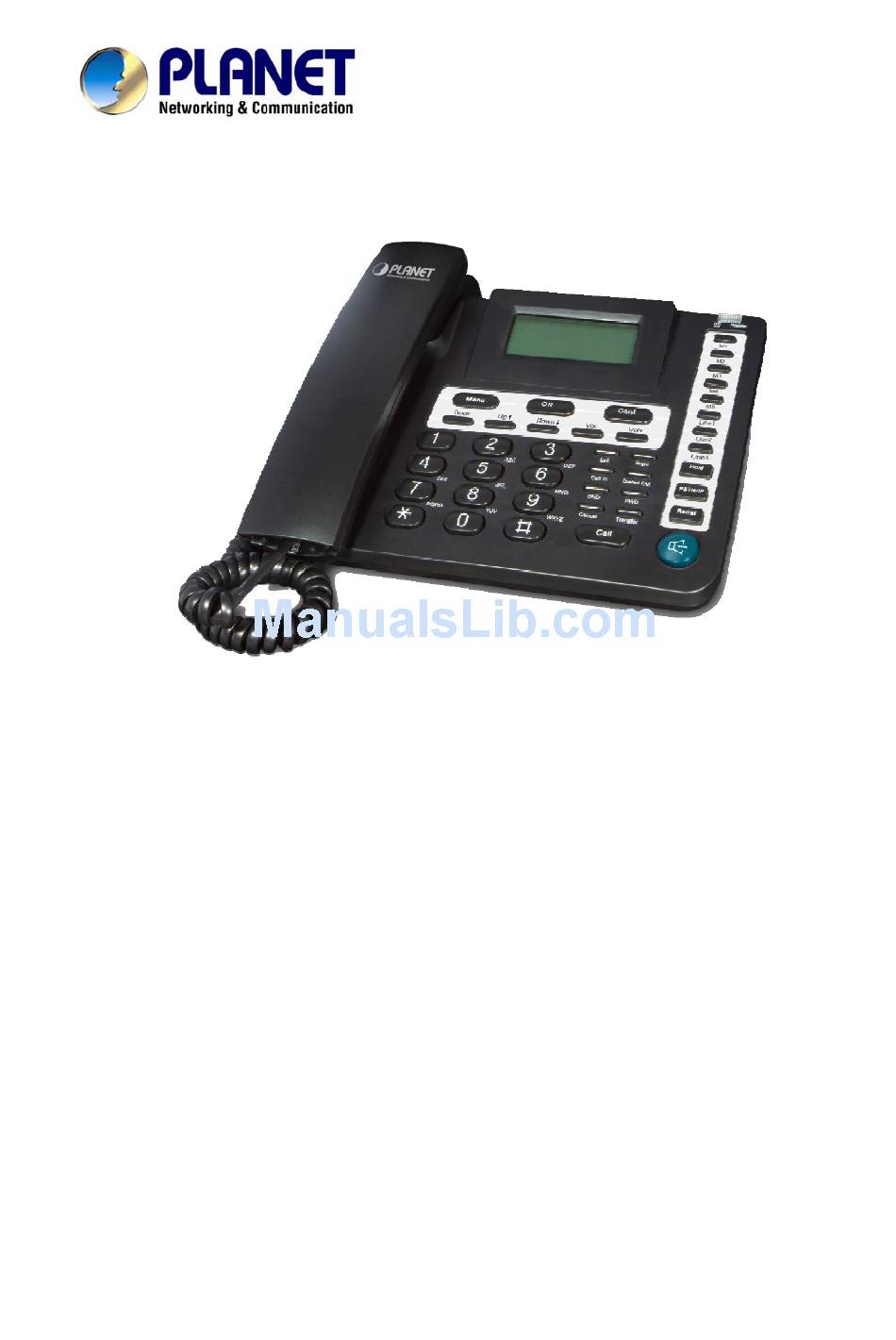

  • Page 1 SIP IP Phone with PSTN spport VIP-254NT User’s manual Version 1.0...
  • Page 2 Copyright Copyright (C) 2011 PLANET Technology Corp. All rights reserved. The products and programs described in this User’s Manual are licensed products of PLANET Technology, This User’s Manual contains proprietary information protected by copyright, and this User’s Manual and all accompanying hardware, software, and documentation are copyrighted.
  • Page 3 Revision User’s Manual for PLANET SIP IP Phone: Model: VIP-254NT Rev: 1.0 (2010, December) Part No. EM-VIP254NTV1.0...
  • Page 4: Table Of Contents

    TABLE OF CONTENTS Chapter 1 Introduction................6 Overview..........................6 Package Content .......................7 Physical Details .........................8 Front View and Keypad function................8 Rear View ........................9 Chapter 2 Preparations & Installation ..........11 Physical Installation Requirement ................11 Administration Interface ....................13 Web configuration access: ..................13 Chapter 3 Network Service Configurations........
  • Page 5 Case 6: Auto Answer Feature_IP to PSTN ...............50 Case 7: Auto Answer Feature_PSTN to IP...............52 Appendix B The method of operation guide ..............55 Call Transfer ......................55 3-Way Conference ....................55 Call Waiting ......................55 Switch the Realm (Registration Proxy Server) ............55 Appendix C VIP-254NT Specifications ................57...
  • Page 6: Chapter 1 Introduction

    IP Phone allow users to install in an existing network location without interfering with desktop PC network connections. The VIP-254NT is an ideal solution for office / home use as well as installation for Internet Telephony Service Provider (ITSP). It's the delivery platform for IP voice services that brings benefits from the VoIP technologies in your daily life.
  • Page 7: Package Content

    • Dynamic IP address assignment, and voice communication The IP Phone can act as a PPPoE/DHCP client, automatically obtaining an IP address for Internet access. • Various field applications compliant The IP Phone is capable of handling peer-to-peer and SIP proxy / IP PBX registration, authentication to interact with major IP PBX/SIP gateway/IP Phone in the market.
  • Page 8: Physical Details

    Physical Details The following figure illustrates the front/rear panel of IP Phone. Front View and Keypad function Front Panel of VIP-254NT Keypad Description Menu and all status shall be displayed for users. LCD Display To bring out the menu selection while IP Phone is in idle state.
  • Page 9: Rear View

    To switch between IP and PSTN calls. Press to dial the last dialed number when the IP Phone is Redial off-hooked. To switch between the usage of the handset and the speaker Hand Free devices. Rear View Rear Panel of VIP-254NT...
  • Page 10 7.5~12V DC Power input outlet RJ-45 connector, to maintain the existing network structure, connected directly to the PC through straight CAT-5 cable RJ-45 connector, for Internet access, connected directly to Switch/Hub through straight CAT-5 cable. FXO interface, for connect with PSTN line. Press PSTN/IP button PSTN to switch to PSTN mode.
  • Page 11: Chapter 2 Preparations & Installation

    Chapter 2 Preparations & Installation Physical Installation Requirement Step 1: Handset Connection Plug Handset Core with Handset and Handset Jack. Step 2: Connecting Power Adapter and Network Plug RJ-45 Cable with WAN port and Switch/Hub Use only the power adapter shipped with the unit to ensure Note correct functionality.
  • Page 12 Step 3: Computer Network Setup Plug RJ-45 Cable with LAN/PC port and Computer Step 4: Connecting PSTN Line If there is PSTN line, connect it with TEL IN port Step 5: Login Prompt Set your computer’s IP address to 192.168.0.x, where x is a number between 2 to 254 (except 1 where is being used for the IP Phone by default).
  • Page 13: Administration Interface

    Administration Interface The IP Phone provides GUI (Web based, Graphical User Interface) for machine management and administration. Key pad administration also available for simple configuration. Web configuration access: To start IP Phone web configuration, you must have one of these web browsers installed on computer for management •...
  • Page 14: Chapter 3 Network Service Configurations

    Chapter 3 Network Service Configurations Configuring and monitoring your IP Phone from web browser The IP Phone integrates a web-based graphical user interface that can cover most configurations and machine status monitoring. Via standard, web browser, you can configure and check machine status from anywhere around the world.
  • Page 15: Lan Ip Address Configuration Via Web Configuration Interface

    IP Phone main page LAN IP address configuration via web configuration interface Execute your web browser, and insert the IP address (default: 192.168.0.1) of VIP in the address bar. After logging on machine with username/password (default: root / without password), browse to “Network”...
  • Page 16 Default: 192.168.0.1 IP Phone Subnet Mask LAN mask of Default: 255.255.255.0 IP Phone Default Gateway Gateway of Default: 192.168.0.254 After confirming the modification you’ve done, Please click on the Submit button to apply settings and browse to “Save & Reboot” menu to reboot the machine to make the settings effective. Connection Type Data required.
  • Page 17: Chapter 4 Voip Ip Phone Configurations

    Chapter 4 VoIP IP Phone Configurations Information This page shows the major system information; there are WAN Port, LAN Port, System Information and Register Information. The user could know the network parameters, system firmware version and register status at this page.
  • Page 18: Phone Book Settings

    Phone Book settings IP Phone can set up 140 records of Phone Book. User can make calls via Phone Book feature of IP Phone. Field Description The default is Page 1. It can select Page1 ~ Page 7 to Phone Book Page look round Phone Book records.
  • Page 19 If you want to delete a phone number, you can click the “Delete” button at this record. For Example: STEP 1: IP Phone had added the above phone numbers. User press Phone Book button from keypad then the LCD screen will show below: Search: [ 3] STEP 2:...
  • Page 20: Speed Dial Settings

    Speed Dial settings In Speed Dial setting function you can add/delete Speed Dial number. The 1~5 records are available for M1 ~ M5 Speed Dial buttons, and 6~10 records are reserved at present. You can press the M1 ~ M5 buttons to dial the numbers that set at Speed Dial Setting.
  • Page 21: Dial Plan Settings

    Dial Plan Settings This page defines the Dial Plan Setting function. This function is when you input the phone number by the keypad but you don’t need to press “#”. After time out the system will dial directly. Field Description Drop Prefix The rule of add or replace code.
  • Page 22 - +: It means as “or”. For example, [123+456+334+5xx] even if [123 or 456 or 334 or 5xx] - x: It is equal to 0~9. For example, [5xx] even if the number begin Dial Now If the dialing number are match with this field, it will dial out and need not to press the “#”...
  • Page 23 Example_3: Drop prefix: Yes, Replace rule 2: 006, +: 002+003+004 (No limit the digit length) 1. If the dialing number is start as “002”, it will replace 002 by 006. The real dialing number is [006…]. 2. If the dialing number is start as “003”, it will replace 003 by 006. The real dialing number is [003…].
  • Page 24: Call Service Settings

    Call Service Settings You could setup the Call Forward, Hotline, DND and Alarm functions at this page. Field Description Call Forward Settings All incoming call will forward to the number you chosen. Busy If you are on the phone, the new incoming call will forward to the number you choosed.
  • Page 25: General Setting

    time. It can set up the disturb t time, 0:0 to 0:0 stand for all the time. Alarm Settings Alarm Type If set up as “Enable”, the phone will ringed up at the specific time. Alarm Time It can set up the system prompt time with 24 hours. General Setting You could setup the Volume, Ringer Type and Auto Answer functions at this page.
  • Page 26: Wan Settings

    Trunk Gateway function needs to arrange in with the registered Server System. The 3-Party subscribers could make Off-Net call (PSTN) through the PSTN port of VIP-254NT. Auto Answer To set after the ring count met the number you set then the auto Counter answer will enable.
  • Page 27: Ddns Settings

    To set the subnet address Subnet Mask To set the default gateway address Default Gateway DNS Type The default is Fixed mode, it could setup the DNS mode to manual or auto detection. DNS Server 1 It could setup the first DNS server address. DNS Server 2 It could setup the second DNS server address.
  • Page 28: Vlan Settings

    VLAN Settings This page defines the VLAN setting in this page. This function needs to co-operate with network devices which have VLAN function. Field Description If setup as “Enable”, it could receive VLAN messages. VLAN Packets Dispose VLAN ID is add a Tag header after realize enable the VLAN VID (802.1Q/TAG) function.
  • Page 29: Vpn (Pptp & L2Tp) Settings

    VPN (PPTP & L2TP) Settings The IP Phone has support PPTP and L2TP VPN client connections, the use could choose the VPN type, and input the authorization accounts for VPN connection in this page. SNTP Settings This page defines the primary and second SNTP Server IP Address, to get the date/time information. Also you can base on your location to set the Time Zone, and how long need to synchronize again.
  • Page 30: Nat Settings

    NAT Settings This page defines the PC setting in this page. Field Description LAN Mode The default is Bridge mode, and it also provides NAT mode. - Bridge: When set as is mode, the WAN and LAN ports are in the same network segment.
  • Page 31: Dmz Settings

    DMZ Settings This page defines the DMZ setting in this page. Field Description DMZ Type If setup as Enable, all of packets (expect SIP packets) will send to the specific IP address. The DMZ host IP address. Assigned IP Address MAC Clone Type This function will copy the MAC address from NIC (Network Interface Card) which placed in PC to LAN port of ATA.
  • Page 32: Service Domain Settings

    Field Description Index The serial number. There are total 12 records from Num 1 to 12. Enable The activate status. The default is Disable, this record will been activate if enable. Protocol The TCP or UDP communication protocol. For corresponding the internal port. Internal Port For corresponding the external port.
  • Page 33 Field Description You can input the name you want to display. Display Name Phone Number You need to input the Phone Number get from your ISP. Authentication ID You need to input the Authentication ID get from your ISP. Authentication Password You need to input the Register Password get from your ISP.
  • Page 34: Codec Settings

    Codec Settings This page defines the Codec priority, RTP packet length, and VAD function in this page. You need to follow the ISP suggestion to setup these items. When you finished the setting, please click the Submit button. The user also could defines the Codec ID at thie page. Sometimes 2 VoIP devices with different Codec ID will cause the interoperability issue.
  • Page 35: Advanced Settings

    Advanced Settings This page defines the Hold by RFC, Voice/SIP QoS and other settings in this page. To change these settings please following your ISP information. When you finished the setting, please click the Submit button. Field Description SIP Expire Time To setup the registration interval time.
  • Page 36: Stun Settings

    H: Wait time for ACK receipt To assign different SIP port range for ISP provider. SIP Port Range of Phone 1 RTP Port Range of Phone 1 To assign different RTP port range for ISP provider. Hold by RFC The default is disable, and to start up communication hold back function (RFC definition).
  • Page 37: Auto Configuration Setting

    Auto Configuration Setting This page defines the Auto Configuration (Auto Provision) setting. IP Phone supports TFTP, FTP, HTTP function in total.
  • Page 38: Auto Update Setting

    Auto Update Setting The device can update new firmware with the gz or ds file format automatically by the Auto Update function. Field Descriptions There are TFTP/ FTP and HTTP three ways to provide the auto Type update function. TFTP Server Input the TFTP Server address, and it could input the IP or Domain Name form.
  • Page 39: Update Firmware

    The device will according to the below ways to check the new Check new firmware firmware. - Power On and Scheduling: The machine will check the new firmware when power on and following the scheduling date and time. - Scheduling only: The machine will only follow the scheduling date and time to check the new firmware.
  • Page 40: Advanced Settings

    Note 1. After firmware loaded, the unit will be reboot, and Default IP address of the customized firmware: http://192.168.0.1; login name/password: root /null (no password) 2. If the firmware file format is .ROM type, please insert http://IP Phone address/update.htm in the address bar. Then select "All ROM" type to update firmware.
  • Page 41 Field Descriptions This function can disable echo when someone ping this device, ICMP Not Echo it can avoid haker try to attack the device. Auto Answer Call When you set Enable auto answer call, Answering from all incoming call. ( Auto open MIC ) If enable this function, machine will to start the calling hidden Send Anonymous CID function, and it will not send the related Caller information.
  • Page 42: Password Setting

    The encryption key is use to authentication data transmitted in Encryption Key the SIP network. PPPoE Retry period If PPPoE dial-up connection fail, machine will retry the dial-up motion after this time. System Log Server Machine could send the system logs to the specific Syslog Server.
  • Page 43: Tone Settings

    Tone Settings This page defines the Tone settings. This function can setup the related parameters of Dial Tone, Ring Back Tone, Busy Tone, Er ror Tone and Insert Tone. When you finished the setting, please click the Submit button. Restore Default Setting In Default Setting you can restore the IP Phone to factory default in this page.
  • Page 44: Save & Reboot

    Save & Reboot In Save & Reboot you can save the changes you have done. If you want to use new setting in the IP Phone, you have to click the Save button. After you click the Save button, the IP Phone will automatically restart and the new setting will effect.
  • Page 45: Appendix A Voice Communications

    200 / 123 (for VIP-254NT-B) for the voice calls. STEP 2: Please log in VIP-254NT-A via web browser, browse to the SIP setting menu and select the Domain Service config menu. In the setting page, please insert the account/password information obtained from your service provider (in this sample, we’re using PLANET SIP-50...
  • Page 46: Case 2: Call Forward Feature_Ip To Ip Forward

    In the following samples, we’ll introduce the Call Forward Feature applications. In this example, there are three VIP-254NT register to IPX-300 and VIP-254NT_A had set Call Forward function to VIP-254NT_B. (The detail registration settings of IPX-300 and VIP-254NT please refer to...
  • Page 47 VIP-254NT_A VIP-254NT_B VIP-254NT_C Machine configuration on the VIP-254NT: STEP 1: Please log in VIP-254NT_A via web browser, browse to the Phone Settings menu and select the Call Service config menu. In the setting page, please enable the All Forward function and fill the number of VIP-254NT_B in the Forward Number field, then the sample...
  • Page 48: Case 3: Call Forward Feature_All To Pstn

    Case 3: Call Forward Feature_All to PSTN In this example, there are one VIP-254NT which connected with PSTN line, and the other two VIP-254NT register to IPX-300. The VIP-254NT_A had set Call Forward function to phone number 1111-2222 (PSTN). Machine configuration on the VIP-254NT_A: Please log in VIP-254NT_A via web browser, browse to the Phone Settings menu and select the Call Service config menu.
  • Page 49: Case 4: Call Forward Feature_Pstn To Ip Forward

    Case 4: Call Forward Feature_PSTN to IP Forward In this example, there are three VIP-254NT register to IPX-300. The VIP-254NT_A had set Call Forward function to number 2002 (VIP-254NT_B). Machine configuration on the VIP-254NT_A: Please log in VIP-254NT_A via web browser, browse to the Phone Settings menu and select the Call Service config menu.
  • Page 50: Case 5: Call Forward Feature_Peer To Peer Mode

    Case 5: Call Forward Feature_Peer to Peer mode In this example, there are three VIP-254NT and connect with Peer to Peer mode. VIP-254NT_A had set Call Forward function to VIP-254NT_B. Machine configuration on the VIP-254NT_A: Please log in VIP-254NT_A via web browser, browse to the Phone Settings menu and select the Call Service config menu.
  • Page 51 Machine configuration on the VIP-254NT: STEP 1: Please log in VIP-254NT_A via web browser, browse to the Phone Settings menu and select the Call Service config menu. In the setting page, please disable All Forward function, and then the sample configuration screen is shown below:...
  • Page 52: Case 7: Auto Answer Feature_Pstn To Ip

    VIP-254NT_C Case 7: Auto Answer Feature_PSTN to IP In this example, there are three VIP-254NT register to IPX-300. The VIP-254NT_A had set Auto Answer function for forwarding to arbitrary telephone. If there have incoming PSTN calls and VIP-254NT_A doesn’t answer the incoming calls after specific time, the caller will hear prompt sounds...
  • Page 53 Machine configuration on the VIP-254NT: Please log in VIP-254NT_A via web browser, browse to the Phone Settings menu and select the General config menu. In the setting page, please choose Both option for Auto Answer function, and enable the PIN Code function, then the sample configuration screen is shown below: Test the scenario: 1.
  • Page 54 3. VIP-254NT_A will ring up but doesn’t answer the call 4. After 3 rings, the Phone Number 11112222 will hear the prompt sounds then input the password 123# 5. The Phone Number 11112222 will hear the dial tone then input 2002 6.
  • Page 55: Appendix B The Method Of Operation Guide

    Appendix B The method of operation guide In this section, we’ll introduce the features method of operation, and lead you step by step to establish these features. Call Transfer A. Blind Transfer 1. B call to A and they are in the process of conversation. 2.
  • Page 56 SIP accounts incoming call, and it can switch to any one SIP accounts for making calls through input the switch code. Realm switch code: : Realm 1 : Realm 2 : Realm 3 : Realm 4 : Realm 5 For example: The default is realm 1, input the (Follow by the # key) from keypad and hang up the telephone set.
  • Page 57: Appendix C Vip-254Nt Specifications

    Appendix C VIP-254NT Specifications Product SIP IP Phone with PSTN support Model VIP-254NT Hardware 1 x 10/100Mbps RJ-45 port 1 x 10/100Mbps RJ-45 port LCD display 2 x 16 characters Speaker Full duplex hands free speaker phone Protocols and Standard Standard SIP 2.0 (RFC3261), MD5 for SIP authentication (RFC2069/ RFC 2617), SIP...
