Remote Control Handle Switches

The remote control handle includes two (2) switches:
the engine stop switch and the lift/offset switch (Fig. 8).
The engine stop switch is a momentary switch that al-
lows the operator to shut the ProCore Processor engine
off from the tow vehicle. When this switch is depressed
and held, the engine magneto ignition system is
grounded to cause the engine to stop running.
The lift/offset switch is a two position switch that is used
to control the optional tow hitch. When this switch is in
the normal, lift position, the tow hitch hydraulic manifold
solenoids are not energized allowing tow vehicle hy-
draulic flow to be available for operation of the Proces-
sor lift cylinder. If the switch is moved to the alternate,
offset position, the tow hitch hydraulic manifold sole-
noids are energized allowing tow vehicle hydraulic flow
to be available for operation of the tow hitch hydraulic
offset cylinder.
Testing
1. Make sure that Processor ignition switch is in the
OFF position. Remove key from the ignition switch.
2. The switches and remote control handle wire har-
ness can be checked by unplugging the handle wire har-
ness from the main wire harness of the ProCore
Processor. Using a Multimeter set to ohms, test continu-
ity of the switches and remote handle wire harness as
follows (Fig. 8):
A. When the engine stop switch is in the normal
position (not depressed), there should not be conti-
nuity between handle wire harness connector termi-
nals B and E.
B. When the engine stop switch is depressed, there
should be continuity between connector terminals B
and E.
C. When the lift/offset switch is in the lift position,
there should not be continuity between connector
terminals A and C.
D. When the lift/offset switch is in the offset position,
there should be continuity between connector termi-
nals A and C.
3. If necessary, disassemble remote control handle
(Fig. 9) and test switch continuity using information
above at switch terminals (Fig. 10). Replace switch(es)
if necessary. Assemble remote control handle after
switch testing is completed.
4. Connect remote control handle wire harness to the
main wire harness of the ProCore Processor.
Electrical System
3
1
1. Remote control handle
2. Engine stop switch
2
1
1. Engine stop switch
1 1A
Page 5 - - 8
2
C

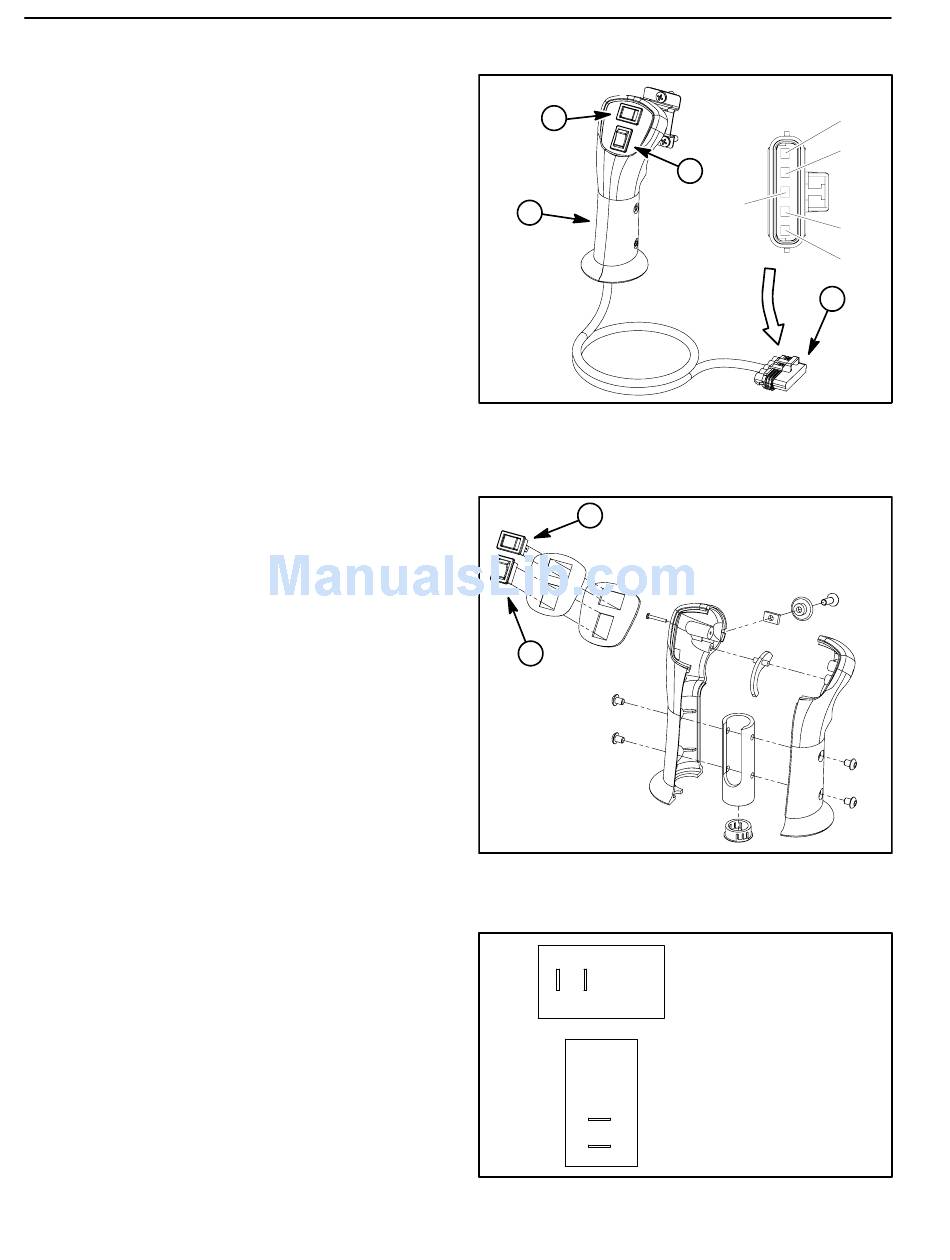

Figure 8
