Toro ProCore 648s Operator's Manual
  1. Manuals
  2. Brands
  3. Toro Manuals
  4. Lawn and Garden Equipment
  5. ProCore 648s
  6. Operator's manual

Toro ProCore 648s Operator's Manual

Hide thumbs Also See for ProCore 648s:
Table of Contents

Advertisement

Quick Links

Register at www.Toro.com.

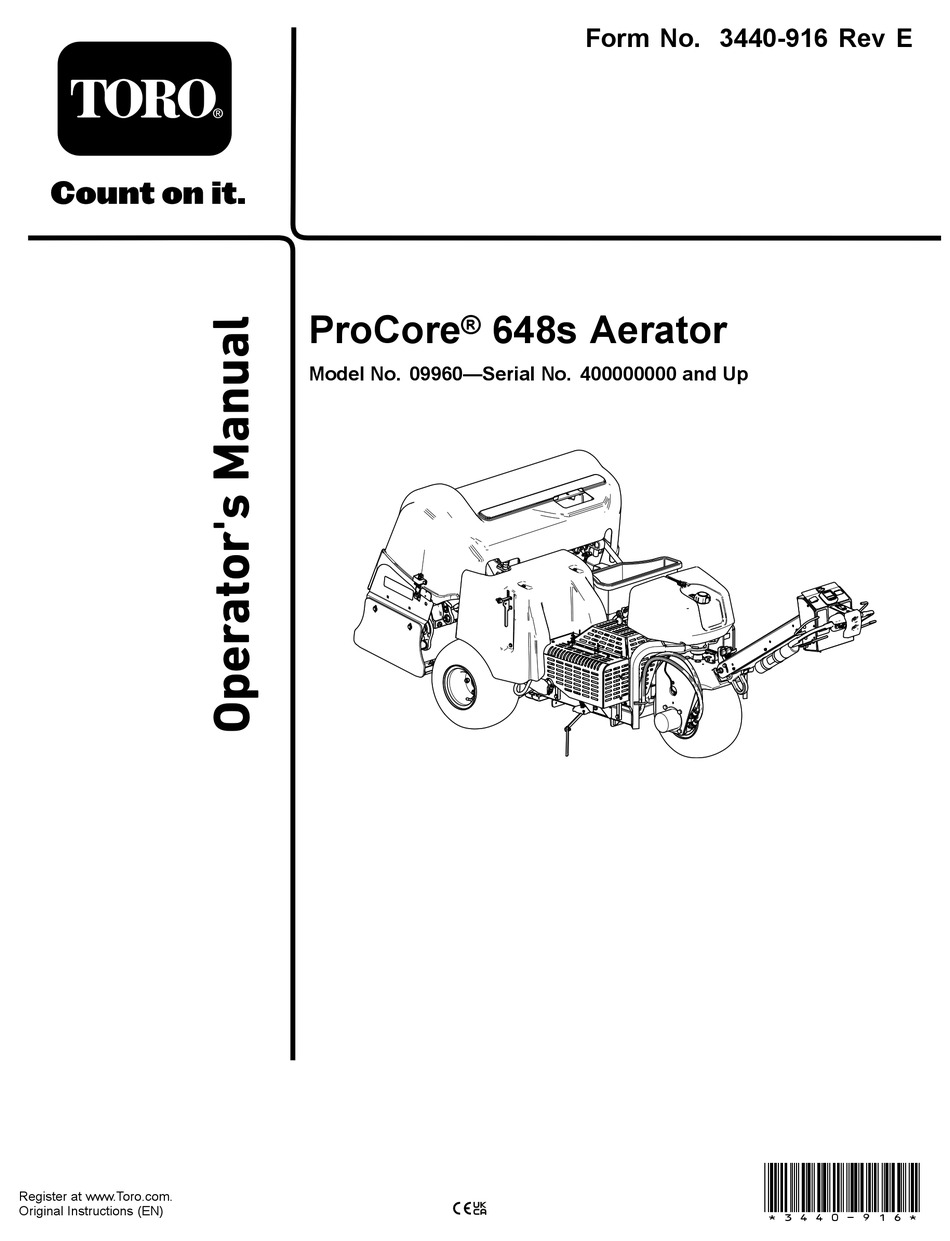

Original Instructions (EN)
ProCore
®
Model No. 09960—Serial No. 400000000 and Up
Form No. 3440-916 Rev E
648s Aerator
*3440-916*
