NOTE: For identification purposes, the hydraulic hose
to lift relief manifold port A is equipped with a cable tie
at the Core Processor quick coupler.
ProCore Processor
TOW HITCH
MANIFOLD
Page 4 - - 9
LIFT
CYLINDER
LIFT RELIEF
MANIFOLD
OFFSET
CYLINDER

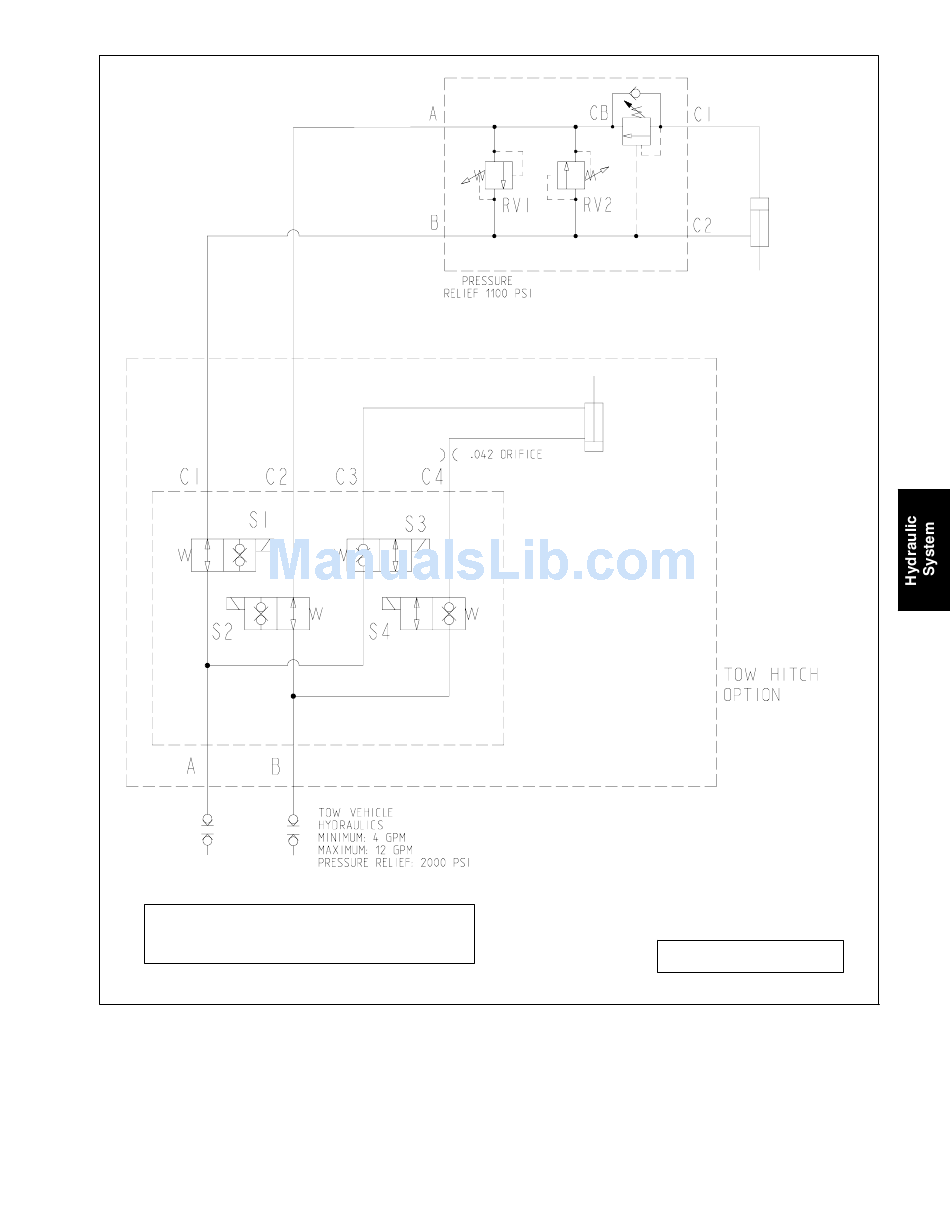

ProCore Processor
Hydraulic Schematic
With Tow Hitch Kit
All solenoids are shown as
de- -energized
Hydraulic System
