CHAPter 5 | OPerAtIOn
CHAnGInG lOCAl settInGs usInG dIsPlAy/menu
The menu button always takes you to the main menu, unless the system
is locked, in which case, it takes you to the unlock screen.
The sel button takes you to the selected menu/function.
The eXIt button takes you to back one level (function to menu, or menu
to previous menu). If you're already at the main menu, EXIT takes you
back to the clock. The CursOr buttons navigate the selected menu
options.
In functions, SEL and the cursors are function specific. Some functions
have multiple levels, so EXIT may need to be pressed more than once to
exit the function.
Top level is the clock.
If enabled, the password lock screen is the next level.
The next level is the main menu.

dIsPlAy menus

The display on the XP-8 is designed to give the installer feedback on the
current status of the XP-8, change settings such as the time/date and offer
some basic diagnostic tools for troubleshooting.
nOte
Any configuration changes made through the XP-8 display settings will be
overwritten after the XP-8 is rebooted or an RTI system file is downloaded
into the XP-8 memory.
If a hard button is pushed and the XP-8 screen briefly "bounces" this
indicates a selection that is invalid.

FrOnt PAnel lOCKOut

It is possible to set a passcode that will block access to the menu system
on the XP-8. This can be set in the properties of the XP-8 within the RTI
Integration Designer™ programming software and downloaded as part of
the system file. Use the cursor buttons on the XP-8 to enter the correct
passcode to open the menu display.
24

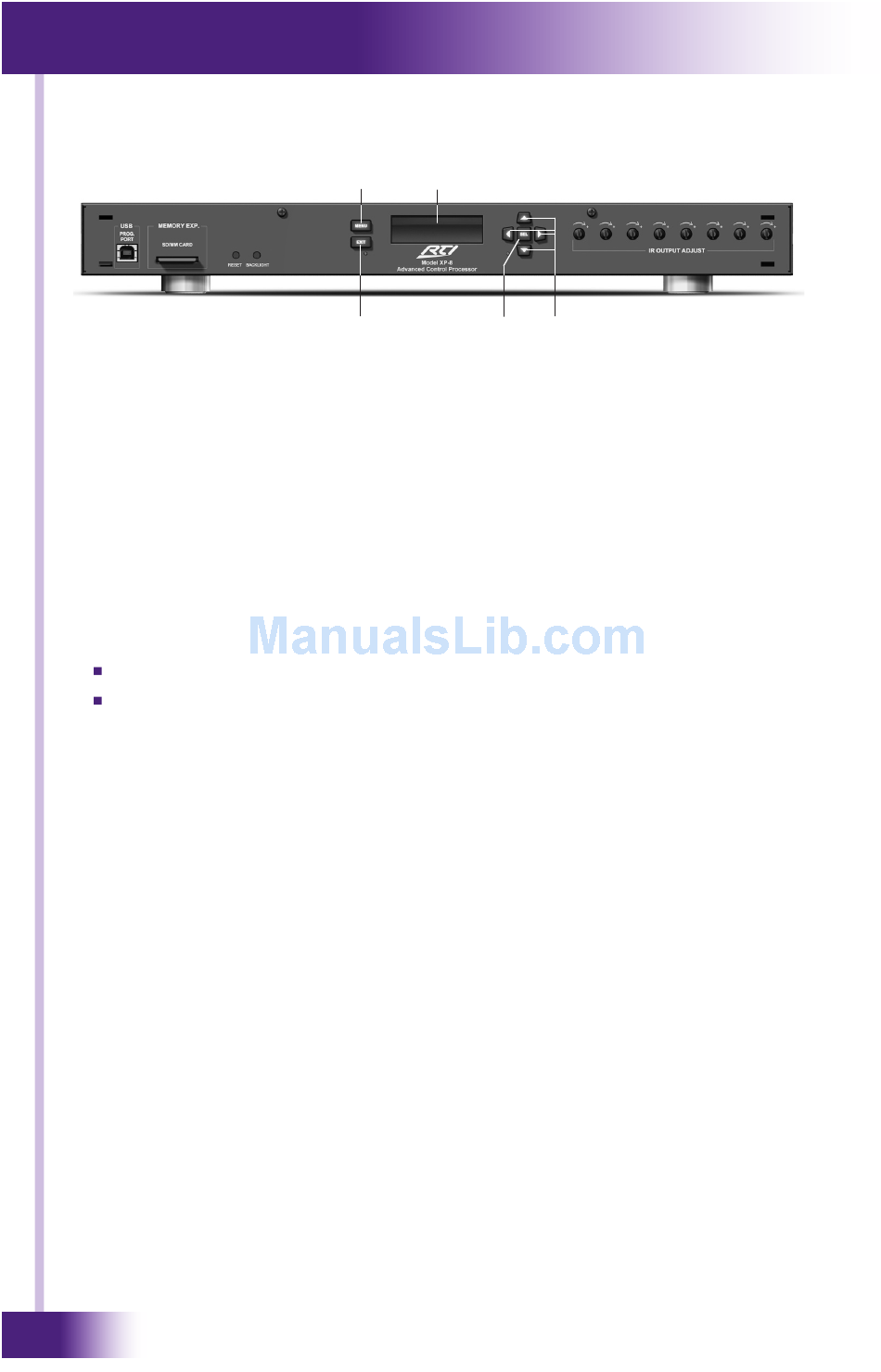

MENU DISPLAY
SEL
EXIT CURSOR
