RTI RP-4 Quick Reference Manual

Control processor

Download this manual

RP-4

Control Processor

Quick Reference Guide

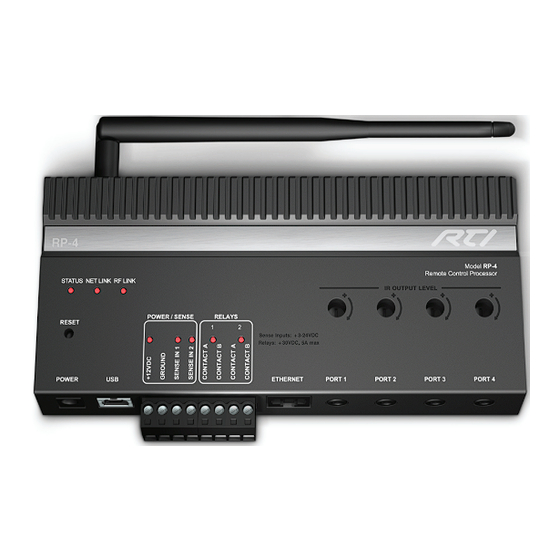

The RP-4 Control Processor is a powerful central controller that is designed for reliable control of audio/

video and other electronic systems. It combines an integrated 433MHz RF receiver, four assignable IR ports,

relays, support for the RTiPanel App (ver 1.2 or higher) and more — all in a small, cost-effective package.

The RP-4 is the perfect control processor for single room installations such as home theaters, media centers,

and bedrooms.

The RP-4 provides superior quality and reliability as well as these features:

• Stores all system commands and macros for reliable control.

• Integrated 433MHz RF receiver.

• Four infrared ports with routing and output adjustment.

• Supports RTiPanel App for one-way control via smart phones and tablets.

• Two voltage sense inputs for reliable, predictable control of devices.

• Two programmable relay outputs.

• Works with all RTI 433MHz wireless interfaces.

• RF signal reception LED.

• USB and Ethernet programming.

Table of Contents

Do you have a question about the RP-4 and is the answer not in the manual?

Page 1: Quick Reference Guide
Control Processor Quick Reference Guide The RP-4 Control Processor is a powerful central controller that is designed for reliable control of audio/ video and other electronic systems. It combines an integrated 433MHz RF receiver, four assignable IR ports, relays, support for the RTiPanel App (ver 1.2 or higher) and more — all in a small, cost-effective package.
Page 2: Connection Options
Single or Dual IR Emitters mOunTinG insTRuCTiOns The RP-4 should be located on a secure, flat surface, or mounted to a wall, shelf, or RP-4 Mounting Bracket cabinet using the enclosed mounting bracket. IMPORTANT NOTE: When mounting the RP-4, be certain to choose a safe location (e.g.
Page 3 OuTPuT Gain The IR output gain can be separately adjusted for each of the four output ports. The RP-4 is shipped with the IR gain set to the optimum level for most equipment, and it should only need to be adjusted if the attached equipment is not responding reliably. If adjustment is needed, rotate the IR output controls on the front of the RP-4 clockwise for higher output power, or counter-clockwise for lower output power.
Page 4: Federal Communications Commission Notice
RTI warrants its products for a period of one (1) year (90 days only for included battery packs); or for a period of time compliant with local laws when applicable from the date of purchase from RTI or an authorized RTI distributor.
