CHAPter 4 | COnneCtIOn OPtIOns
etHernet, usb, rtI COm, eXPAnsIOn POrt

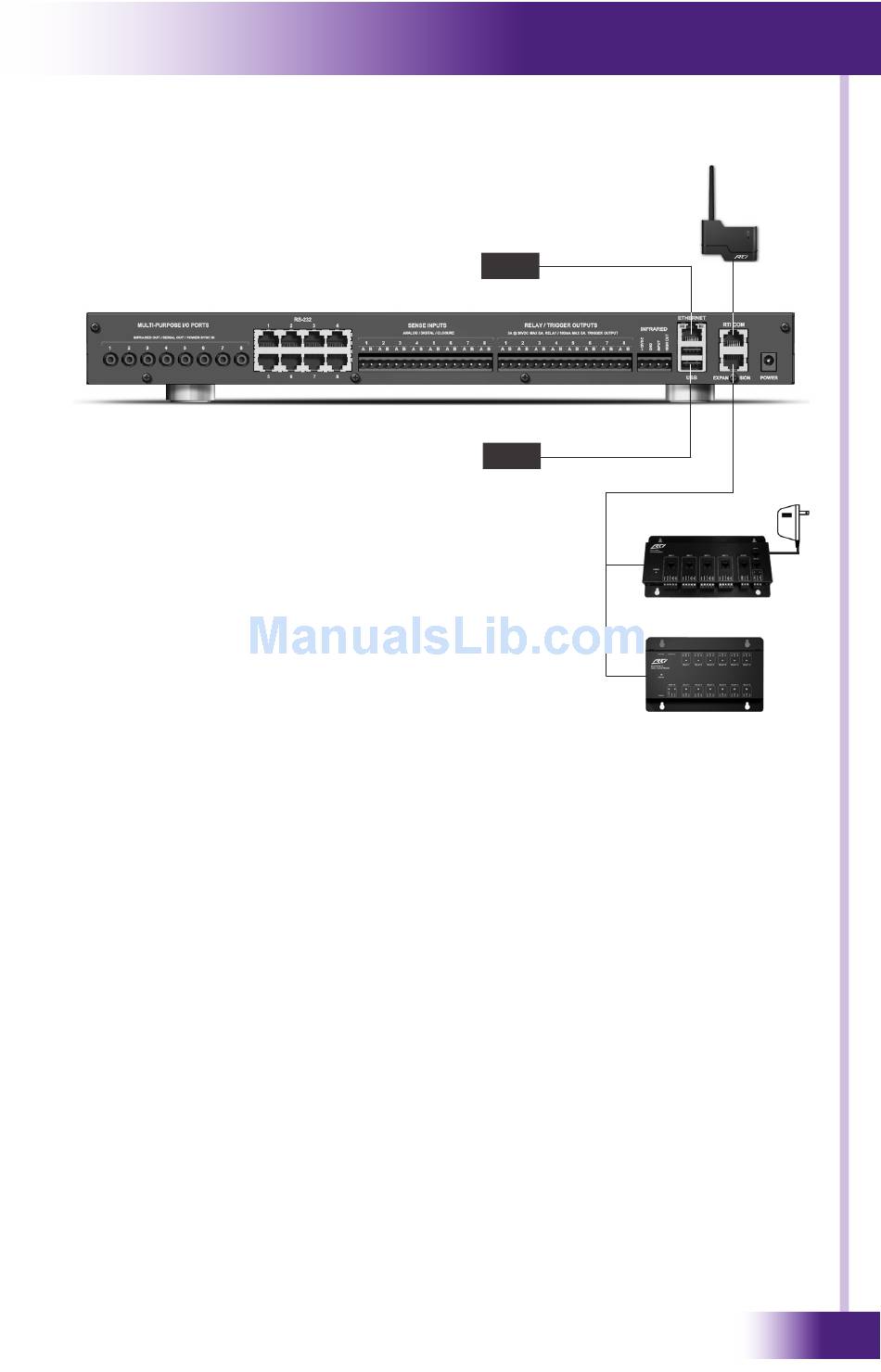

Examples:
etHernet
This RJ-45 port allows connection to a 10/100 Base-T Ethernet network
(LAN). Network settings such as the IP address are configurable within
Integration Designer™. Ethernet can be used to download system files to
the XP-8.
usb POrts (reAr)
These are host ports for external devices and are intended for future use.
rtI COm
This RJ-45 port allows connection to a Zigbee transceiver module. The
connection supports full duplex two-way communication for use with
compatible RTI handheld controllers. Refer to the Zigbee transceiver
module operation guide for installation instructions.
eXPAnsIOn POrt
This RJ-45 port provides a convenient connection for receiving IR signals
from in-wall touchpanels through a CB-4 connecting block. It also enables
two-way serial communication (RS-485) with in-wall touchpanels or
expansion devices such as the RCM-12 (Relay Control Module).
Optional accessories shown
are sold separately.
It's Under Control
Zigbee Module
LAN
USB
(Future Use)
CB-4
RCM-12
®
cat5
Power
Supply
21
