RTI XP-6s Reference Manual

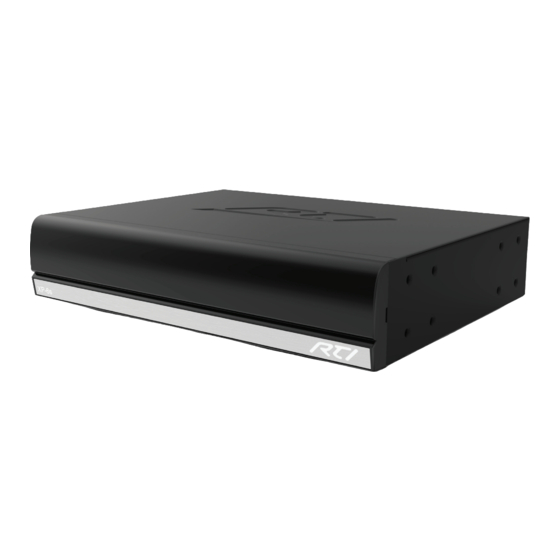

XP-6s Advanced Control Processor
The XP-6s is the powerful centerpiece of any professionally installed control system, designed to automate and
enhance the operation of A/V, security, lighting, HVAC, and countless other devices in a commercial or residential
environment. The XP-6s is packed with features to facilitate integration of third-party devices into one seamless
and cohesive system, with a variety of communication options such as RS-232, relay, IP, and routable IR control.
The XP-6s provides superior quality and reliability as well as these features:
• Powerful 32bit, 1GHz CPU.
• 512MB of RAM memory.
• 512MB of nonvolatile Flash memory.
• Six multi-purpose I/O ports.
• Three programmable 12VDC trigger outputs.
• Three assignable voltage sense inputs.
• Three programmable relay outputs.
• Three RS-232 ports for bi-directional communication.
• Built-in astronomical clock for time-based events and sleep timers.
• Multi-purpose I/O ports are compatible with industry standard IR emitters, blasters, and repeater systems.
• Input for connection of multiple RF receiver modules.
• Variable IR output on all ports.
• Multi-purpose I/O ports support all optional RTI power sensing and communications modules.
• Programmed using the Integration Designer
• Non-volatile Flash memory stores your system configuration even when power is not present.
• Fast USB 2.0 and Ethernet programming.
• Field upgradable firmware.
XP-6s
Advanced Control Processor
Reference Guide
Software.
®
