RTI XP-8v Reference Manual

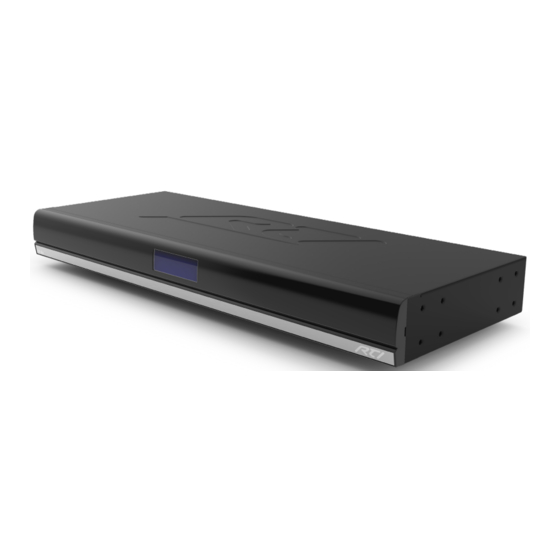

XP-8v Advanced Control Processor
The XP-8v is a high-end remote control processor for automating the operation of electronic systems in homes and
office buildings. The combination of a blazing fast MPU, real-time/multitasking operating system, and tremendous
expansion capability, make the XP-8v the perfect solution for large-scale and complex projects.
The XP-8v provides superior quality and reliability as well as these features:
• Powerful 1GHz internal processor.
• 4Gb of non-volatile flash memory.
• One HDMI output for on screen display (OSD) video interface
• Eight multi-purpose I/O ports.
• Eight programmable relay outputs.
• Eight two-way RS-232 ports.
• Eight sense inputs.
• Multi-purpose I/O ports are compatible with industry-standard IR emitters, blasters and repeater systems.
• Multi-purpose I/O ports support all optional RTI power sensing and communications modules.
• All output ports incorporate both short-circuit and overload protection.
• Variable IR output on all ports.
• Front panel controls/display (11 Buttons for front panel control).
• Non-volatile Flash memory stores your system configuration even when power is not present.
• Field upgradeable firmware.
• USB and Ethernet programming.
• Compatible with RTI 433MHz and 2.4GHz Zigbee
• Astronomical clock built in for time-based event programming.
• Designed for rack mount or free standing installations.
XP-8v
Advanced Control Processor
Reference Guide
RF modules.
®
