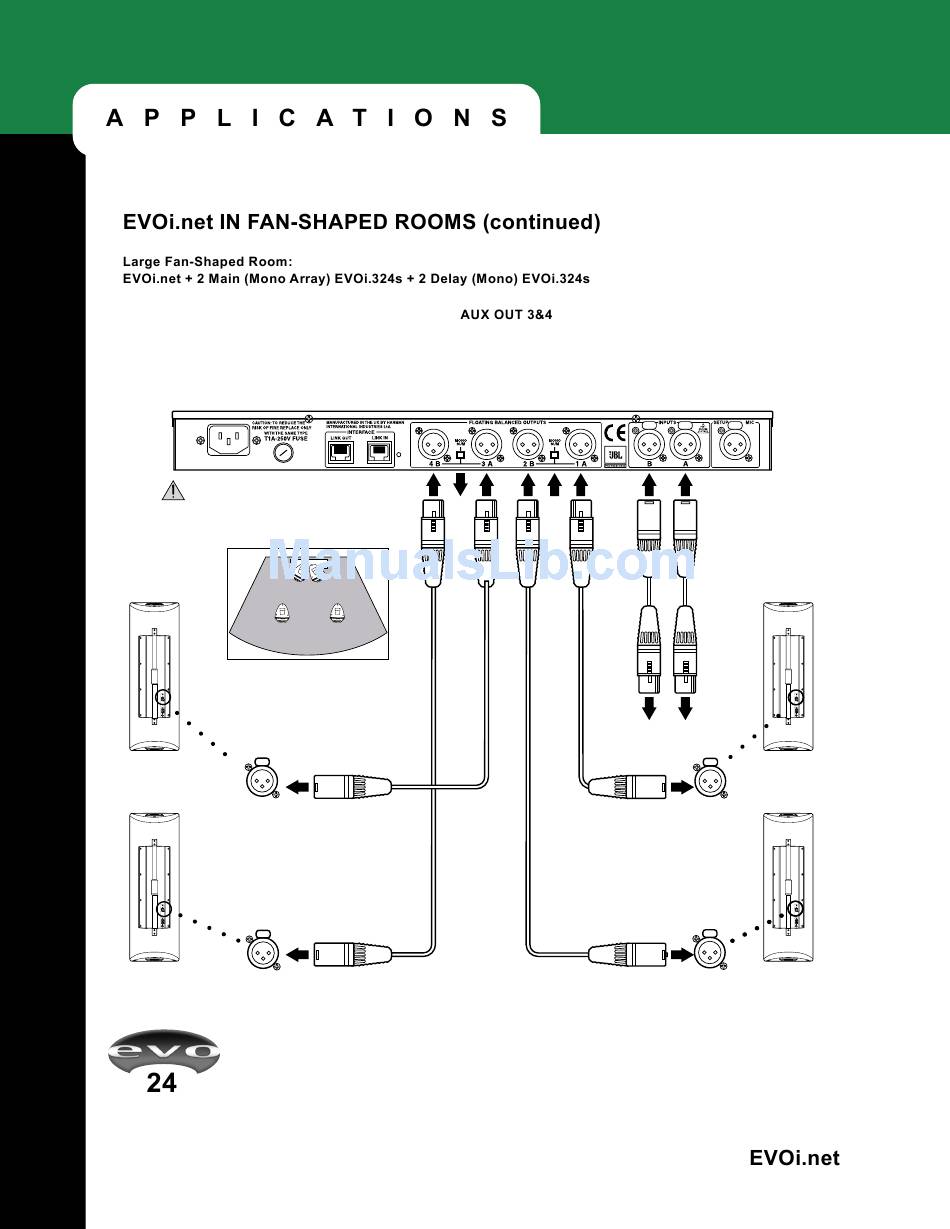

For a Large Fan Shaped Room, the Main Array is set up and hooked up to EVOi.net as illustrated below. The Delay EVO
Loudspeakers are positioned as illustrated and hooked up to
back of the listening area. The approximate positions and placement sequence of the Measurement Microphone are
illustrated on the inset diagram.
IMPORTANT: Make sure POWER is off
before making connections.
Speaker Placement In Room
EVOi.324
Delay L
Approximate measurement microphone placement.
1 = Auto EQ. Main Out Setup 1&2
2 = Auto EQ. Aux Out Setup 3&4
3 = Delay Setup
EVOi.324
Delay R
EVOi.324
Input
EVOi.324
Input
EVOi.net Rear
(NOTE: For clarity, power connections are not shown.)
Out
1
3
2
Delay L
Delay R
XLR Signal Cables
, providing additional coverage towards the
R
L
In
XLR Signal Cables
R
L
Audio Outputs
(from Mixer)
Main Mono 1
EVOi.324
Input
Main Mono 2
EVOi.324
Input
EVOi.324
Main Mono 1
EVOi.324
Main Mono 2
