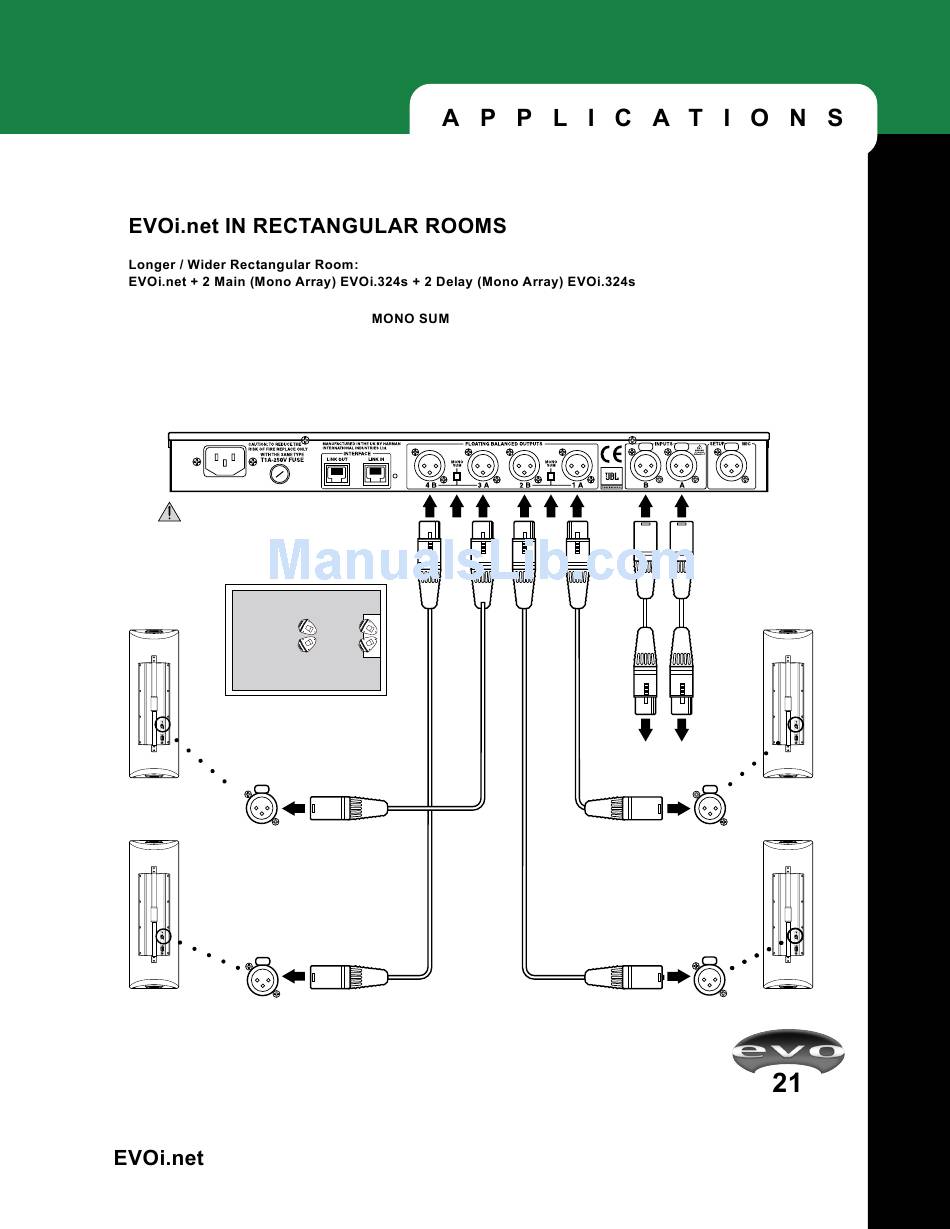

Another typical configuration for larger rooms is to configure two mono arrays, as illustrated in the inset diagram.
EVOi.net is hooked up as shown with both
IMPORTANT: Make sure POWER is off
before making connections.
Speaker Placement In Room
EVOi.324
Delay Mono 1
2 3
Approximate measurement microphone placement.
1 = Auto EQ. Main Out Setup 1&2
2 = Auto EQ. Aux Out Setup 3&4
3 = Delay Setup
EVOi.324
Delay Mono 2
EVOi.324
Input
EVOi.324
Input
switches engaged.
EVOi.net Rear
(NOTE: For clarity, power connections are not shown.)
In
1
Delay Mono 1
Delay Mono 2
XLR Signal Cables
Mono Mono
In
XLR Signal Cables
Mono Mono
Audio Outputs
(from Mixer)
Main Mono 1
EVOi.324
Input
Main Mono 2
EVOi.324
Input
EVOi.324
Main Mono 1
EVOi.324
Main Mono 2
