In a longer rectangular room, additional coverage may be required. Page 12 of the EVOi.324 Users Guide illustrates a

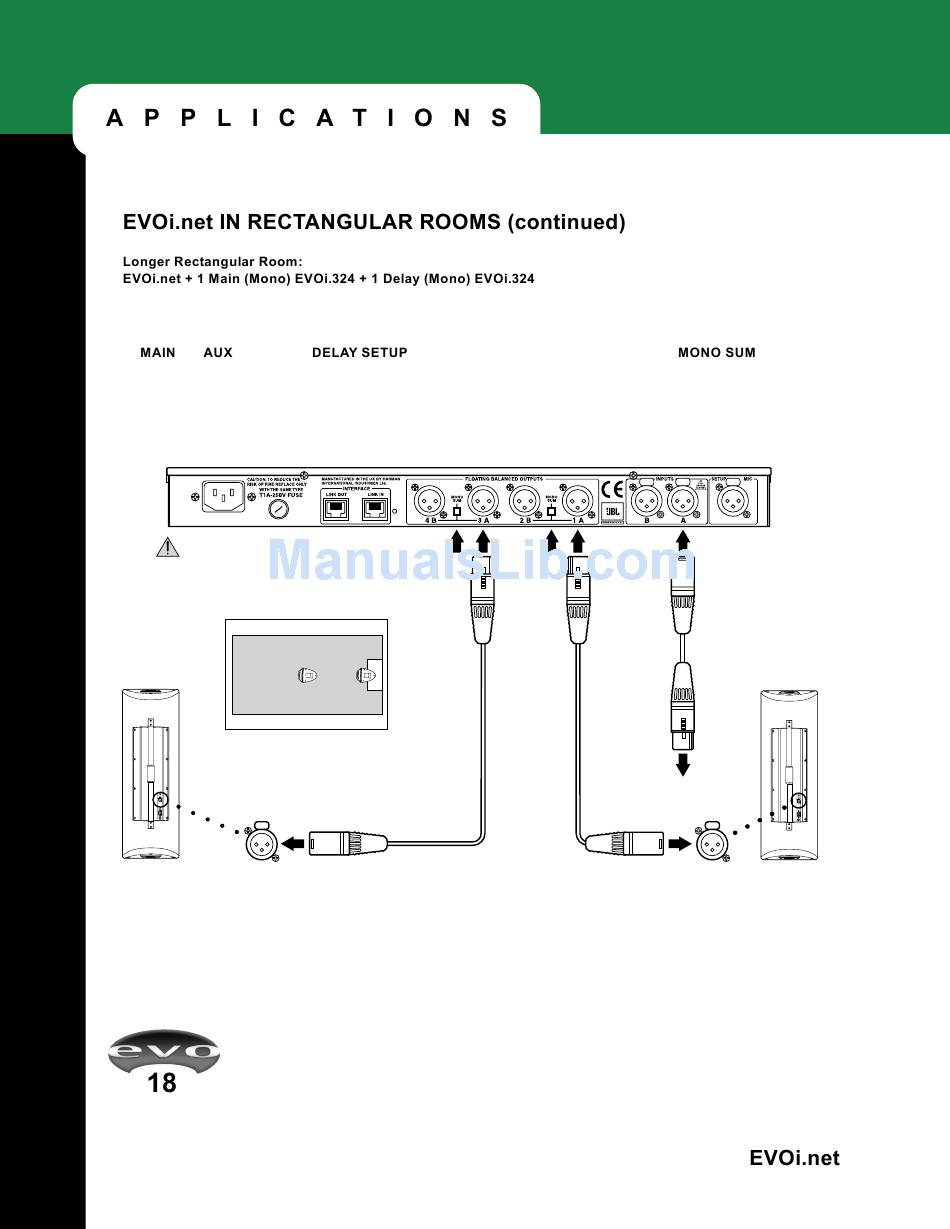

typical application. The diagram below illustrates the hook-up required and typical Measurement Microphone placement,
see details page 12 . The inset diagram also show the order of Measurement Microphone placements when setting Auto EQ
on and (Delay), also
IMPORTANT: Make sure POWER is off
before making connections.
Speaker Placement In Room
EVOi.324
Delay
2 3
Approximate measurement microphone placement.
1 = Auto EQ. Main Out Setup 1A
2 = Auto EQ. Aux Out Setup 3A
3 = Delay Setup
EVOi.324
Input
Microphone position. Remember to engage the
EVOi.net Rear
(NOTE: For clarity, power connections are not shown.)
In
1
Delay Mono
XLR Signal Cables
Mono Mono
In
Audio Output
(from Mixer)
Main Mono
switch.
Mono
XLR Signal Cable
EVOi.324
Main
Mono
EVOi.324
Input
