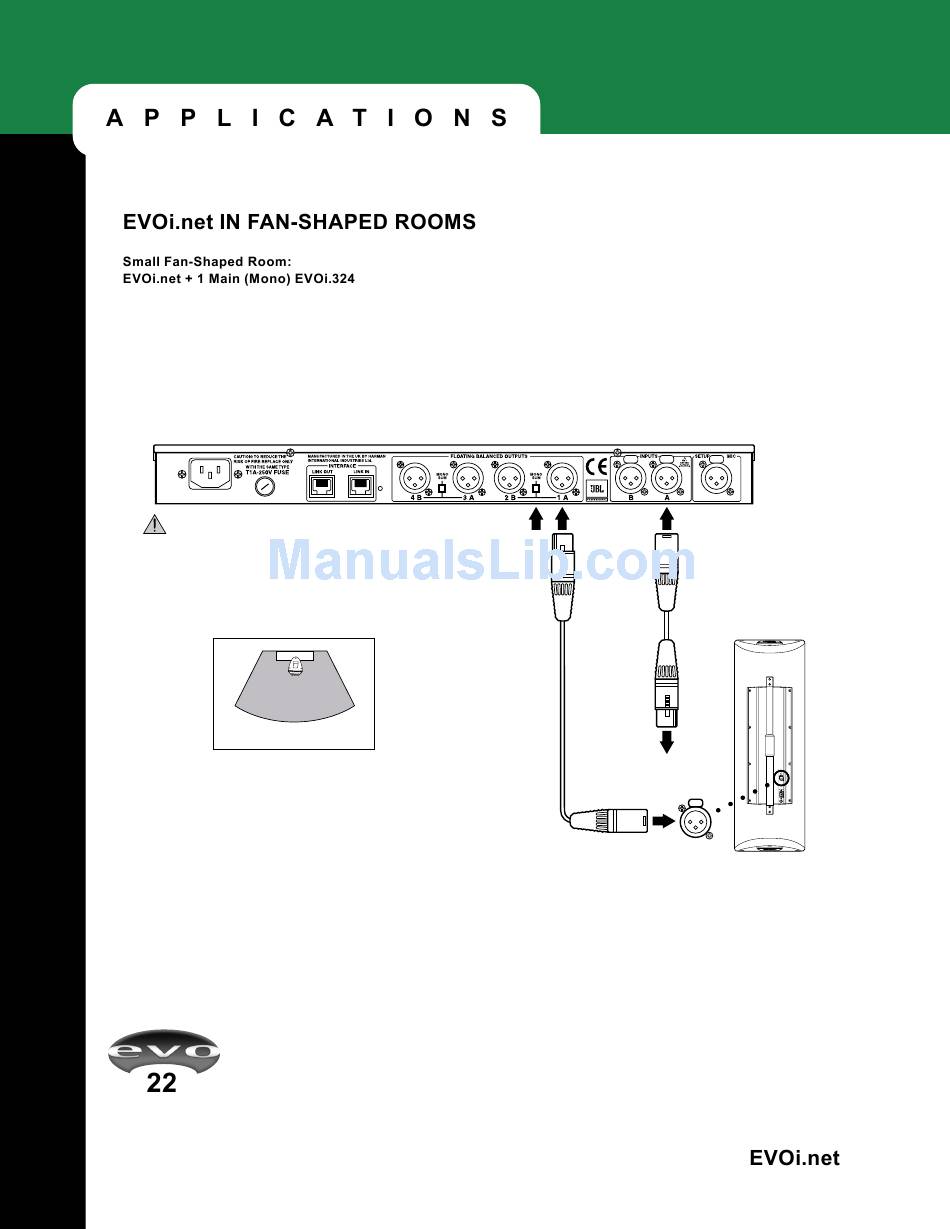

EVOi.net hook up configuration and Measurement Microphone are as illustrated below. The setup is identical to EVOi.net
in a Small Rectangular Room.
IMPORTANT: Make sure POWER is off
before making connections.
Speaker Placement In Room
1
Approximate measurement microphone placement.
1 = Auto EQ. Main Out Setup 1&2
EVOi.net Rear
(NOTE: For clarity, power connections are not shown.)
Mono
Mono
In
XLR Signal Cable
Mono
Audio Output
(from Mixer)
Main Mono
XLR Signal Cable
EVOi.324
Input
