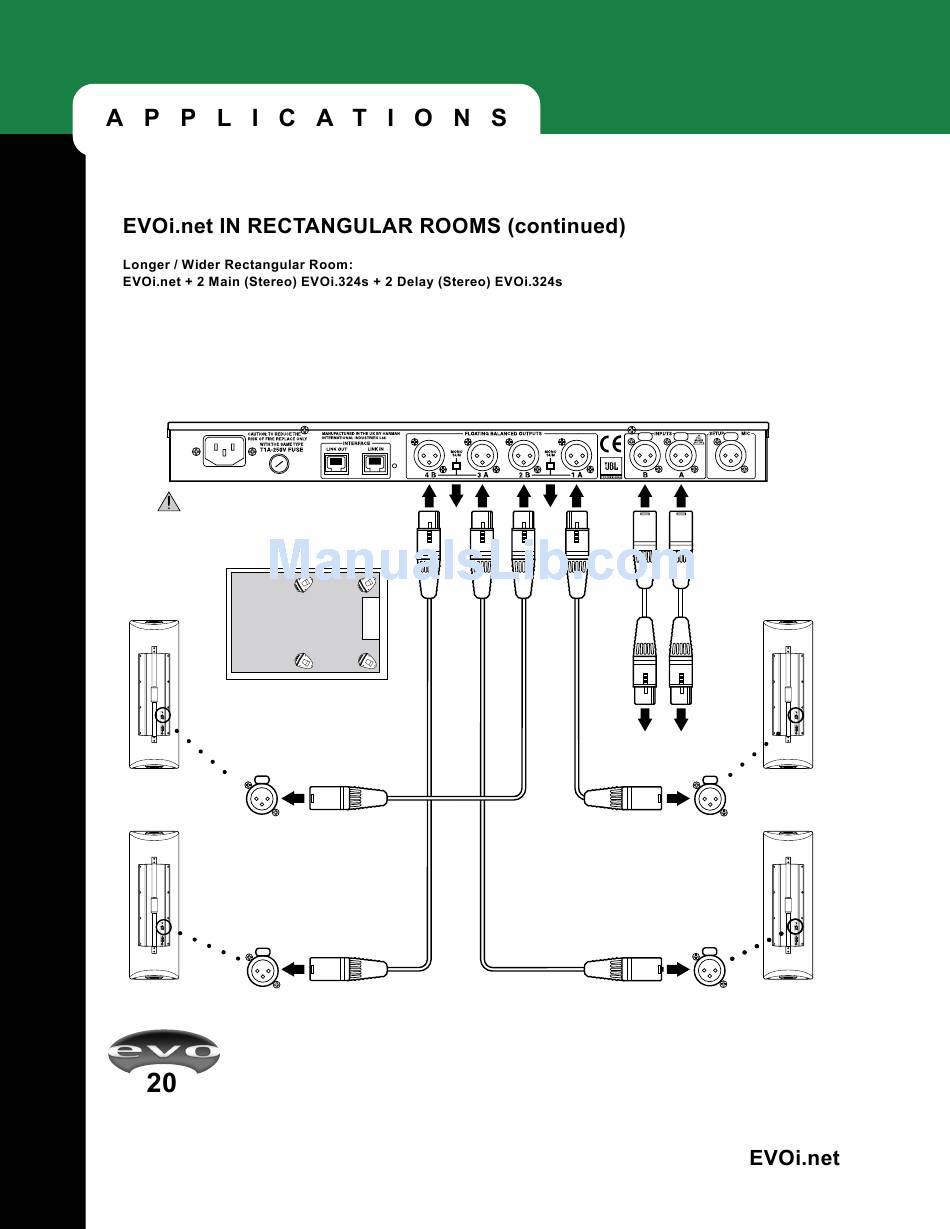

In large rooms, an EVO system as illustrated in the inset diagram may be required. EVOi.324s are hooked up to MAIN
OUT 1&2 and the Delays, AUX OUT 3&4. Stereo is required, so EVOi.324s are positioned as shown (refer to EVOi.324
Users Guide page 13) and the Measurement Microphone placement and order of positioning is shown.
IMPORTANT: Make sure POWER is off
before making connections.
Speaker Placement In Room
EVOi.324
Main R
2
3
Approximate measurement microphone placement.
1 = Auto EQ. Main Out Setup 1&2
2 = Auto EQ. Aux Out Setup 3&4
3 = Delay Setup
EVOi.324
Delay R
EVOi.324
Input
EVOi.324
Input
EVOi.net Rear
(NOTE: For clarity, power connections are not shown.)
R
Out
1
Main R
Delay R
XLR Signal Cables
L R
L
R
Out
R
Audio Outputs
(from Mixer)
Main L
Delay L
L
XLR Signal Cables
EVOi.324
Main L
L
EVOi.324
Delay L
EVOi.324
Input
EVOi.324
Input
