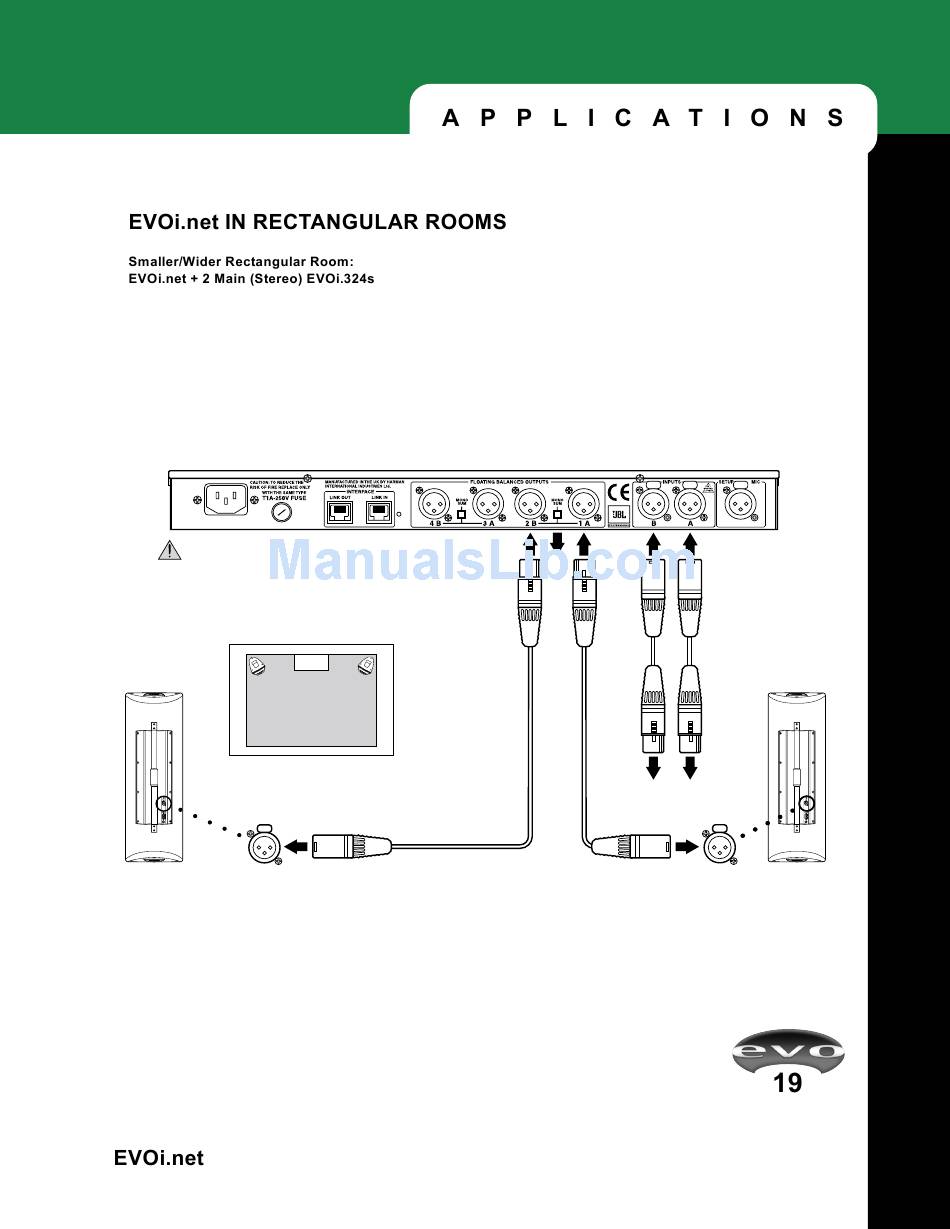

The hook up diagram below illustrates the most typical EVO Systems configuration. The inset diagram illustrates the
approximate Measurement Microphone position when performing Auto EQ setup (for accurate placement details see
'Placing Measurement Microphone for MAIN EVO Loudspeakers' page11).
IMPORTANT: Make sure POWER is off
before making connections.
Speaker Placement In Room
EVOi.324
Main R
Approximate measurement microphone placement.
1 = Auto EQ. Main Out Setup 1&2
EVOi.324
Input
EVOi.net Rear
(NOTE: For clarity, power connections are not shown.)
1
Main R
R
L
R
Out
R
Audio Outputs
(from Mixer)
Main L
XLR Signal Cables
L
XLR Signal Cables
EVOi.324
Main L
L
EVOi.324
Input
