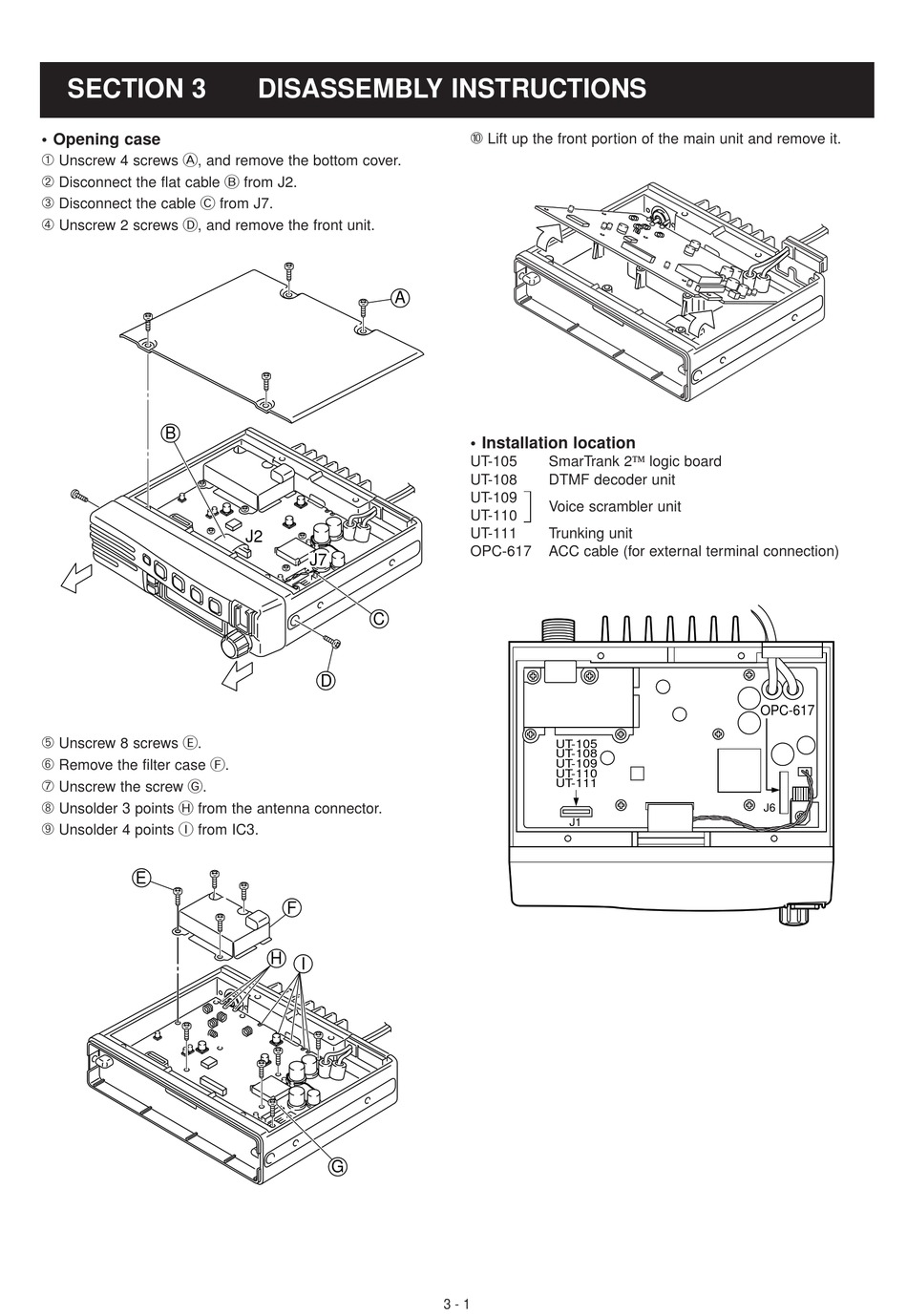

Front Unit - Icom iF110 Service Manual

SECTION 3
• Opening case
Unscrew 4 screws A, and remove the bottom cover.
Disconnect the flat cable B from J2.
Disconnect the cable C from J7.
Unscrew 2 screws D, and remove the front unit.
B
Unscrew 8 screws E.
Remove the filter case F.
Unscrew the screw G.
Unsolder 3 points H from the antenna connector.
Unsolder 4 points I from IC3.
E
DISASSEMBLY INSTRUCTIONS
A
J2
J7
C
D
F
H
I
G
Lift up the front portion of the main unit and remove it.
• Installation location
UT-105 SmarTrank 2 logic board
UT-108 DTMF decoder unit
UT-109
Voice scrambler unit
UT-110
UT-111 Trunking unit
OPC-617 ACC cable (for external terminal connection)
UT-105
UT-108
UT-109
UT-110
UT-111
J1
3 - 1
OPC-617
J6
