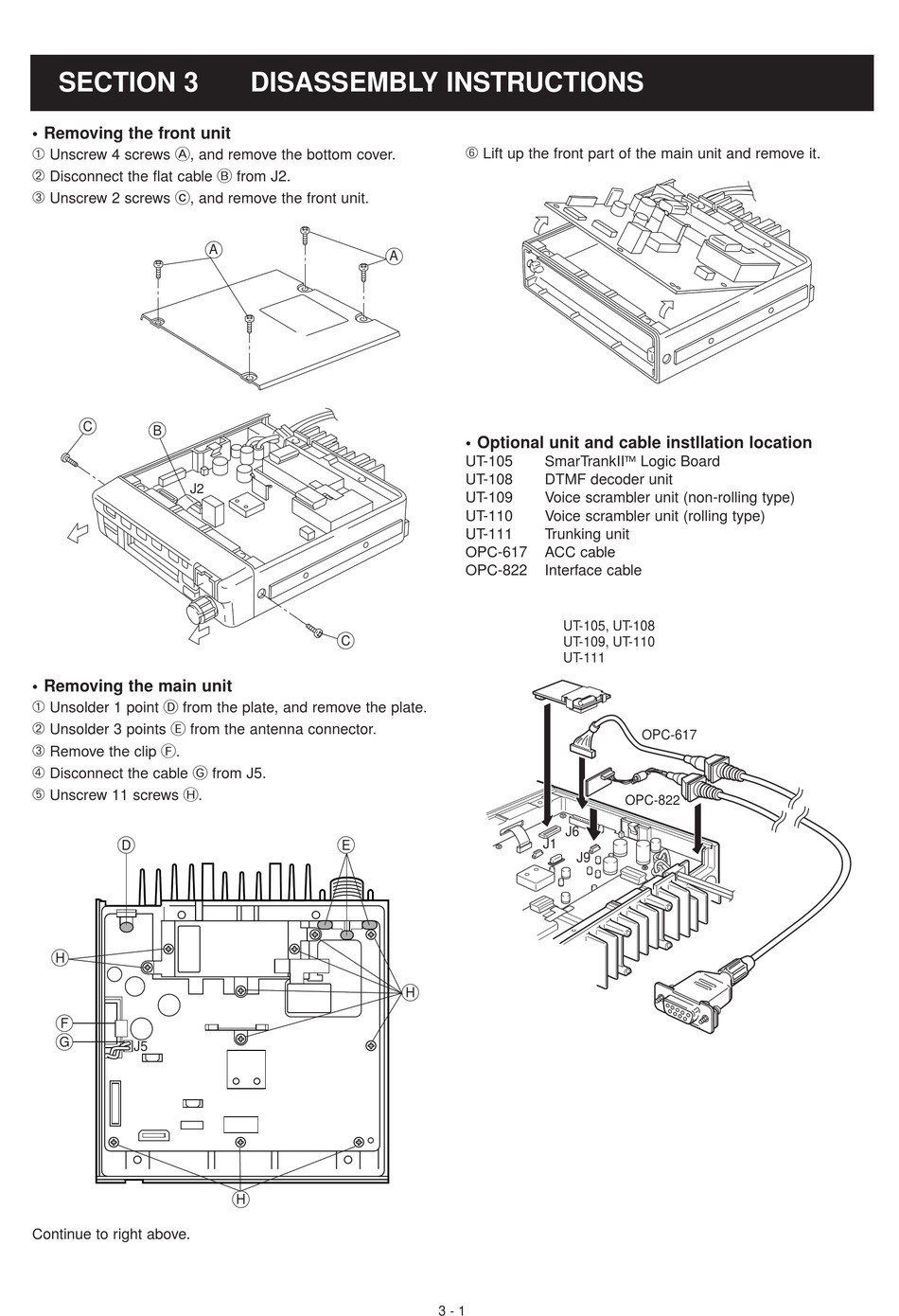

SECTION 3
• Removing the front unit
Unscrew 4 screws A, and remove the bottom cover.
Disconnect the flat cable B from J2.
Unscrew 2 screws c, and remove the front unit.
C
B
J2
• Removing the main unit
Unsolder 1 point D from the plate, and remove the plate.
Unsolder 3 points E from the antenna connector.
Remove the clip F.
Disconnect the cable G from J5.
Unscrew 11 screws H.
D
H
F
G
J5
Continue to right above.
DISASSEMBLY INSTRUCTIONS
A
C
E
H
Lift up the front part of the main unit and remove it.
A
• Optional unit and cable instllation location
UT-105 SmarTrankII Logic Board
UT-108 DTMF decoder unit
UT-109 Voice scrambler unit (non-rolling type)
UT-110 Voice scrambler unit (rolling type)
UT-111 Trunking unit
OPC-617 ACC cable
OPC-822 Interface cable
J1
H
3 - 1
UT-105, UT-108
UT-109, UT-110
UT-111
OPC-617
OPC-822
J6
J9
