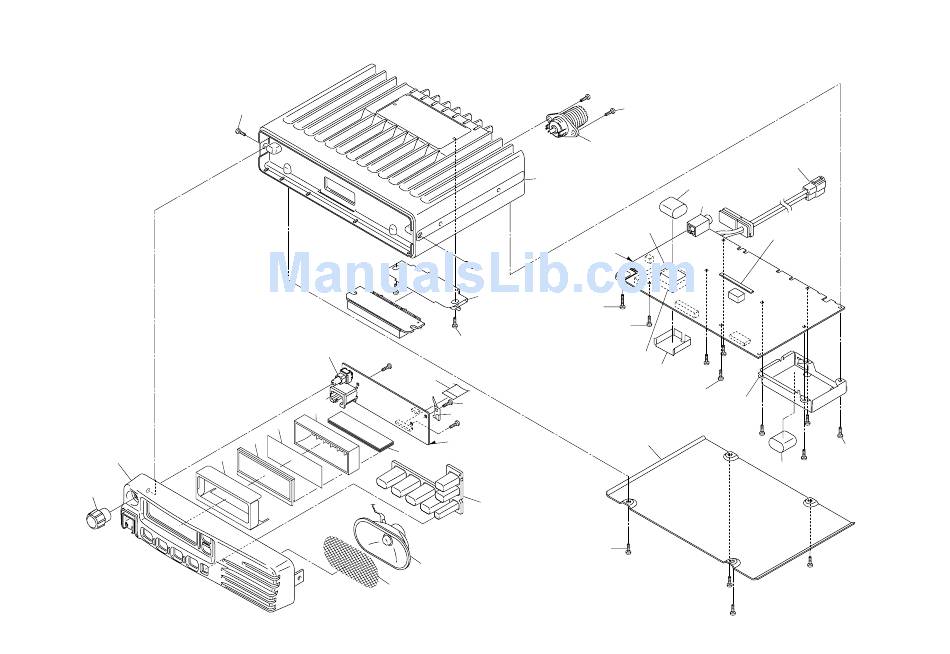

Icom iF110 Service Manual page 25

MP15 (C)
DS11 (F)
MP5 (C)
MP3 (C)
MP7 (C)
7 - 2
R14 (F)
W1 (F)
J1 (F)
MP6 (C)
MP16 (C)
EP2 (F)
SP1 (F)
MP17 (C)
MP10 (C)
J1 (C)
MP1 (C)
MAIN UNIT
MP7 (M)
MP13 (C)
MP9 (C)
MP11 (C)
MP4 (M)
MP12 (C)
MP1 (F)
FRONT UNIT
MP2 (C)
MP4 (C)
MP14 (C)
Unit abbreviations (F): FRONT UNIT
(M): MAIN UNIT
(C): CHASSIS PARTS
W2 (M)
MP10 (M)
J4 (M)
MP1 (M)
MP9 (M)
MP5 (M)
MP9 (C)
MP6 (M)
MP11 (M)
MP9 (C)
