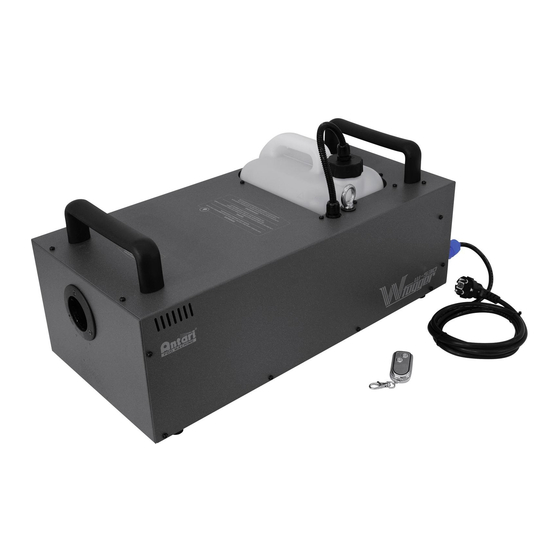

W-515 & W-530 Fog Machine
User Manual
Please read and save these instructions.
Antari Lighting and Effects Ltd.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the W-515 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Antari W-515

  • Page 1 W-515 & W-530 Fog Machine User Manual Please read and save these instructions. Antari Lighting and Effects Ltd.
  • Page 2 User Manual W-515 & W-530 Fog Machine Congratulations on the purchase of your new ANTARI W-Series FOG MACHINE. Introduction Thank you for choosing an ANTARI W-Series Fog Machine. You now own a rugged and powerful state-of-the-art machine. Prior to use, we suggest that you carefully read all of the instructions.
  • Page 3: Unpacking And Inspection

    If your ANTARI W-515 & W-530 Fog Machine fails to work properly, discontinue use immediately. Drain all fog liquid from the tank, pack the unit securely (preferably in the original packing material), and return it to your ANTARI dealer for service.
  • Page 4: Operation

    Control Panel Instruction FUNCTION VOLUME MANUAL TIMER There are total 6 buttons on the control panel of Antari W-515/W-530. They are Function Timer Up Down Volume , and Manual respectively. User can adjust the desired settings in the sub-menus as followings: When the heat-up process is completed, the LCD (Liquid Crystal Display) screen shows “Ready To Fog W”...
  • Page 5 Manual button until the “Empty Fluid” is relieved (dis-alarmed) on the LCD screen. 9. On W-515 and W-530, if the fluid sensor is not needed, user can switch it off. When LCD displays “Ready To Fog”, press FUNCTION seven times, the LCD screen shows Fluid Sensor On .
  • Page 6 - All transmitters are compatible to any receiver. * Receiver: - The receiver is pre-equipped firmly and tested to each of the W-515 & W- 530 (rear panel), please do not try to remove it. Radio Wireless Remote Functions and Setting: All receivers can receive signals from any registered transmitter.
  • Page 7 The included transmitter has been registered before shipment. User can use it directly without any setting. The initial setting is pressing button A can trigger the machine and pressing button B can stop it. If user wants to use other transmitters (except the included one) to control machine, the setting must be completed within 15 seconds after switching on machine.15 seconds after switching on machine, it will leave “transmitter setting mode”...
  • Page 8 If you are unable to determine the cause of the problem, do not continue pressing the remote, as this may damage the unit. Return the machine to your ANTARI dealer. W-515 External View 01-Nozzle 02-Handle 03-Body 04-Tank &...
  • Page 9: Technical Specifications

    POWER INPUT BREAKER 15-W-1 wireless receiver 16-Control panel 17-Foot 18-Power cord 19-W-1 wireless transmitter Technical Specifications Model W-515 W-530 Power Supply 100~240V AC 50/60 Hz 100~240V AC 50/60 Hz Power Consumption 1,500 W 2,450 W Output Volume 20,000 cu.ft/min (566 m³/min) 40,000cu.ft/min (1132 m³/min)
  • Page 10: Cleaning And Storage

    Performance Note All fog machines develop condensation around the output nozzle. Because this may result in some moisture accumulation on the surface below the output nozzle, consider this condensation when installing your unit. All fog machines may sputter small amounts of fog occasionally during operation and for a minute or so after being turned off.
  • Page 11: Warranty

    Warranty Warranty shall be valid only if the product is purchased from Antari's authorized distributors or dealers. For warranty service, send the product only to an authorized distributor or dealer. All warranties are void if the product has been modified in any manner; if the product has been repaired or serviced by unauthorized personnel;...
