Merging Pyramix User Manual page 71

Properties...

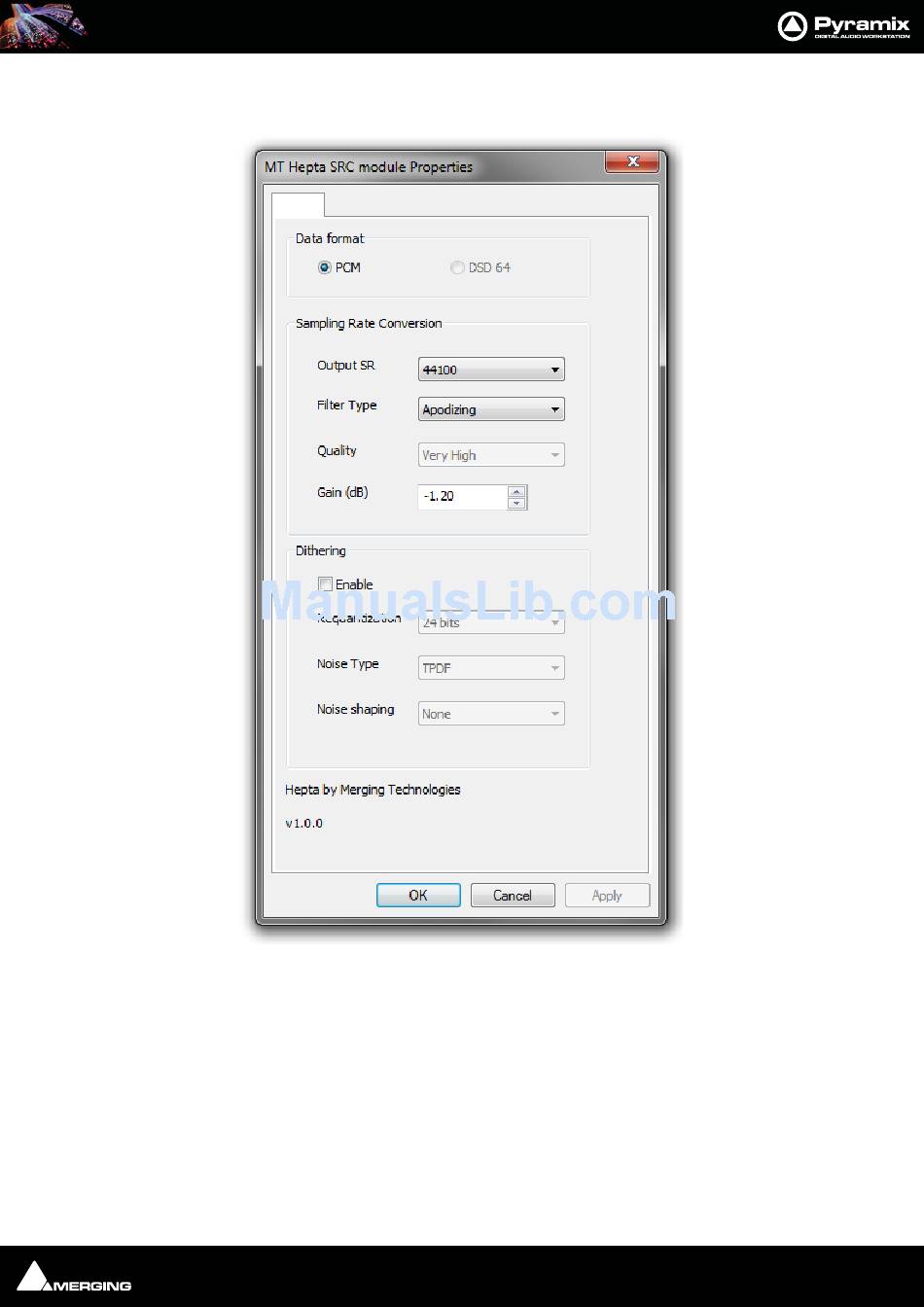

Selecting Properties... opens the HeptaCon SRC module Properties dialog:
Data Format
The radio buttons offer the choice of PCM or DSD 64. (The latter is only available for DSD to DXD conversion.)
Sampling Rate Conversion
Output SR
Filter Type
• Linear Phase features constant group delay, thanks to the linear phase, and has a symmetric impulse
response, but also longer rings.
• Minimum Phase features an asymmetric impulse response with minimum phase response
Media Management & Libraries : Media Management Tab Window
MT Hepta SRC module Properties dialog
Select the Output Sampling Rate from the drop down list.
Offers the choice of Lin. Phase, Min Phase or Apodising.
4 - 71
